dsphdl.FIRRateConverter

Upsample, filter, and downsample input signal

expand all in page

Description

The dsphdl.FIRRateConverter System object™ upsamples, filters, and downsamples input signals. It is optimized for HDL code generation and operates on one sample of each channel at a time. The object implements an efficient polyphase architecture to avoid unnecessary arithmetic operations and high intermediate sample rates.

High level rate converter architecture

The object upsamples by an integer factor of L, applies an FIR filter, and downsamples by an integer factor of M.

To resample and filter input data:

  1. Create the dsphdl.FIRRateConverter object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Note

You can also generate HDL code for this hardware-optimized algorithm, without creating a MATLAB® script, by using the DSP HDL IP Designer app. The app provides the same interface and configuration options as the System object.

Creation

Syntax

HDLFIRRC = dsphdl.FIRRateConverter
HDLFIRRC = dsphdl.FIRRateConverter(L,M,num)
HDLFIRRC = dsphdl.FIRRateConverter(___,Name=Value)

Description

HDLFIRRC = dsphdl.FIRRateConverter returns a System object, HDLFIRRC, that resamples each channel of the input. The object upsamples by an integer factor of L, applies an FIR filter, and downsamples by an integer factor of M. The default L/M is 3/2.

HDLFIRRC = dsphdl.FIRRateConverter(L,M,num) sets the InterpolationFactor property to L, the DecimationFactor property to M, and the Numerator property to num.

example

HDLFIRRC = dsphdl.FIRRateConverter(___,Name=Value) sets properties using one or more name-value arguments. For example:

HDLFIRRC = dsphdl.FIRRateConverter(L,M,Num,ReadyPort=true);

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Upsampling factor, L, specified as a positive integer.

Downsampling factor, M, specified as a positive integer scalar.

FIR filter coefficients, specified as a vector in descending powers of z-1.

also specify the coefficients as a workspace variable or as a call to the Signal Processing Toolbox™ filter design functions, such as fir1. Design a lowpass filter with normalized cutoff frequency no greater than min(1/L,1/M). The object initializes internal filter states to zero.

When the input data type is a floating-point type, the object casts the coefficients to the same data type as the input. When the input data type is an integer type or a fixed-point type, set the data type of the coefficients by using the CoefficientsDataType property.

Enable ready output argument of the object. When enabled, the object returns a logical scalar value, ready, when you call the object. When ready is 1 (true), the object is ready for a new input sample the next time you call it.

Rounding mode used for fixed-point operations. This property does not apply when the input is single or double type. 'Simplest' mode is not supported.

Overflow mode used for fixed-point operations. This property does not apply when the input is single or double type.

Data type of the FIR filter coefficients, specified as a numerictype(s,wl,fl) object with signedness, word length, and fractional length properties. When the input is a fixed-point or integer type, the object casts the filter coefficients using the rule or data type in this property. The quantization rounds to the nearest representable value and saturates on overflow. When the input data type is floating point, the object ignores this property and all internal arithmetic uses the same data type as the input.

Data type of the output data samples, specified as 'Same word length as input', 'Full precision', or as a numerictype(s,wl,fl) object with signedness, word length, and fractional length properties. When the input is a fixed-point or integer type, the object casts the output of the filter using the rule or data type in this property. The quantization uses the settings of the RoundingMethod and OverflowAction properties. When the input data type is floating point, the object ignores this parameter and returns output in the same data type as the input.

Usage

Syntax

[dataOut,validOut] = HDLFIRRC(dataIn,validIn)
[dataOut,validOut,ready] = HDLFIRRC(dataIn,validIn)

Description

[dataOut,validOut] = HDLFIRRC(dataIn,validIn) resamples dataIn according to the InterpolationFactor (L) and DecimationFactor (M) properties. To avoid dropped samples when using this syntax, apply new valid input samples, with validIn set to true, only every ceil(L/M) calls to the object. The object sets validOut to true when dataOut is a new valid sample.

example

[dataOut,validOut,ready] = HDLFIRRC(dataIn,validIn) resamples the input data and returns ready to indicate whether the object can accept a new sample on the next call.

This syntax applies when you set the ReadyPort property to true. For example:

HDLFIRRC = dsphdl.FIRRateConverter(...,ReadyPort=true);
...
[dataOut,validOut,ready] = rateConverter(dataIn,validIn);

example

Input Arguments

expand all

Data input, specified as a scalar, or as a row vector where each element represents an independent channel.

The software supports double and single data types for simulation, but not for HDL code generation.

Data Types: fi | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | single | double
Complex Number Support: Yes

Control signal that indicates if the input data is valid. When validIn is 1 (true), the object captures the values from the dataIn argument. When validIn is 0 (false), the object ignores the values from the dataIn argument.

You can apply a valid data sample every ceil(L/M) calls to the object. You can use the optional ready output signal to indicate when the object can accept a new sample.

Data Types: logical

Output Arguments

expand all

Resampled and filtered data sample, returned as a scalar, or as a vector in which each element represents an independent channel.

The software supports double and single data types for simulation, but not for HDL code generation.

Data Types: fi | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | single | double
Complex Number Support: Yes

Control signal that indicates if the output data is valid. When validOut is 1 (true), the object returns valid data from the dataOut argument. When validOut is 0 (false), values from the dataOut argument are not valid.

Data Types: logical

Control signal that indicates that the object is ready for new input data sample on the next cycle. When ready is 1 (true), you can specify the data and valid inputs for the next time step. When ready is 0 (false), the object ignores any input data in the next time step.

Dependencies

To enable this argument, set the ReadyPort property to true.

Data Types: logical

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

collapse all

Open Live Script

Convert a signal from 48 kHz to 32 kHz by using the dsphdl.FIRRateConverter System object™.

Define the sample rate and length of the input signal, and a 2 kHz cosine waveform. Set validIn = true for every sample.

Fs = 48e3;
Ns = 100;
t = (0:Ns-1).'/Fs;
dataIn = cos(2*pi*2e3*t);
validIn = true(Ns,1);

Preallocate dataOut and validOut signals for faster simulation.

dataOut = zeros(Ns,1);
validOut = false(Ns,1);

Create the System object. Configure it to perform rate conversion by a factor of 2/3, using an equiripple filter.

Numerator = firpm(70,[0 0.25 0.32 1],[1 1 0 0]);
firrc = dsphdl.FIRRateConverter(2,3,Numerator);

Call the System object to perform the rate conversion and obtain each output sample.

for k = 1:Ns
    [dataOut(k),validOut(k)] = firrc(dataIn(k),validIn(k));
end

Because the input sample rate is higher than the output sample rate, not every member of dataOut is valid. Use validOut to extract the valid samples from dataOut.

y = dataOut(validOut);

View the input and output signals with the Logic Analyzer.

la = dsp.LogicAnalyzer('NumInputPorts',4,'SampleTime',1/Fs,'TimeSpan',Ns/Fs);
modifyDisplayChannel(la,1,'Name','dataIn','Format','Analog','Height',8)
modifyDisplayChannel(la,2,'Name','validIn')
modifyDisplayChannel(la,3,'Name','dataOut','Format','Analog','Height',8)
modifyDisplayChannel(la,4,'Name','validOut')
la(dataIn,validIn,dataOut,validOut)

Open Live Script

Convert a signal from 40 MHz to 100 MHz by using the dsphdl.FIRRateConverter System object™. To avoid overrunning the object as the signal is upsampled, control the input rate manually.

Define the sample rate and length of the input signal, and a fixed-point cosine waveform.

Fs = 40e6;
Ns = 50;
t = (0:Ns-1).'/Fs;
x = fi(cos(2*pi*1.2e6*t),1,16,14);

Define the rate conversion parameters. Use an interpolation factor of 5 and a decimation factor of 2. Calculate how often the object can accept a new input sample.

L = 5;
M = 2;
stepsPerInput = ceil(L/M);
numSteps = stepsPerInput*Ns;

Generate dataIn and validIn based on how often the object can accept a new sample.

dataIn = zeros(numSteps,1,'like',x);
dataIn(1:stepsPerInput:end) = x;
validIn = false(numSteps,1);
validIn(1:stepsPerInput:end) = true;

Create the System object. Configure it to perform rate conversion using the specified factors and an equiripple FIR filter.

Numerator = firpm(70,[0 0.15 0.25 1],[1 1 0 0]);
rateConverter = dsphdl.FIRRateConverter(L,M,Numerator);

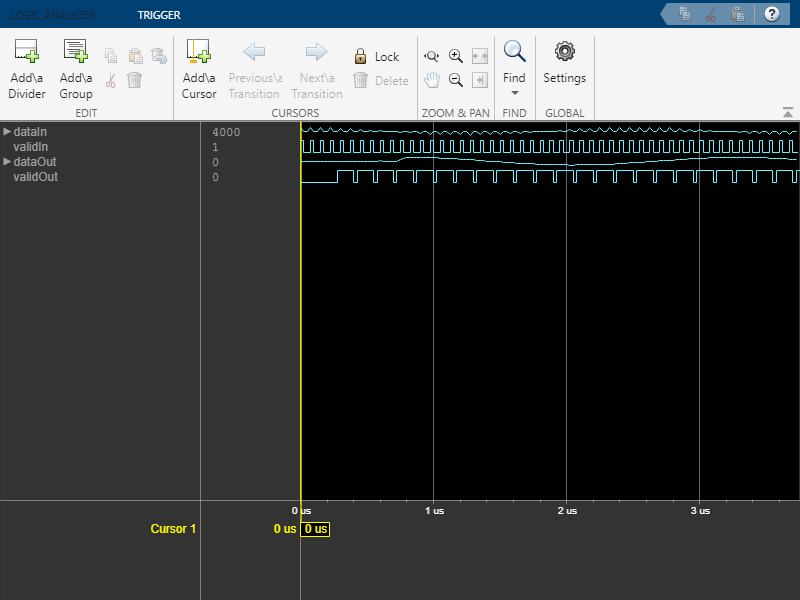

Create a Logic Analyzer to capture and view the input and output signals.

la = dsp.LogicAnalyzer('NumInputPorts',4,'SampleTime',1/Fs,'TimeSpan',numSteps/Fs);
modifyDisplayChannel(la,1,'Name','dataIn','Format','Analog','Height',8)
modifyDisplayChannel(la,2,'Name','validIn')
modifyDisplayChannel(la,3,'Name','dataOut','Format','Analog','Height',8)
modifyDisplayChannel(la,4,'Name','validOut')

Call the System object to perform the rate conversion and obtain each output sample. Call the Logic Analyzer to add each sample to the waveform display.

for k = 1:numSteps
    [dataOut,validOut] = rateConverter(dataIn(k),validIn(k));
    la(dataIn(k),validIn(k),dataOut,validOut)
end

Open Live Script

Convert a signal from 40 MHz to 100 MHz by using the dsphdl.FIRRateConverter System object™. Use the optional ready output signal to avoid overrunning the object as the data is upsampled. The ready signal indicates the object can accept a new data sample on the next call to the object.

Define the sample rate and length of the input signal, and a fixed-point cosine waveform. Create a SignalSource object to provide data samples on demand.

Fs = 40e6;
Ns = 50;
t = (0:Ns-1).'/Fs;
x = fi(cos(2*pi*1.2e6*t),1,16,14);
inputSource = dsp.SignalSource(x);

Define the rate conversion parameters. Use an interpolation factor of 5 and a decimation factor of 2. Determine the number of calls to the object needed to convert Ns samples.

L = 5;
M = 2;
numSteps = floor(Ns*L/M);

Create the FIR rate converter System object. Configure it to perform rate conversion using the specified factors and an equiripple FIR filter. Enable the optional ready output port.

Numerator = firpm(70,[0 0.15 0.25 1],[1 1 0 0]);
rateConverter = dsphdl.FIRRateConverter(L,M,Numerator,'ReadyPort',true);

Create a Logic Analyzer to capture and view the input and output signals.

la = dsp.LogicAnalyzer('NumInputPorts',5,'SampleTime',1/Fs,'TimeSpan',numSteps/Fs);
modifyDisplayChannel(la,1,'Name','dataIn','Format','Analog','Height',8)
modifyDisplayChannel(la,2,'Name','validIn')
modifyDisplayChannel(la,3,'Name','dataOut','Format','Analog','Height',8)
modifyDisplayChannel(la,4,'Name','validOut')
modifyDisplayChannel(la,5,'Name','ready')

Initialize the ready signal. The object is always ready for input data on the first call.

ready = true;

Call the System object to perform the rate conversion and obtain each output sample. Apply a new input sample when the object indicates it is ready. Otherwise, set validIn to false.

for k = 1:numSteps
    if ready
        dataIn = inputSource();
    end
    validIn = ready;
    [dataOut,validOut,ready] = rateConverter(dataIn,validIn);
    la(dataIn,validIn,dataOut,validOut,ready)
end

Open Script

Create a rate conversion function targeted for HDL code generation, and a test bench to exercise it. The function converts a signal from 40 MHz to 100 MHz. To avoid overrunning the object, the test bench manually controls the input rate.

Define the sample rate and length of the input signal, and a fixed-point cosine waveform.

Fs = 40e6;
Ns = 50;
t = (0:Ns-1).'/Fs;
x = fi(cos(2*pi*1.2e6*t), 1, 16, 14);

Define the rate conversion parameters. Use an interpolation factor of 5 and a decimation factor of 2. Calculate how often the object can accept a new data sample.

L = 5;
M = 2;
stepsPerInput = ceil(L/M);
numSteps = stepsPerInput*Ns;

Generate dataIn and validIn based on how often the object can accept a new sample.

dataIn = zeros(numSteps,1,'like',x);
dataIn(1:stepsPerInput:end) = x;
validIn = false(numSteps,1);
validIn(1:stepsPerInput:end) = true;

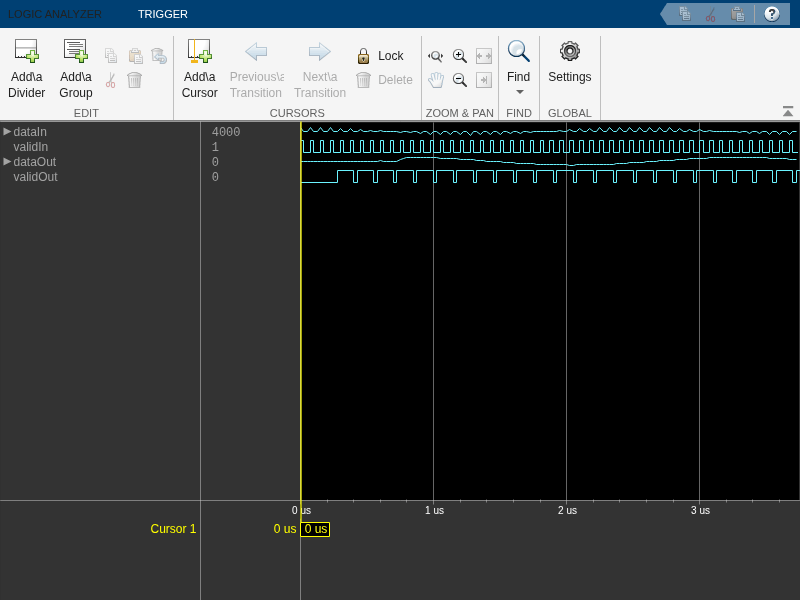

Create a Logic Analyzer to capture and view the input and output signals.

la = dsp.LogicAnalyzer(NumInputPorts=4,SampleTime=1/Fs,TimeSpan=numSteps/Fs);
modifyDisplayChannel(la,1,'Name','dataIn','Format','Analog','Height',8)
modifyDisplayChannel(la,2,'Name','validIn')
modifyDisplayChannel(la,3,'Name','dataOut','Format','Analog','Height',8)
modifyDisplayChannel(la,4,'Name','validOut')

Write a function that creates and calls the System object.

function [dataOut,validOut] = HDLFIRRC5_2(dataIn,validIn)
%HDLFIRRC5_2
% Processes one sample of data using the dsphdl.FIRRateConverter System
% object. dataIn is a fixed-point scalar value. validIn is a logical scalar value.
% You can generate HDL code from this function.

  persistent firrc5_2;
  if isempty(firrc5_2)
    Numerator = firpm(70,[0,.15,.25,1],[1,1,0,0]);
    firrc5_2 = dsphdl.FIRRateConverter(5,2,Numerator);
  end
  [dataOut,validOut] = firrc5_2(dataIn,validIn);
end
% Copyright 2012-2023 The MathWorks, Inc.

Resample the signal by calling the function for each data sample.

for k = 1:numSteps
    [dataOut,validOut] = HDLFIRRC5_2(dataIn(k),validIn(k));
    la(dataIn(k),validIn(k),dataOut,validOut)
end

Algorithms

expand all

This object implements the algorithms described on the FIR Rate Converter block reference page.

Extended Capabilities

Version History

Introduced in R2015b
