rotateZ

Rotate shape about z-axis by angle

Syntax

rotateZ(shape,angle)

c = rotateZ(shape,angle)

Description

rotateZ(shape,angle) rotates the shape about z-axis by an angle and plots the resultant shape.

c = rotateZ(shape,angle) rotates the shape about z-axis by an angle and returns a shape object.

Examples

Create and Rotate Rectangle Using Specified Properties

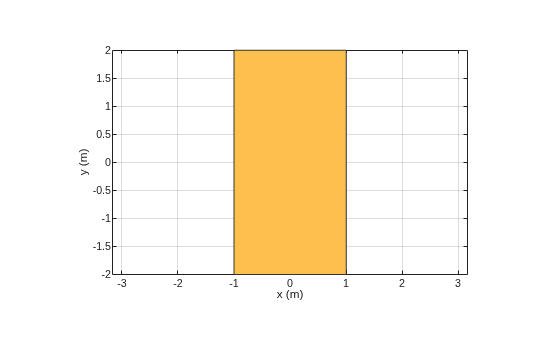

Create and view a rectangle with a length of 2 m and a width of 4 m.

r2 = antenna.Rectangle(Length=2,Width=4);
show(r2)
axis equal

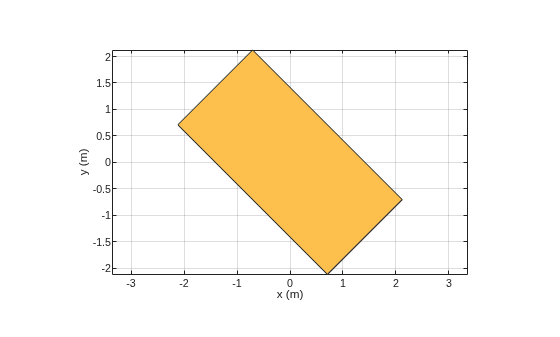

Rotate the rectangle.

rotateZ(r2,45);

show(r2)

Input Arguments

shape — Shape to rotate

shape object

Shape to rotate, specified as one of the following objects:

• 2-D shapes without material properties:

  • antenna.Circle

  • antenna.Ellipse

  • antenna.Polygon

  • antenna.Rectangle

  • antenna.Triangle

• 2-D and 3-D shapes with material properties:

  • shape.Circle

  • shape.Ellipse

  • shape.Rectangle

  • shape.Polygon

  • shape.Box

  • shape.OpenBox

  • shape.Cylinder

  • shape.OpenCylinder

  • shape.Sphere

  • shape.Custom3D

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

angle — Angle of rotation

scalar

Angle of rotation, specified as a scalar in degrees.

Example: 45

Data Types: double

Output Arguments

c — Resultant shape

shape object

Resultant shape obtained after the rotation operation on the input shape, returned as a shape object.

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

Version History

Introduced in R2017a
