scale

Change size of shape by fixed factor

Syntax

scale(shape,factor)

c = scale(shape,factor)

Description

scale(shape,factor) scales the shape by a constant scaling factor and plots the resultant shape.

c = scale(shape,factor) scales the shape by a constant scaling factor and returns a shape object.

Examples

Scale Rectangle Shape

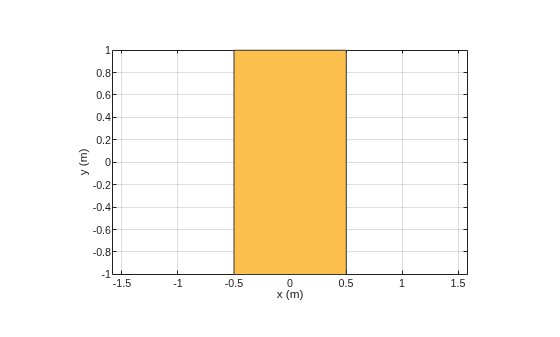

Create a rectangular shape.

r  = antenna.Rectangle;
show(r)
axis equal

Shrink the rectangle by 50%.

scale(r,0.5);

Input Arguments

shape — Shape to scale

shape object

Shape to scale, specified as one of the following objects:

• 2-D shapes without material properties:

  • antenna.Circle

  • antenna.Ellipse

  • antenna.Polygon

  • antenna.Rectangle

  • antenna.Triangle

• 2-D and 3-D shapes with material properties:

  • shape.Circle

  • shape.Ellipse

  • shape.Rectangle

  • shape.Polygon

  • shape.Box

  • shape.OpenBox

  • shape.Cylinder

  • shape.OpenCylinder

  • shape.Sphere

  • shape.Custom3D

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

factor — Constant factor to change shape size

scalar

Constant factor to change shape size, specified as a scalar.

Example: 2

Data Types: double

Output Arguments

c — Resultant shape

shape object

Resultant shape obtained after the scaling operation on the input shape, returned as a shape object.

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

Version History

Introduced in R2017a
