ダイポール アンテナ
メアンダ、折返しダイポール、ボウタイ、ブレード、クロス、サイクロイド、円筒形ダイポール、ロンビック、バイカッド
アプリ
| アンテナ デザイナー | アンテナの設計、可視化、解析 |
| アンテナ アレイ デザイナー | Design, visualize, and analyze arrays |
オブジェクト
bowtieRounded | Create planar bowtie dipole antenna with rounded edges |
bowtieTriangular | Create planar bowtie dipole antenna |
biquad | Create biquad or double-biquad antenna |
dipole | 通常または AI ベースのストリップ ダイポール アンテナを作成する |
dipoleBlade | Create blade dipole antenna |
dipoleCrossed | Crossed dipole or turnstile antenna |
dipoleCycloid | Create cycloid dipole antenna |
dipoleCylindrical | Create cylindrical dipole antenna (R2021a 以降) |
dipoleFolded | Create folded dipole antenna |
dipoleHelix | Create regular or AI-based helical dipole antenna |
dipoleHelixMultifilar | Create balanced bifilar or quadrafilar dipole helix antenna without circular ground plane |
dipoleJ | Create J-dipole antenna |
dipoleMeander | Create meander dipole antenna |
dipoleVee | Create V-dipole antenna |
rhombic | Create a rhombic antenna |
sectorInvertedAmos | Create inverted Amos sector antenna |
wireStack | Create single or multi-feed wire antenna |
関数
show | Display antenna, array structures, shapes, or platform |
info | Display information about antenna, array, or platform |
cylinder2strip | 円柱の等価幅の近似 |
strip2cylinder | Calculate equivalent radius approximation for strip |
design | Create antenna, array, or AI-based antenna resonating at specified frequency |
注目の例
Crossed-Dipole (Turnstile) Antenna and Array
The turnstile antenna invented in 1936 by Brown [1] is a valuable tool to create a circularly-polarized pattern (RHCP or LHCP). It is commonly used in mobile communications.
Modeling Wire Antenna and Arrays
Model V-dipole wire antennas and arrays using the wire basis function wireStack. This workflow eliminates the wire to strip approximation or the strip basis function you need to perform when converting strip structures to wire antennas. You can also use this workflow to model all the antenna elements from the dipole and loop antenna catalog families.
Wideband Blade Dipole Antenna and Array
The analysis of a blade dipole as a single element and in a 2-by-2 array with emphasis on its wideband behavior.
Analysis of Biquad Yagi for Wi-Fi Applications
BiquaYagi for Wi-FI applications.

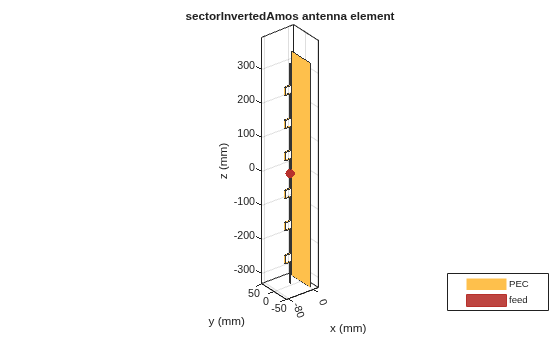

Sector Antenna for 2.4GHz Wi-Fi
Design an inverted Amos sector antenna for Wi-Fi application.
