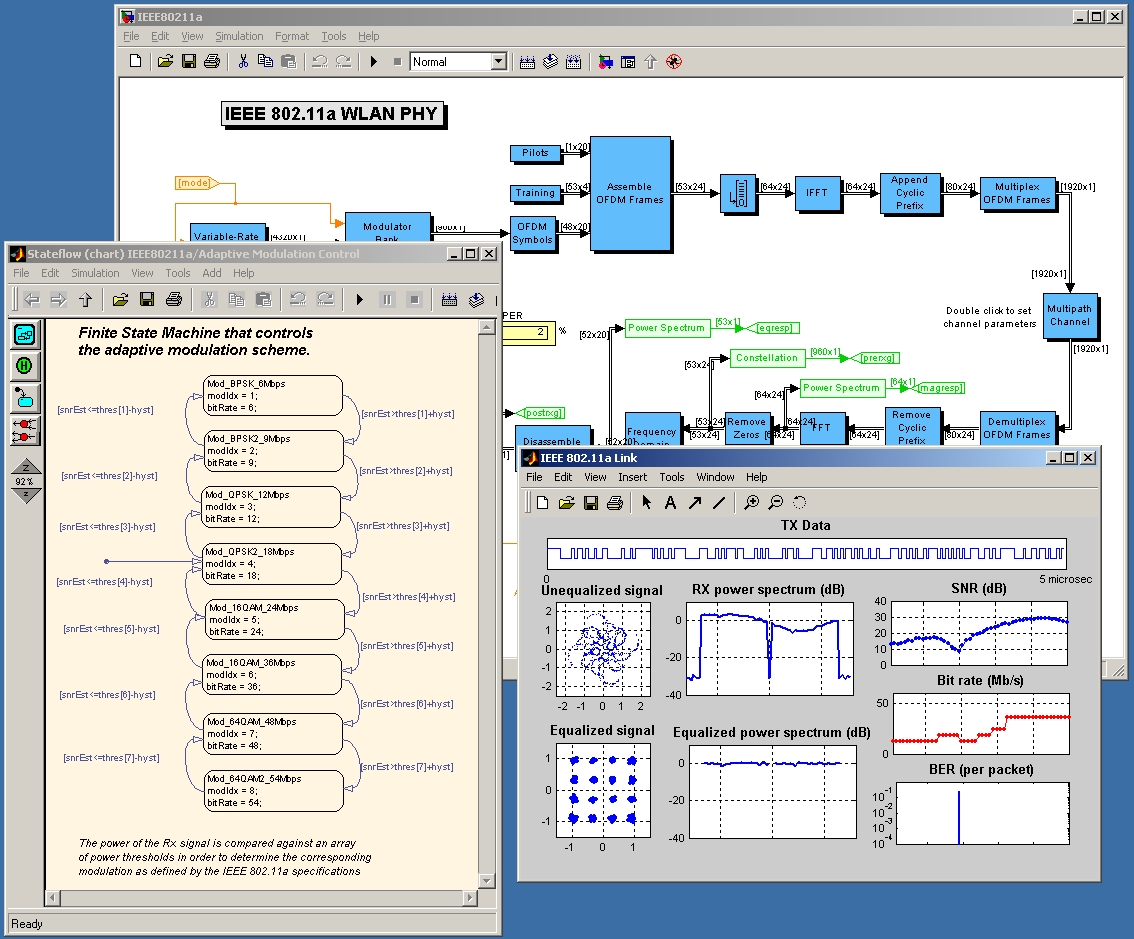

IEEE 802.11a WLAN model

version 1.0.0.1 (196 KB) by Martin Clark
IEEE 802.11a WLAN physical layer model, with demonstration of adaptive modulation and coding.

54.2K Downloads

Updated 01 Sep 2016

View License

* End-to-end 802.11a physical layer
* All mandatory and optional data rates: 6, 9, 12, 18, 24, 36, 48, and 54 Mb/s
* BPSK, QPSK, 16-QAM, 64-QAM modulations
* Forward error correction coding (convolutional; code rates 1/2, 2/3, 3/4)
* OFDM transmission: 52 subcarriers, 4 pilots, 64-pt FFTs, circular prefix
* Data interleaving
* PLCP preamble (modeled as 2x2 long training sequences)
* Receiver equalization
* Viterbi decoding
* Data rates selectable on-the-fly
* Adaptive modulation demo over dispersive multipath fading channel
Instructions:
1. Unzip to a new folder.

2(a). If you are running under R13 (MATLAB 6.5), change the MATLAB current directory to the subdirectory R13, then open the 'IEEE80211a_NoSF' mdl file. (If you have Stateflow, you can also run the enhanced version, IEEE80211a.mdl.)

2(b). If you are running under R13SP1 (MATLAB 6.5.1), change the MATLAB current directory to the subdirectory R13SP1, then open the 'IEEE80211a' mdl file.

Cite As

Martin Clark (2021). IEEE 802.11a WLAN model (https://www.mathworks.com/matlabcentral/fileexchange/3540-ieee-802-11a-wlan-model), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R13
Compatible with any release
Platform Compatibility
Windows macOS Linux
