OFDM Equalizer
Libraries:
Wireless HDL Toolbox /
Modulation
Description
The OFDM Equalizer block equalizes the OFDM data using channel estimates. The block supports zero-forcing (ZF) and minimum mean square error (MMSE) algorithms for channel equalization in the frequency domain. The block accepts data symbols, estimated channel (hEst), and the estimated channel length per symbol (hEstLen) data ports and valid and loadhEst control ports. The block outputs an equalized data port and a valid control port.
You can use this block to equalize channel effects in different communications standards, such as long term evolution (LTE) [1], 5G new radio (NR) standard TS 38.212 [2], and wireless local area network (WLAN) [3].
The block provides an interface and architecture suitable for HDL code generation and hardware deployment.
Examples

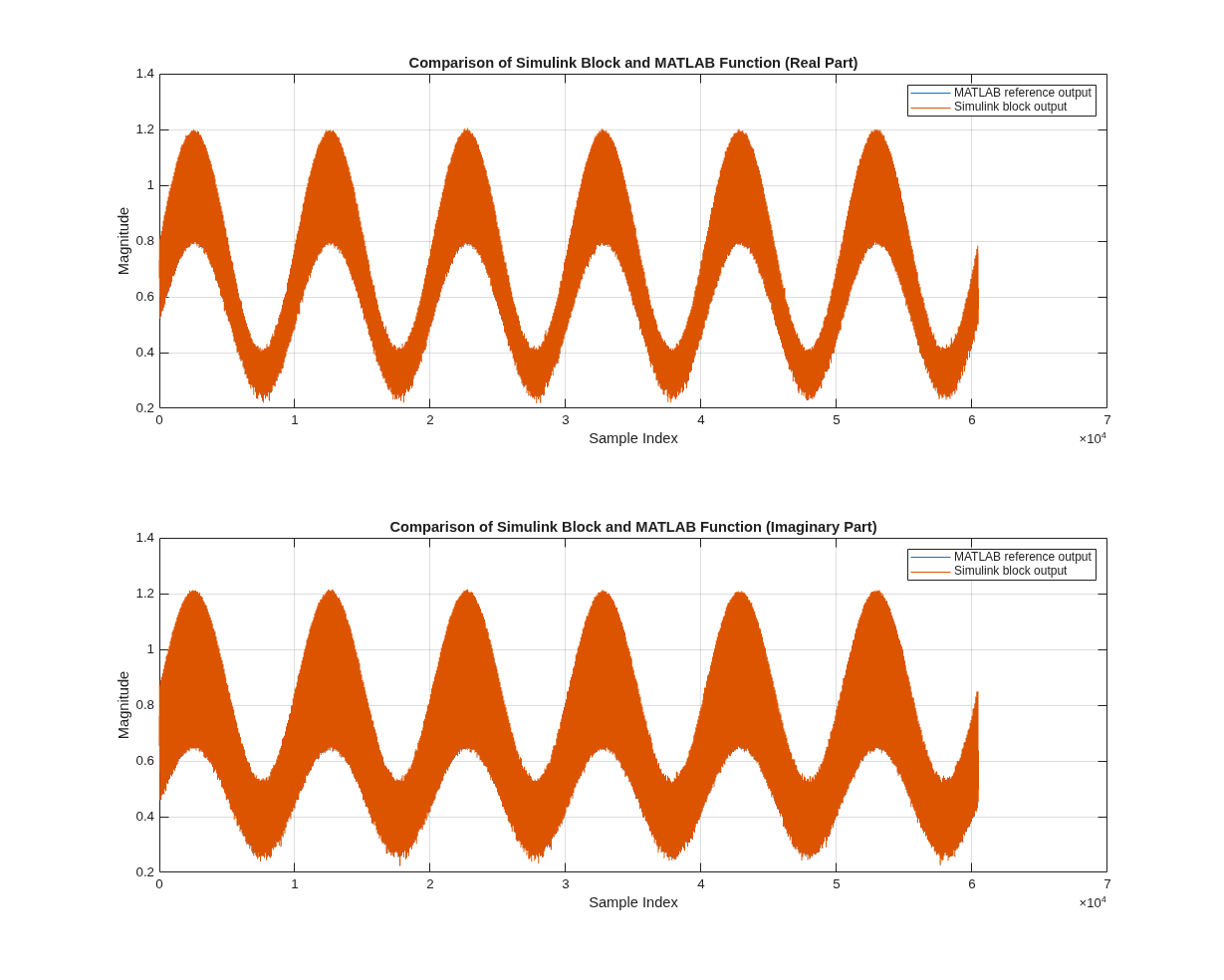

Equalize OFDM Data Using Channel Estimates
Equalize OFDM data subcarriers using channel estimates.
Ports
Input
data — OFDM data
scalar
OFDM data, specified as a complex-valued scalar.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
Data Types: single
| double
| int8
| int16
| int32
| signed fixed point
hEst — Channel estimated data
scalar
Channel estimated data, specified as a complex-valued scalar.
The input data type must be
fixdt(1,k,m)
, where
k is less than or equal to 30, and m is less
than k.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
Data Types: single
| double
| int8
| int16
| fixed point
valid — Control to indicate valid input data
scalar
Control to indicate valid input data, specified as a Boolean scalar.
This port is a control signal that indicates when the input
data and hEst port values are valid. When
this value is 1
, the block captures the values from the
data and hEst input ports. When this value
is 0
, the block ignores the values on the data
and hEst input ports.
Data Types: Boolean
hEstLen — Length of estimated channel per symbol
scalar
Length of the estimated channel per symbol, specified as a scalar in the range from 2 to 65,536.
To support the minimum number of subcarriers per symbol, this data type must be
fixdt(0,k,0)
, where k is
greater than or equal to 2.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
Data Types: single
| double
| int8
| int16
| int32
| fixed point
loadhEst — Channel estimates control
scalar
Channel estimates control, specified as a Boolean scalar.
When this value is 1
, the block loads the channel estimates
until the length of the channel estimate specified by the hEstLen
input port. hEstLen is sampled at
loadhEst.
When this value is 0
, and the input is 1
,
the block performs equalization with the previously sampled
hEstLen input and the stored hEst input
values. If the previously sampled hEstLen value is not available,
the block performs equalization with the instantaneous inputs
data, hEst, and nVar.
For more information, see Algorithms.
Data Types: Boolean
nVar — Noise variance
scalar
Noise variance, specified as a scalar.
When the input valid is 1
, the block
samples the nVar port. This value must be of data type
fixdt(0,k,m)
, where
k is less than or equal to 16, and m is less
than or equal to k.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
Dependencies
To enable this port, set the Equalization method parameter
to MMSE
.
Data Types: single
| double
| uint8
| uint16
| fixed point
reset — Reset internal states
scalar
Reset internal states of the block to start with new data, specified as a scalar.
Dependencies
To enable this port, select the Enable reset input port parameter.
Data Types: Boolean
Output
data — Complex output data
scalar
Complex output data, returned as a scalar. The output data type is the same as the input data type.
Data Types: single
| double
| int8
| int16
| int32
| signed fixed point
valid — Indicates valid output data
scalar
Indicates valid output data, returned as a Boolean scalar.
This port is a control signal that indicates when the data
output port is valid. When the data samples are available on the
data output port, the block sets this output
valid value to 1
.
Data Types: Boolean
Parameters
Equalization method — Equalization method
ZF
(default) | MMSE
Select the equalization method. For more information about the equalization methods, see Algorithms.
Maximum length of channel estimate per symbol — Maximum length of channel estimate per symbol
52
(default) | integer in the range from 2 to 65, 536
Specify the maximum length of the channel estimate per symbol.
To support the minimum number of subcarriers per symbol, which is 2, the data type
of the hEstLen input must be
fixdt(0,k,0)
, where k is
greater than or equal to 2.
Enable reset input port — Reset signal
off
(default) | on
Select this parameter to enable the reset input port.
Algorithms
The OFDM Equalizer block supports ZF and MMSE algorithms for channel equalization in the frequency domain. The block stores the estimated channel information to equalize the OFDM symbols and generates the equalized output using these algorithms.
The OFDM Equalizer block operation sequence is implemented using these subsystem blocks: Sample and control information, Store and retrieve channel estimates, and ZF/MMSE equalization. This figure shows these blocks.
The Sample and control information block samples and validates the
hEstLen input based on the loadhEst input signal,
validates the hEst and nVar inputs based on the
validIn input signal, and outputs the sampled hEstOut
output, nVarOut output, and the control information signals
that are used in storing and retrieving channel information. The Store and retrieve
channel estimates block stores and retrieves the channel using RAM and switches. The
ZF/MMSE Equalization block performs ZF or MMSE equalization using these
equations. The nVar input port is available when you set the
Equalization method parameter to
MMSE
.
ZF Algorithm:
MMSE Algorithm:
In these equations,
dataIn is the demodulated output provided as an input to the block
hEst is the estimated channel
hEst* is the Hermitian of the estimated channel
dataOut is the equalized output
nVar is the noise variance
p is equal to 0, 1, …. NSPS, where NSPS is the number of subcarriers per symbol.
This figure shows a sample block operation when you set the Equalization
method parameter to ZF
.
In this figure, you can see three symbols (Symbol 1, Symbol 2, and Symbol 3) are input to
the dataIn port. When the validIn input is
1
(high) and the loadHest input is
1
(high), the block samples the hEstlLen input
value, which is 72
in this example. Based on the
hEstlLen value, for Symbol 1, the block provides the equalized output
for the instantaneous hEst input values. When the
loadHest value changes to 0
(low), the block stores
the hEst values and provides the equalized output for Symbol 2 based on
the stored hEst values. The hEstLen value remains
the same until the loadHest changes to 0
(low).
Similarly, for Symbol 3, the block provides the equalized output for the instantaneous
hEst values based on the hEstlLen value, which is
52
in this example.
Latency
This figure shows a sample output of the OFDM Equalizer block when you
set the Equalization method parameter to MMSE
and
the Maximum length of channel estimate per symbol parameter to
52
. The latency of the block is 92 clock cycles.
Performance
The performance of the synthesized HDL code varies with your target and synthesis options.
This table shows the resource and performance data synthesis results of the block when
you set the Equalization method parameter to MMSE
,
the Maximum length of channel estimate per symbol parameter to
52
, and the hEstLen port to 20
.
The input data is of data type fixdt(1,28,16)
. The generated HDL is
targeted to the AMD®
Zynq®- 7000 ZC706 evaluation board. The design achieves a clock frequency of 244.6
MHz.
Resource | Number Used |
---|---|
Slice LUTs | 7380 |
Slice Registers | 8063 |
DSPs | 24 |
Block RAMs | 0 |
References
[1] 3GPP TS 36.211 version 14.2.0 Release 14. "Physical channels and modulation." LTE - Evolved Universal Terrestrial Radio Access (E-UTRA).
[2] 3GPP TS 38.212. “NR; Multiplexing and Channel Coding.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
[3] "Wireless LAN Medium Access Control (MAC) and Physical layer (PHY) Specifications." IEEE Std 802.11 – 2012.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink® accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline | Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is
|
InputPipeline | Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
OutputPipeline | Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
Version History
Introduced in R2021a
See Also
Blocks
Functions
nrEqualizeMMSE
(5G Toolbox) |lteEqualizeMMSE
(LTE Toolbox) |lteEqualizeZF
(LTE Toolbox)
