This example shows how to implement the game of Tetris by using a Stateflow® chart. This model is a redesigned version of the classic Stateflow demo
sf_tetris. The new design incorporates these programming paradigms:
Parallel decomposition to separate pre- and post-processing tasks from the main game control logic.
State hierarchy and subcharts to provide semantic abstractions that simplify the design of the chart.
Change detection operators to query for input from the keyboard.

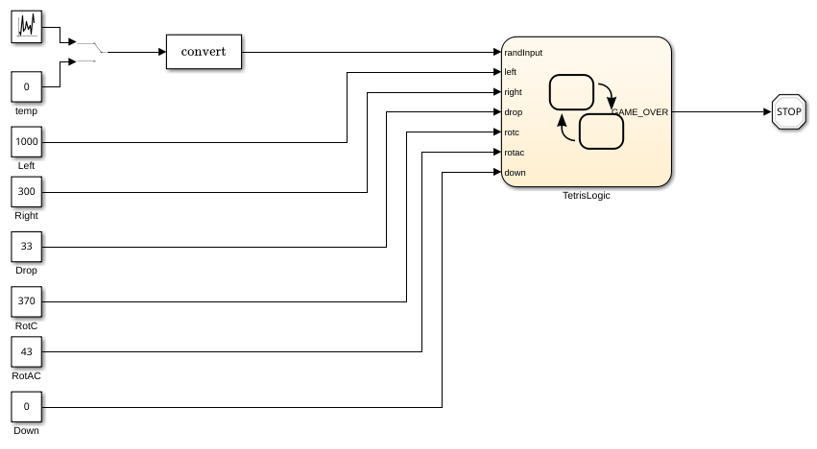

The chart TetrisLogic implements the logic behind the game. The chart consists of three parallel states, which execute in this order:

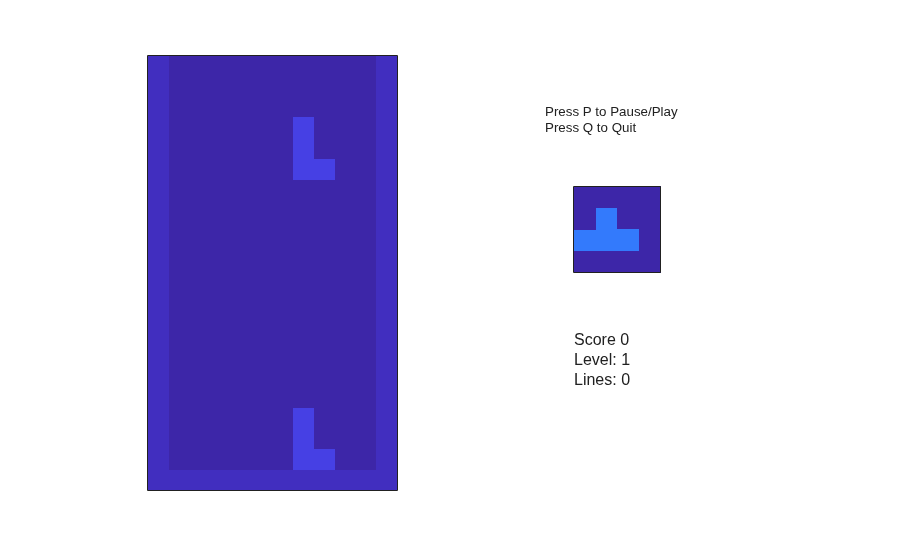

WaitingArea performs preprocessing tasks such as randomly generating the next tetronimo (a shape consisting of four squares). During simulation, the smaller square on the right of the game UI displays this tetronimo.
MainArea implements the main control logic for the game. To represent the playing arena, this state uses a 21-by-12 array
arena. At each simulation step, the chart updates the array based on the state of the game and the input from the player.
Draw performs post-processing tasks such as calling the MATLAB® script
sf_tetris_gui. This script displays the arena as an image and captures keystrokes from the player.

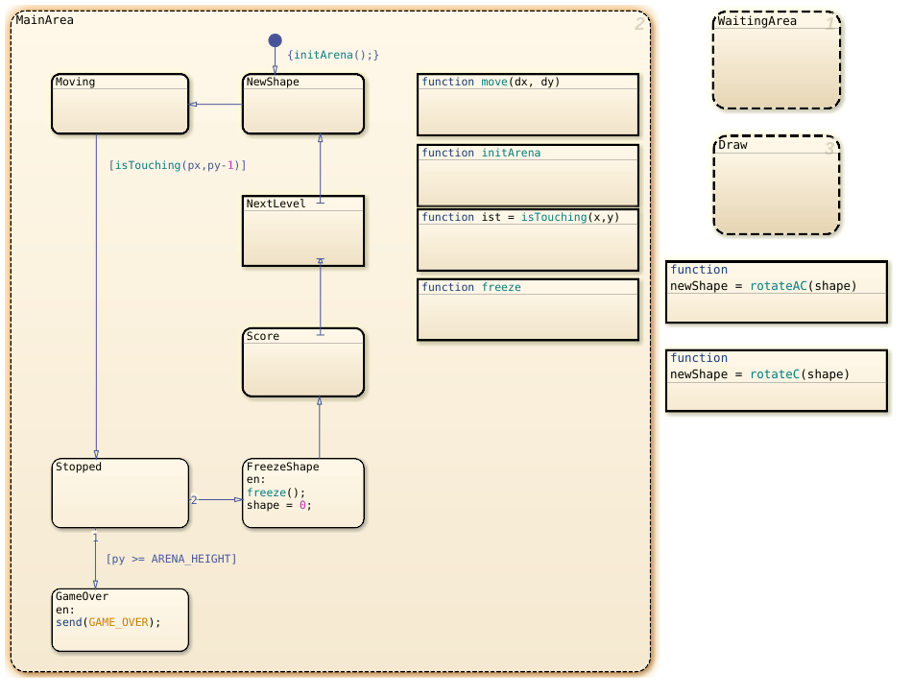

By using state hierarchy and subcharts, you can graphically abstract the game logic, present a high-level overview of the flow of the game, and hide the inner complexity of each stage of the game. For example, each substate of the parallel state
MainArea represents a separate stage in the flow of the game.
The game starts by generating a new tetronimo (substate
The tetronimo moves down or sideways, depending on the input from the player (substate
When the tetronimo touches the bottom of the arena or an earlier tetronimo below it, the tetronimo stops moving (substate
If the tetronimo stops at too high a point on the arena, the game ends (substate
GameOver). Otherwise, the chart freezes the tetronimo (substate
FreezeShape), adjusts the score (substate
Score), advances to the next level if necessary (substate
NextLevel), and proceeds to the next tetronimo (substate

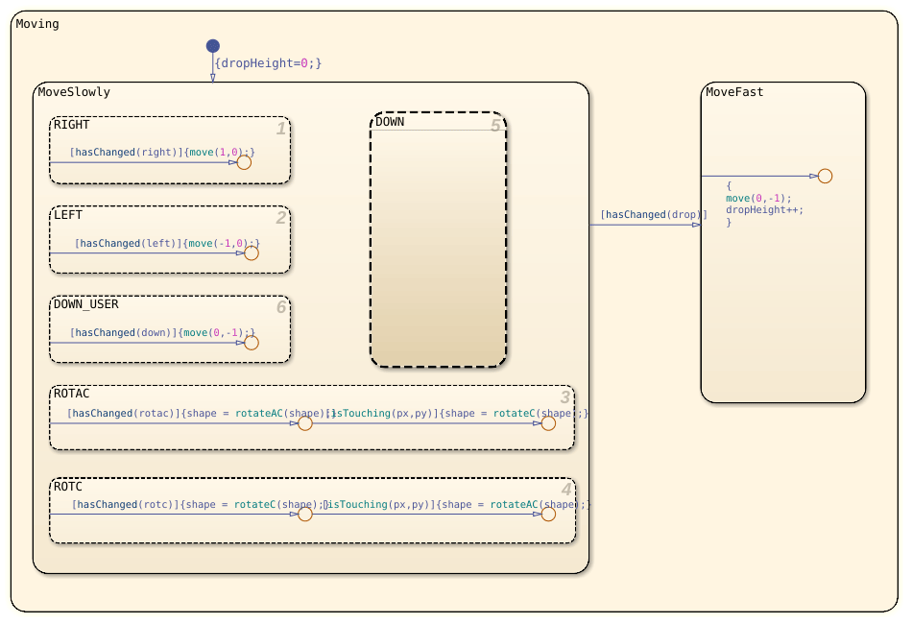

Moving subchart moves the tetronimo based on the input from the player. By default, the substate
MoveSlowly is active. The tetronimo moves slowly down the playing arena while the parallel substates in
MoveSlowly monitor the input from the keyboard. If the player presses the space bar, the substate
MoveFast becomes active. The tetronimo drops quickly to the bottom of the arena.
To gather input from the keyboard, the subchart uses the change detection operator
hasChanged. Every time that the player presses a key,
sf_tetris_gui increments an input to the chart, which makes the corresponding
hasChanged operator return a value of
MoveSlowly has a parallel decomposition, the chart can process multiple keystrokes each time step.
To interact with the game UI, use these keys:
Move left: Left arrow or J
Move right: Right arrow or L
Rotate clockwise: Up arrow or I
Rotate counterclockwise: Down arrow or K
Drop to bottom: Space bar
To pause and resume play: P
To quit: Q
