uencode

Quantize and encode floating-point inputs to integer outputs

Syntax

y = uencode(u,n)
y = uencode(u,n,v)
y = uencode(u,n,v,'SignFlag')


Description

y = uencode(u,n) quantizes the entries in a multidimensional array of floating-point numbers u and encodes them as integers using 2ⁿ-level quantization. n must be an integer between 2 and 32 (inclusive). Inputs can be real or complex, double- or single-precision. The output y and the input u are arrays of the same size. The elements of the output y are unsigned integers with magnitudes in the range [0, 2ⁿ-1]. Elements of the input u outside of the range [-1,1] are treated as overflows and are saturated.

• For entries in the input u that are less than -1, the value of the output of uencode is 0.

• For entries in the input u that are greater than 1, the value of the output of uencode is 2ⁿ-1.

y = uencode(u,n,v) allows the input u to have entries with floating-point values in the range [-v,v] before saturating them (the default value for v is 1). Elements of the input u outside of the range [-v,v] are treated as overflows and are saturated:

• For input entries less than -v, the value of the output of uencode is 0.

• For input entries greater than v, the value of the output of uencode is 2ⁿ – 1.

y = uencode(u,n,v,'SignFlag') maps entries in a multidimensional array of floating-point numbers u whose entries have values in the range [-v,v] to an integer output y. Input entries outside this range are saturated. The integer type of the output depends on the number of quantization levels 2ⁿ and the value of 'SignFlag', which can be one of the following:

• 'signed': Outputs are signed integers with magnitudes in the range [-2ⁿ/2, (2ⁿ/2) – 1].

• 'unsigned' (default): Outputs are unsigned integers with magnitudes in the range [0, 2ⁿ – 1].

The output data types are optimized for the number of bits as shown in the table below.

n	Unsigned Integer	Signed Integer
2 to 8	uint8	int8
9 to 16	uint16	int16
17 to 32	uint32	int32

Examples

Map Floating-Point Scalars to Integers

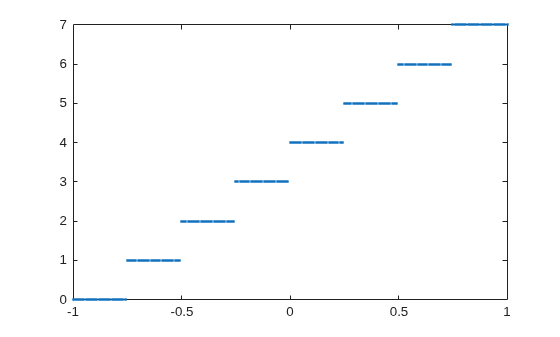

Map floating-point scalars in [-1, 1] to uint8 (unsigned) integers. Produce a staircase plot. The horizontal axis ranges from -1 to 1 and the vertical axis from 0 to 7 (i.e., $$2^3-1$$).

u = -1:0.01:1;
y = uencode(u,3);
plot(u,y,'.')

Look at saturation effects when you underspecify the peak value for the input.

u = -2:0.5:2;
y = uencode(u,5,1)

y = 1x9 uint8 row vector

    0    0    0    8   16   24   31   31   31

Specify you want signed output.

u = -2:0.5:2;
y = uencode(u,5,2,'signed')

y = 1x9 int8 row vector

   -16   -12    -8    -4     0     4     8    12    15

Algorithms

uencode maps the floating-point input value to an integer value determined by the requirement for 2ⁿ levels of quantization. This encoding adheres to the definition for uniform encoding specified in ITU-T Recommendation G.701. The input range [-v,v] is divided into 2ⁿ evenly spaced intervals. Input entries in the range [-v,v] are first quantized according to this subdivision of the input range, and then mapped to one of 2ⁿ integers. The range of the output depends on whether or not you specify that you want signed integers.

References

[1] International Telecommunication Union. General Aspects of Digital Transmission Systems: Vocabulary of Digital Transmission and Multiplexing, and Pulse Code Modulation (PCM) Terms. ITU-T Recommendation G.701. March, 1993.
