setOccupancy
説明
例
3 次元占有マップの作成とエクスポート
occupancyMap3D
オブジェクトを作成します。
map3D = occupancyMap3D;
地面を作成して占有値を 0 に設定します。
[xGround,yGround,zGround] = meshgrid(0:100,0:100,0); xyzGround = [xGround(:) yGround(:) zGround(:)]; occval = 0; setOccupancy(map3D,xyzGround,occval)
マップの特定のワールド位置に障害物を作成します。
[xBuilding1,yBuilding1,zBuilding1] = meshgrid(20:30,50:60,0:30); [xBuilding2,yBuilding2,zBuilding2] = meshgrid(50:60,10:30,0:40); [xBuilding3,yBuilding3,zBuilding3] = meshgrid(40:60,50:60,0:50); [xBuilding4,yBuilding4,zBuilding4] = meshgrid(70:80,35:45,0:60); xyzBuildings = [xBuilding1(:) yBuilding1(:) zBuilding1(:);... xBuilding2(:) yBuilding2(:) zBuilding2(:);... xBuilding3(:) yBuilding3(:) zBuilding3(:);... xBuilding4(:) yBuilding4(:) zBuilding4(:)];

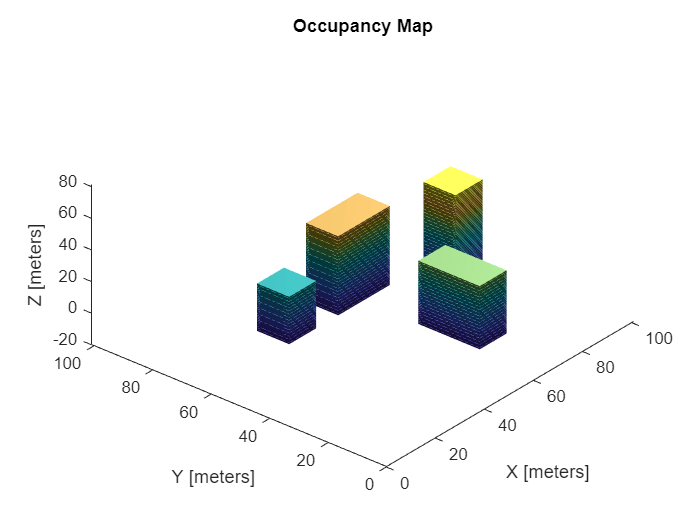

新しい確率値を使用して障害物を更新し、マップを表示します。
obs = 0.65; updateOccupancy(map3D,xyzBuildings,obs) show(map3D)
マップ ファイルを作成する前に、citymap.ot
という名前のマップ ファイルが現在のディレクトリに既に存在するか確認し、このファイルを削除します。
if exist("citymap.ot",'file') delete("citymap.ot") end
マップを八分木ファイルとしてエクスポートします。
filePath = fullfile(pwd,"citymap.ot");
exportOccupancyMap3D(map3D,filePath)
入力引数
map3D
— 3 次元占有マップ
occupancyMap3D
オブジェクト
3 次元占有マップ。occupancyMap3D
オブジェクトとして指定します。
xyz
— ワールド座標
n 行 3 列の行列
ワールド座標。点 [x y z]
の n 行 3 列の行列として指定します。ここで、n はワールド座標の数です。
occval
— 確率占有値
スカラー | 列ベクトル
確率占有値。xyz
と同じ長さの列ベクトルまたはスカラーとして指定します。スカラー入力は xyz
のすべての座標に適用されます。
0 に近い値は、セルが占有されておらず障害物がない確かさを表します。
拡張機能
C/C++ コード生成
MATLAB® Coder™ を使用して C および C++ コードを生成します。
setOccupancy
は、packType
引数を "flat"
に設定した場合、関数 packNGo
(MATLAB Coder) を使用したコード生成をサポートしません。
バージョン履歴
R2019b で導入
