interpolate
説明
interpolate(
は、制御パス pathObj
)pathObj
の StatePropagator
プロパティにある nav.StatePropagator
オブジェクトの ControlStepSize
プロパティに基づいてパスを評価し、すべての中間点を制御パスに追加します。
例
モバイル ロボット用の制御と 2 つの運動力学経路の組み合わせ
状態と状態伝播関数パラメーターの設定
三項マップ行列を読み込み、occupancyMap
オブジェクトを作成します。
load("exampleMaps","ternaryMap") map = occupancyMap(ternaryMap,10);
マップを使用して、二輪の運動学モデルの状態伝播関数を作成します。
propagator = mobileRobotPropagator(Environment=map);
マップのワールドの範囲に基づき、状態空間の状態の範囲を設定します。
propagator.StateSpace.StateBounds(1:2,:) = [map.XWorldLimits; map.YWorldLimits];
パスの計画
状態伝播関数からパス プランナーを作成します。
planner = plannerControlRRT(propagator);
開始状態とゴール状態を指定します。
start = [10 15 0]; goal = [40 30 0];
状態間のパスを計画します。結果を再現できるように、計画を行う前に乱数発生器をリセットします。
rng("default")
path = plan(planner,start,goal);
制御パスの総経過期間をチェックします。
pathDuration(path)
ans = 102.4000
伝播関数の制御ステップ サイズまでのパスを内挿します。
interpolate(path)

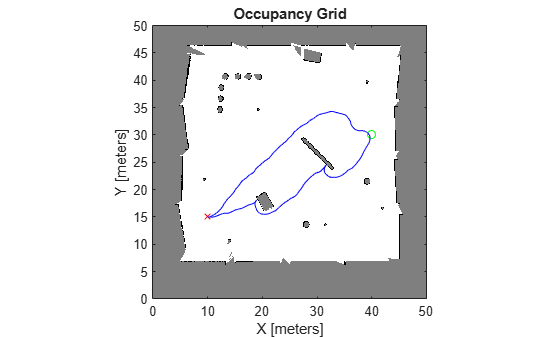

パスを可視化します。
figure show(map) hold on plot(start(1),start(2),"rx") plot(goal(1),goal(2),"go") plot(path.States(:,1),path.States(:,2),"b") hold off
リターン パスの計画
前のパス位置の終点から開始点に戻る 2 番目のパスを計画します。
path2 = plan(planner,path.States(end,:),start);
2 番目のパスの総経過期間をチェックします。
pathDuration(path2)
ans = 100.3000
パスを可視化します。
figure show(map) hold on plot(start(1),start(2),"rx") plot(goal(1),goal(2),"go") plot(path2.States(:,1),path2.States(:,2),"m") hold off
パスの組み合わせ
2 番目のパスから動作のシーケンスを抽出します。
states = path2.States(2:end,:); controls = path2.Controls; targets = path2.TargetStates; durations = path2.Durations;
このシーケンスを最初のパスの最後に追加します。
append(path,states,controls,targets,durations)
元のパスに新しいセグメントを内挿します。
interpolate(path)
最後のパスの総経過期間をチェックします。
pathDuration(path)
ans = 102.4000
パスを可視化します。
figure show(map) hold on plot(start(1),start(2),"rx") plot(goal(1),goal(2),"go") plot(path.States(:,1),path.States(:,2),"b") hold off
入力引数
pathObj
— 制御パス オブジェクト
navControlPath
オブジェクト
制御パス。navPathControl
オブジェクトとして指定します。
データ型: double
バージョン履歴
R2021b で導入
