# isinterior

Query geographic or planar points in polygon

Since R2022a

## Syntax

``inpoly = isinterior(shape,querypoint)``
``[inpoly,onboundary] = isinterior(shape,querypoint)``

## Description

example

````inpoly = isinterior(shape,querypoint)` returns a logical array whose elements are `1` (`true`) when the corresponding geographic or planar points in `querypoint` are in the polygon `shape`. A point is in the polygon `shape` if it is either inside a solid region or on one of the boundaries.```
````[inpoly,onboundary] = isinterior(shape,querypoint)` returns an additional logical array whose elements are `1` (`true`) when the corresponding points are on a boundary of the polygon `shape`.```

## Examples

collapse all

Read worldwide land areas into the workspace as a geospatial table. Extract the polygon shape for Australia.

```GT = readgeotable("landareas.shp"); australia = GT(GT.Name == "Australia",:); shape = australia.Shape;```

Read the coordinates of world cities as a geospatial table. Extract the point shapes.

```cities = readgeotable("worldcities.shp"); querypoint = cities.Shape;```

Create an array of cities in Australia.

```inpoly = isinterior(shape,querypoint); citiesAU = cities(inpoly,:);```

Compare the number of world cities to the number of cities in Australia.

`height(querypoint)`
```ans = 318 ```
`height(citiesAU)`
```ans = 6 ```

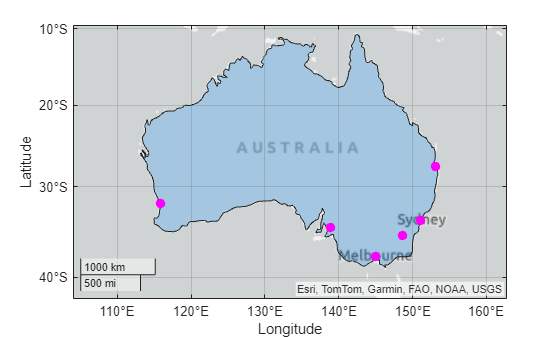

Display Australia and the cities in Australia on a map.

```figure geoplot(shape) hold on geoplot(citiesAU,"mo",MarkerFaceColor="m")```

Read hydrography data into the workspace as a geospatial table. Extract the polygon shape for a pond.

```GT = readgeotable("concord_hydro_area.shp"); pond = GT(14,:); shape = pond.Shape;```

Specify the coordinates of the query points using the same projected CRS as the hydrography data.

```xq = [207768 208399 208218 208044 207879 208210 208076]; yq = [912697 912324 912290 912453 912476 912542 912127]; querypoint = mappointshape(xq,yq); querypoint.ProjectedCRS = shape.ProjectedCRS;```

Determine which points are in the pond.

`inpoly = isinterior(shape,querypoint)`
```inpoly = 1×7 logical array 0 0 1 0 1 0 0 ```

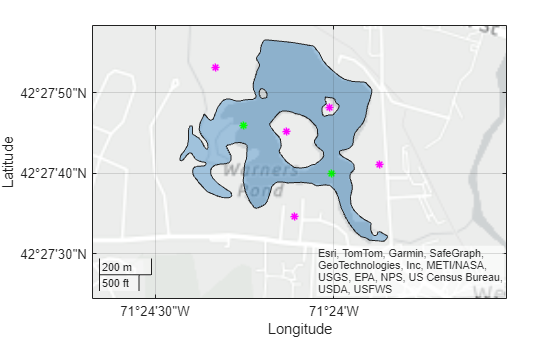

Display the pond and all points on a map. Use green for points inside the pond and magenta for points outside the pond.

```figure geoplot(pond) hold on geoplot(querypoint(inpoly),"*g") geoplot(querypoint(~inpoly),"*m")```

## Input Arguments

collapse all

Polygon shape, specified as a `geopolyshape` object or a `mappolyshape` object.

• When you specify `shape` as a `geopolyshape` object, then you must specify `querypoint` as an array of `geopointshape` objects. The `GeographicCRS` properties of the `geopolyshape` and `geopointshape` objects must match.

• When you specify `shape` as a `mappolyshape` object, then you must specify `querypoint` as an array of `mappointshape` objects. The `ProjectedCRS` properties of the `mappolyshape` and `mappointshape` objects must match.

Point shapes to query, specified as an array of `geopointshape` or `mappointshape` objects.

• When you specify `querypoint` as an array of `geopointshape` objects, then you must specify `shape` as a `geopolyshape` object. The `GeographicCRS` properties of the `geopointshape` and `geopolyshape` objects must match.

• When you specify `querypoint` as an array of `mappointshape` objects, then you must specify `shape` as a `mappolyshape` object. The `ProjectedCRS` properties of the `mappointshape` and `mappolyshape` objects must match.

## Output Arguments

collapse all

Indicator for points inside or on the boundary of the polygon, returned as a logical array. The size of `inpoly` matches the size of `querypoint`.

• A logical `1` (`true`) indicates that the corresponding query point is inside the polygon or on the boundary.

• A logical `0` (`false`) indicates that the corresponding query point is outside the polygon.

You can identify query points of interest by using `inpoly` to index into `querypoint`.

Points of InterestExample Code
Query points inside or on the boundary of the polygon`querypoint(inpoly)`
Query points outside the polygon`querypoint(~inpoly)`

If a query point is a multipoint, then the `isinterior` function returns `1` (`true`) only when all points of the multipoint are inside the polygon or on the boundary.

If a query point does not contain coordinate data, then the `isinterior` function returns `0` (`false`).

Indicator for points on the boundary of the polygon, returned as a logical array. The size of `onboundary` matches the size of `querypoint`.

• A logical `1` (`true`) indicates that the corresponding query point is on the polygon boundary.

• A logical `0` (`false`) indicates that the corresponding query point is inside or outside the polygon boundary.

You can identify query points of interest by using `onboundary` to index into `querypoint`.

Points of InterestExample Code
Query points on the polygon boundary`querypoint(onboundary)`
Query points inside or outside the polygon boundary`querypoint(~onboundary)`
Query points strictly inside the polygonal region`querypoint(inpoly&~onboundary)`

If a query point is a multipoint, then the `isinterior` function returns `1` (`true`) only when all points of the multipoint are on the polygon boundary.

If a query point does not contain coordinate data, then the `isinterior` function returns `0` (`false`).

## Tips

• If your polygon shape is in planar coordinates (a `mappointshape` object) and your query points are in geographic coordinates, first project the points by using the `projfwd` function. Then, create a point shape from the projected coordinates by using the `mappointshape` function.

## Version History

Introduced in R2022a
