LensDistortionChart

Chart displaying lens distortion of optical system

Since R2026a

Description

Add-On Required: This feature requires the Optical Design and Simulation Library for Image Processing Toolbox add-on.

A LensDistortionChart object stores information used to display the lens distortion of an optical system. You can change aspects of the display, such as the title, line color, and legend, by modifying properties of the LensDistortionChart object.

Creation

Create a LensDistortionChart object by using the show function with a LensDistortion object.

Properties

LensDistortion — Lens distortion results

LensDistortion object

Lens distortion results, specified as a LensDistortion object.

Color — Line color

RGB triplet | hexadecimal color code | color name | M-by-3 numeric matrix | M-element string vector | ...

Line color, specified as an RGB triplet, a hexadecimal color code, or a color name. You can also specify multiple colors as an M-by-3 numeric matrix where each row is an RGB triplet, or as an M-element string vector where each element is a hexadecimal color code or color name. If you specify a single color, the chart displays all results using the same color. If you specify multiple colors, then M must be equal to the number of wavelengths.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
"red"	"r"	[1 0 0]	"#FF0000"
"green"	"g"	[0 1 0]	"#00FF00"
"blue"	"b"	[0 0 1]	"#0000FF"
"cyan"	"c"	[0 1 1]	"#00FFFF"
"magenta"	"m"	[1 0 1]	"#FF00FF"
"yellow"	"y"	[1 1 0]	"#FFFF00"
"black"	"k"	[0 0 0]	"#000000"
"white"	"w"	[1 1 1]	"#FFFFFF"

Example: Color="r"

Example: Color="green"

Example: Color=[0 0.4470 0.7410]

Title — Title of chart

"Lens Distortion" (default) | string scalar | character vector

Title of chart, specified as a string scalar or character vector.

Data Types: char | string

Legend — Legend display

"on" (default) | "off" | true or 1 | false or 0

Legend display, specified as "on" or "off", or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

Grid — Grid lines to display

"off" (default) | "major" | "minor"

Grid lines to display, specified as one of these options.

• "major" — The chart displays only major grid lines.

• "minor" — The chart displays major and minor grid lines.

• "off" — The chart does not display any grid lines.

Data Types: char | string

Parent — Parent UI container

Figure object | Panel object | Tab object | TiledChartLayout object

Parent UI container, specified as a Figure object, Panel object, Tab object, or TiledChartLayout object. By default, the function creates a new Figure object. You can create these UI containers using their respective creation functions.

• UI Figure — uifigure

• UI Panel — uipanel

• UI Tab — uitab

• UI Tiled Layout — tiledlayout

Examples

Compute Double Gauss Lens Distortion

Create an optical system containing a camera lens by using the createDoubleGauss helper function, attached to this example as a supporting file.

opsys = createDoubleGauss;

Specify the position of the light source located at infinity in the *yz-*plane at 15 degrees below the optical axis using the FieldPoints property of the opticalSystem object.

opsys.FieldPoints = fieldPoint(Angles=[15 0]);

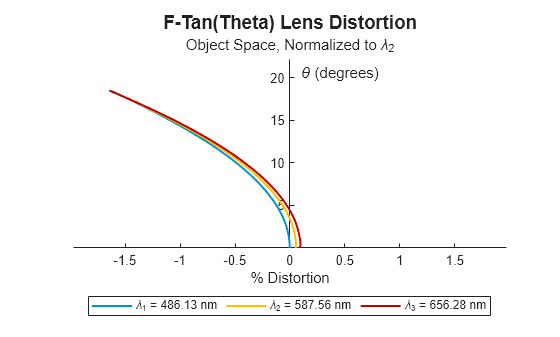

Compute the lens distortion of the optical system using the lensDistortion object function. Display the lens distortion chart using the show object function.

ld = lensDistortion(opsys);
plot_ld = show(ld)

plot_ld =
  LensDistortionChart with properties:

    LensDistortion: [1×1 optics.result.LensDistortion]
             Color: [3×3 double]
             Title: "F-Tan(Theta) Lens Distortion"
          Subtitle: "Object Space, Normalized to \lambda_2"
            Legend: on
              Grid: "off"
            Parent: [1×1 Figure]

  Show all properties

Version History

Introduced in R2026a
