N-Ratio Unbuffer

Unbuffer input data into integer-factor-sized frames

Since R2026a

•

Libraries:
DSP System Toolbox / Signal Management / Buffers

Description

The N-Ratio Unbuffer block unbuffers data into blocks of length equal to integer N factors of the input frame length. The integer ratio N between the input frame length and the output frame length is given by the Input-to-output frame length ratio parameter.

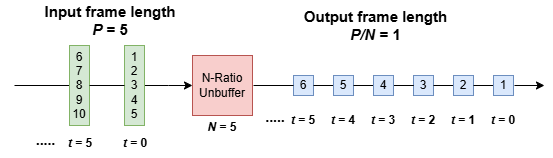

Here is an illustration that shows how the block unbuffers the data into the specified size.

The N-Ratio Unbuffer block optimizes the memory used in the generated code for P- to P/N- frame conversion.

Examples

Unbuffer Frame Signals into Sample Signals Using N-Ratio Unbuffer Block

Use the N-Ratio Unbuffer block to unbuffer multichannel signals of frame length N into multichannel signals of frame length 1, where N is a positive integer greater than 1.

This figure is a graphical representation of the unbuffering process.

In this example, a two-channel signal with 4 samples per frame is unbuffered into a two-channel signal with 1 sample per frame using the N-Ratio Unbuffer block.

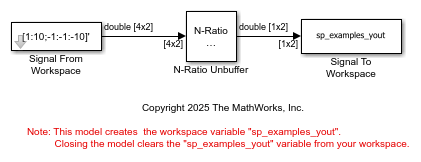

Open the ex_nratiounbuffer_tut model. In this model, the parameters of the Signal From Workspace block have the following values:

• Signal = [1:10;-1:-1:-10]'

• Sample time = 1

• Samples per frame = 4

• Form output after final data value by = Setting to zero

Based on these parameters, the Signal From Workspace block outputs a two-channel signal with a frame length of 4. Save these parameters and close the dialog box by clicking OK.

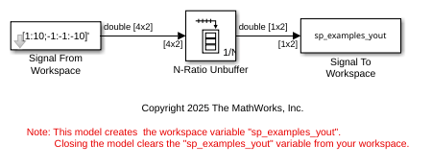

Double-click the N-Ratio Unbuffer block and set the Input-to-output frame length ratio to 4. The N-Ratio Unbuffer block outputs a signal with a frame length of 1.

Run the model.

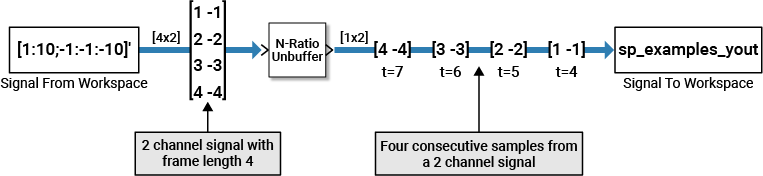

The following figure is a graphical representation of what happens when you simulate the model.

Ports

Input

Input — Data input

scalar | vector | matrix

Specify the data input as a scalar, vector, or a matrix of size P-by-Q.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Output

Output — Output of N-ratio unbuffer

scalar | vector | matrix

Output of the N-ratio unbuffer, returned as a scalar, vector, or a matrix of size P/N-by-Q, where N is the value you specify in the Input-to-output frame length ratio parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Input-to-output frame length ratio — Ratio of input frame length to output frame length

64 (default) | positive integer

Specify the ratio of the input frame length to the output frame length, N, as a positive integer.

Block Characteristics

Data Types	Boolean | double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

The N-Ratio Unbuffer block optimizes the memory used in the generated code for P- to P/N- frame conversion.

Version History

Introduced in R2026a
