turnRateAirspeedEnvelope
Syntax
Description
ax = turnRateAirspeedEnvelope(CLmax,S,mass,nMax,vMax)ax, and plots the turn rate versus flight
speed given maximum lift coefficient, maximum load factor, maximum airspeed, maximum
altitude, and maximum airspeed.
ax = turnRateAirspeedEnvelope(___,Name=Value)myAx instead of the
current axes.
turnRateAirspeedEnvelope(
plots a boundary line on the specified axes myAx,___)myAx instead of the current
axes. Create myAx with any axes function, such as gca or axes.
Examples

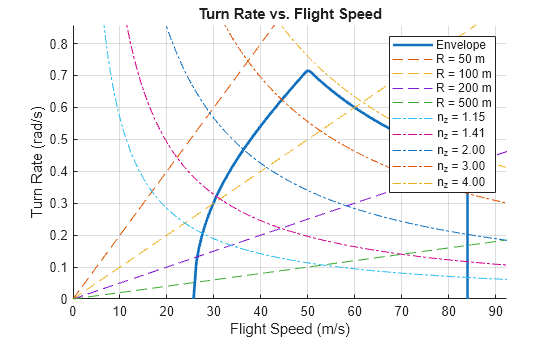

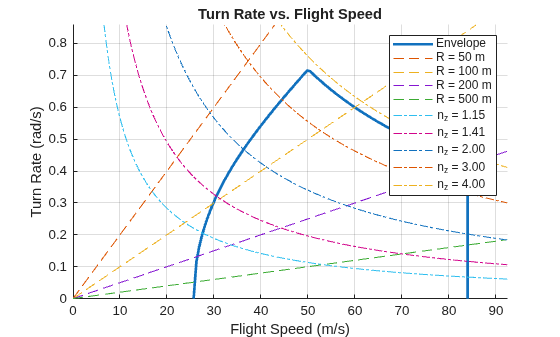

Create a turn rate airspeed energy maneuverability (EM) flight envelope for a Cessna 172 aircraft.
ax = turnRateAirspeedEnvelope(1.5,16.2,1000,3.8,84)
ax =
Axes (Turn Rate vs. Flight Speed) with properties:
XLim: [0 92.4000]
YLim: [0 0.8580]
XScale: 'linear'
YScale: 'linear'
GridLineStyle: '-'
Position: [0.1300 0.1127 0.7750 0.8123]
Units: 'normalized'
Show all properties

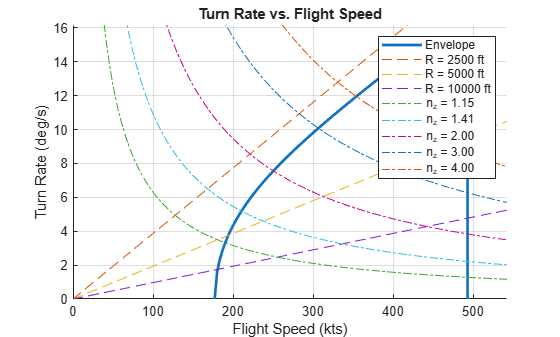

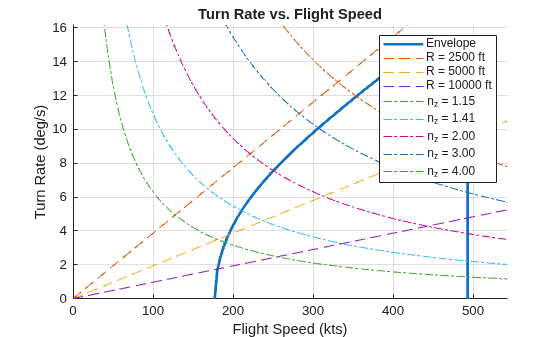

Create a turn rate airspeed energy maneuverability (EM) flight envelope for a Boeing 747 aircraft with units associated with the English system and in degrees.
ax = turnRateAirspeedEnvelope(1.5,5500,875000,5,493, ... Units="English (kts)",AngleUnits="Degrees")
ax =
Axes (Turn Rate vs. Flight Speed) with properties:
XLim: [0 542.3000]
YLim: [0 16.1687]
XScale: 'linear'
YScale: 'linear'
GridLineStyle: '-'
Position: [0.1300 0.1127 0.7750 0.8123]
Units: 'normalized'
Show all properties

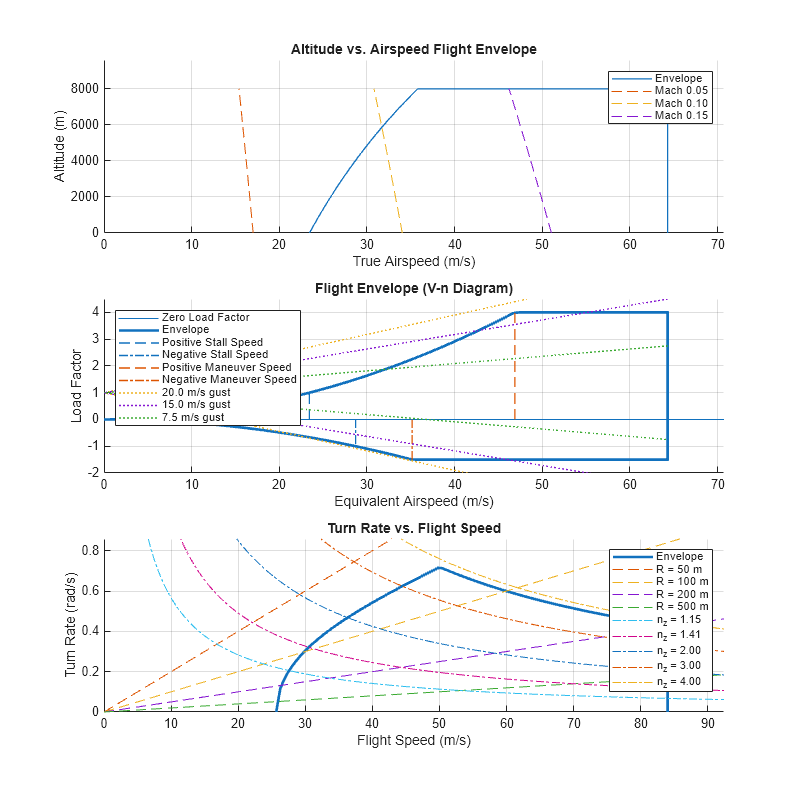

Create three flight envelopes and plot them on tiled axes ax1, ax2, and ax3 using the tiledlayout and nexttile functions.
Create a figure specifying the left, bottom, width, and height positions.
figure('Units','inches','Position',[1,1,12,12]);
Create a 3-row, 1-column, loosely tiled chart layout using tiledlayout.
tiledlayout(3,1);
Set the first tile to ax1 using nexttile, and then create and plot the altitude versus airspeed flight envelope using the altitudeSpeedEnvelope function.
ax1 = nexttile; altitudeSpeedEnvelope(ax1,1.8,8000,64.3,16.2,1000,MachLines=[0.05,0.1,0.15]);
Set the second tile to ax2 using nexttile and then create and plot the airspeed versus load factor flight envelope using velocityLoadFactorEnvelope.
ax2 = nexttile;
velocityLoadFactorEnvelope(ax2,0,1000,16.2,1.5,64.3,[-1.2,1.8],[-1.5,4],XAxis="EAS");Set the third tile to ax3 using the nexttile function, and then create and plot the turn rate versus flight speed flight envelope using the turnRateAirspeedEnvelope function.
ax3 = nexttile; turnRateAirspeedEnvelope(ax3,1.5,16.2,1000,3.8,84);
Input Arguments
Name-Value Arguments
Output Arguments
Version History
Introduced in R2026a
