Would like to know what is this symbol and its function

3 ビュー (過去 30 日間)
Ying Jie Tan
Ying Jie Tan 2023 年 10 月 26 日
コメント済み: Ying Jie Tan 2023 年 10 月 26 日

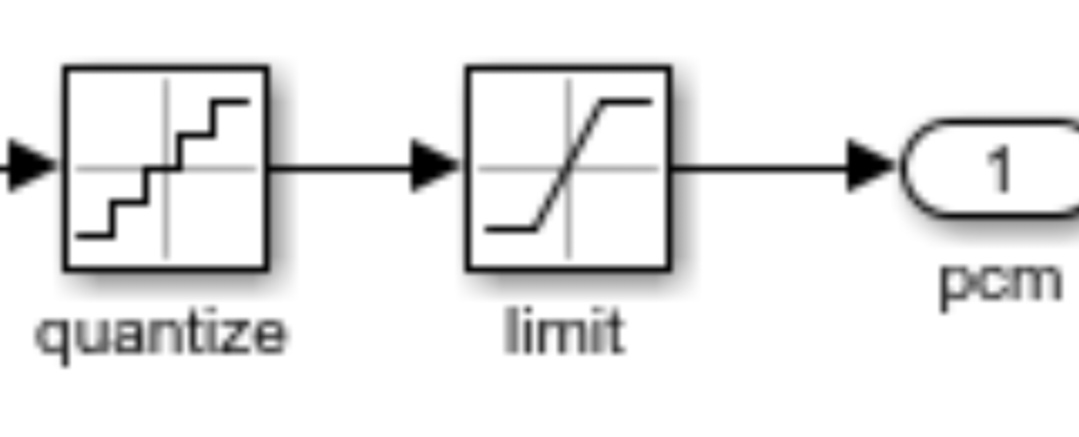

Good day community, can I know what is this symbol could be? It looks like a ramp/ continuous ramp. But I believe it is not both them. I saw someone connect it after a voltage/ current measurement. Can I know what is the function of this symbol too? Much appreciate for the answers given

  2 件のコメント
Kilsu Kim
Kilsu Kim 2023 年 10 月 26 日
It looks like "Saturation" block but the direction of the block is opposite.
Ying Jie Tan
Ying Jie Tan 2023 年 10 月 26 日

I've think about this before, but if Im not mistaken, the saturation block came with the y and x axis too right? Or we can hide that axes to become like the block I've attached above?
