NR Symbol Demodulation of Complex Data Symbols

This example shows how to use the NR Symbol Demodulator block to demodulate complex NR data symbols to data bits or LLR values. The workflow follows these steps:

1. Set up input data parameters.

2. Generate frames of random input samples.

3. Convert framed input data to a stream of samples and import the stream into Simulink.

4. Run the Simulink® model, which contains the NR Symbol Demodulator block.

5. Export the stream of demodulated samples from Simulink to the MATLAB® workspace.

6. Demodulate data symbols with nrSymbolDemodulate function to use its output as a reference data.

7. Compare Simulink block output data with the reference MATLAB function output.

Set up input data parameters.

Map modulation names to values. The numerical values are used to set up the NR Symbol Demodulator block. The strings are used to configure the nrSymbolDemodulator function.

rng(0);
framesize = 10;

% 0 - BPSK
% 1 - QPSK
% 2 - 16-QAM
% 3 - 64-QAM
% 4 - 256-QAM
% 5 - pi/2-BPSK
% others - QPSK
modSelVal = [0;1;2;3;4;5];
modSelStr = {'BPSK','QPSK','16QAM','64QAM','256QAM','pi/2-BPSK'};

decType = 'Soft';

numframes = length(modSelVal);
dataSymbols  = cell(1,numframes);
modSelTmp = cell(1,numframes);
nrFcnOutput = cell(1,numframes);

Generate frames of random input samples.

for ii = 1:numframes
    dataSymbols{ii} = complex(randn(framesize,1),randn(framesize,1));
    modSelTmp{ii} = fi(modSelVal(ii)*ones(framesize,1),0,3,0);
end

Convert the framed input data to a stream of samples and input the stream to the NR Symbol Demodulator Simulink block.

idlecyclesbetweensamples = 0;
idlecyclesbetweenframes  = 0;
[sampleIn, ctrl] = whdlFramesToSamples(dataSymbols,idlecyclesbetweensamples,...
    idlecyclesbetweenframes);
[modSel, ~] = whdlFramesToSamples(modSelTmp,idlecyclesbetweensamples,...
    idlecyclesbetweenframes);
validIn = logical(ctrl(:,3)');

sampletime = 1;
samplesizeIn = 1;
simTime = size(ctrl,1)*8;

Run the Simulink model.

modelname = 'nrhdlSymbolDemodulatorModel';
open_system(modelname);
set_param([modelname '/NRDemod/NR Symbol Demodulator'],'DecisionType',decType)
sim(modelname);

Export the stream of demodulated samples from Simulink to the MATLAB workspace.

nrHDLOutput = sampleOut(validOut).';

Demodulate data symbols with nrSymbolDemodulate function and use its output as a reference data.

for ii = 1:numframes
 nrFcnOutput{ii} = nrSymbolDemodulate(dataSymbols{ii},modSelStr{ii},'DecisionType',decType,1).';
end

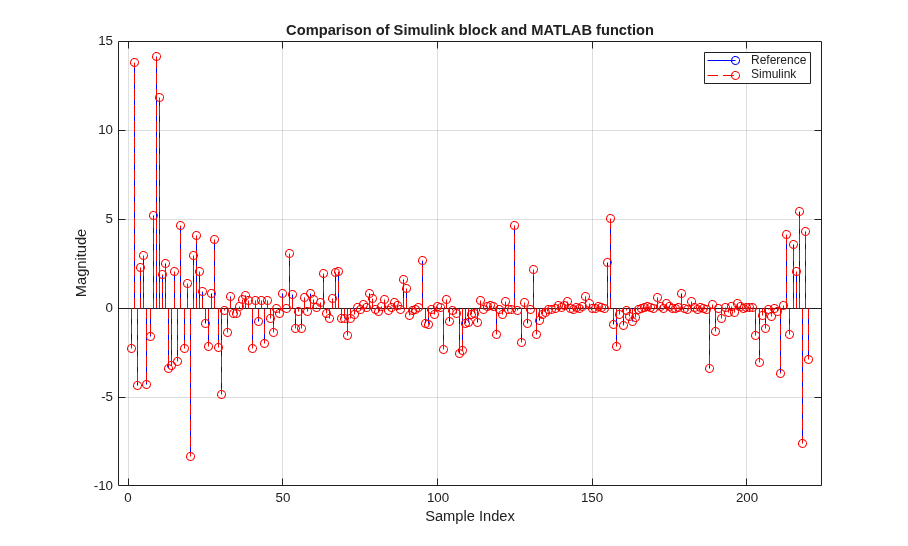

Compare the output of the Simulink model against the output of nrSymbolDemodulate function.

nrFcnOutput = double(cell2mat(nrFcnOutput));

figure(1)
stem(nrHDLOutput,'b')
hold on
stem(nrFcnOutput,'--r')
grid on
legend('Reference','Simulink')
xlabel('Sample Index')
ylabel('Magnitude')
title('Comparison of Simulink block and MATLAB function')
