LDPC Encoder
Libraries:
Wireless HDL Toolbox /
Error Detection and Correction
Description
The LDPC Encoder block implements a quasicyclic lowdensity paritycheck (QCLDPC) encoder with hardwarefriendly control signals. The block accepts data bits and a stream of control signals and outputs encoded bits, a stream of control signals, and a signal that indicates whether the block is ready to accept new inputs.
The block supports scalar inputs with a specified paritycheck matrix and block size. The block also supports lowertriangular or uppertriangular, dualdiagonal, and mixeddiagonal paritycheck matrices. The block supports LDPC codes of circulant weight 1. For more information, see ParityCheck Matrix.

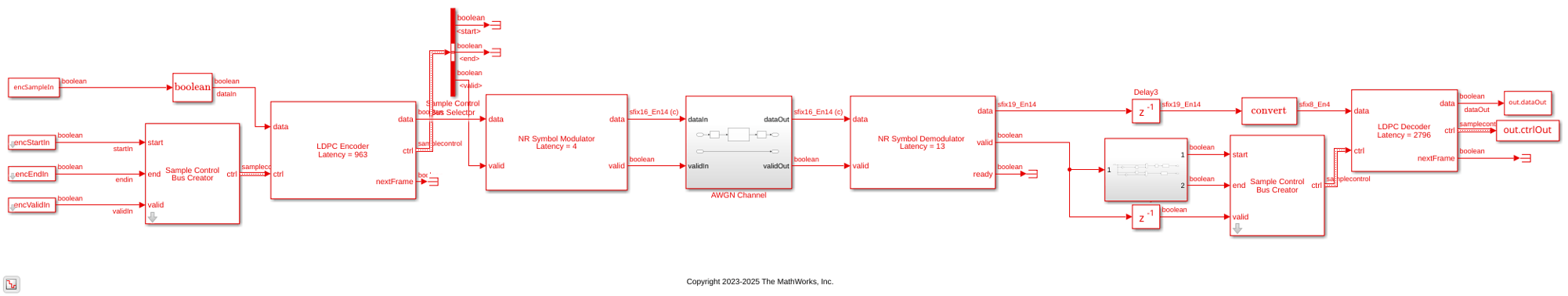

You can use this block to develop a standardbased or generalized transmitter that uses a QCLDPC for forward error correction (FEC) coding. The block provides an architecture suitable for HDL code generation and hardware deployment. See Algorithms.

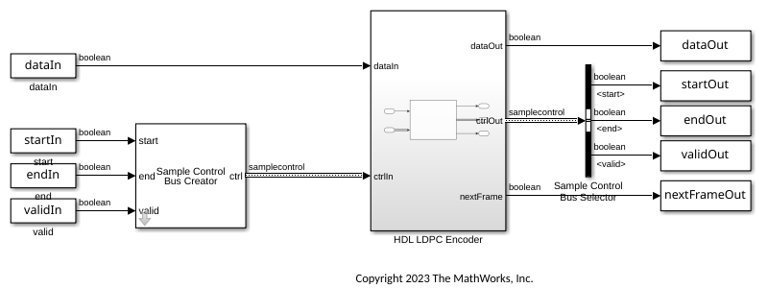

Ports
Input
data — Data bits
scalar
Data bits, specified as a scalar. The input data length must be (N–M) x Z, where M is the number of rows in the paritycheck matrix, N is the number of columns in the paritycheck matrix, and Z is the block size.
Data Types: Boolean
ctrl — Control signals accompanying sample stream
samplecontrol
bus
Control signals accompanying the sample stream, specified as a
samplecontrol
bus. The bus includes the start
,
end
, and valid
control signals, which indicate the
boundaries of the frame and the validity of the samples.
start
— Indicates the start of the input frameend
— Indicates the end of the input framevalid
— Indicates that the data on the input data port is valid
For more details, see Sample Control Bus.
Data Types: bus
Output
data — Encoded data bits
scalar
Encoded data bits, returned as a scalar.
Data Types: Boolean
ctrl — Control signals accompanying sample stream
samplecontrol
bus
Control signals accompanying the sample stream, returned as a samplecontrol
bus. The bus includes the start
, end
, and
valid
control signals, which indicate the boundaries of the frame
and the validity of the samples.
start
— Indicates the start of the output frameend
— Indicates the end of the output framevalid
— Indicates that the data on the output data port is valid
For more details, see Sample Control Bus.
Data Types: bus
nextFrame — Ready for new inputs
scalar
The block sets this signal to 1
when the block is ready to accept the start
of the next frame. If the block receives an input start signal
while nextFrame is 0
, the block discards the
frame in progress and begins processing the new data.
For more information, see Using the nextFrame Output Signal.
Data Types: Boolean
Parameters
Paritycheck matrix — QCLDPC matrix
[5 14 12 1 2 37 45 26 24 0 3 1 34 7 46 10 1 1 1 1; 0
35 1 26 0 10 16 16 34 4 2 23 0 51 1 49 20 1 1 1; 12 28 22 46 3 16 51 2 25 29 19 18
52 1 37 1 34 39 1 1; 0 51 16 31 13 39 27 33 8 27 53 13 1 52 33 1 1 38 7 1; 36
6 3 51 4 19 4 45 48 9 1 11 22 23 43 1 1 1 14 1]
(default)  any QCLDPC matrix with circulant weight 1
Specify a QCLDPC paritycheck matrix of size MbyN, where M is the number of rows in the paritycheck matrix and N is the number of columns in the paritycheck matrix. N must be in the range [4, 128]. M must be less than N and must be in the range [3, N–1]. The last M columns of the paritycheck matrix must be invertible in GF(2).
To learn more about the supported paritycheck matrices, see ParityCheck Matrix.
Block size — Size of block
56
(default)  integer in the range [2, 512]
Specify the block size. The block size must be an integer in the range [2, 512].
More About
ParityCheck Matrix
QCLDPC codes are an important class of codes within the family of LDPC codes. You can use LDPC codes in many applications because of their simple encoding implementation of using cyclic shift registers. The LDPC Encoder block performs encoding using a paritycheck matrix.
The block supports matrices with a circulant weight of 1. Each element in the paritycheck matrix corresponds to a submatrix of size Z. The elements in the paritycheck matrix must be in the range [–1, Z –1], where Z is the block size. In a paritycheck matrix, –1 corresponds to a zero submatrix, 0 corresponds to an identity submatrix, 1 corresponds to an identity submatrix circularly shifted by one time, and n corresponds a submatrix circularly shifted by n times, where n is any value in the range [0, Z – 1].
This figure shows a paritycheck matrix of size 2by4 whose block size is 4.
In this paritycheck matrix:
–1
represents a zero submatrix, [0 0 0 0; 0 0 0 0; 0 0 0 0; 0 0 0 0].0
represents an identity submatrix, [1 0 0 0; 0 1 0 0; 0 0 1 0; 0 0 0 1].1
represents an identity submatrix circularly shifted by one time, [0 1 0 0; 0 0 1 0; 0 0 0 1;1 0 0 0].2
represents an identity submatrix circularly shifted by two times, [0 0 1 0; 0 0 0 1; 1 0 0 0; 0 1 0 0].3
represents an identity submatrix circularly shifted by three times, [0 0 0 1; 1 0 0 0; 0 1 0 0; 0 0 1 0].
The paritycheck matrix, H can be partitioned into two submatrices H_{1} and H_{2}.
H = [H_{1} H_{2}], where H_{1} is the information part of size M x (N – M) and H_{2} is the parity part of size MbyM.
For example, in a paritycheck matrix of size 5by12, the 5by7 submatrix H_{1} comprises the information part and the 5by5 submatrix H_{2} comprises the parity part, as this figure shows.
The LDPC Encoder block supports these types of paritycheck matrix.
Lowertriangular — Contains –1s in the upper triangle of the parity part. These matrices are used in the IEEE 802.11ad and DOCSIS 3.1 cable communication standards.
Doublediagonal — Contains three nonzero elements in the first column of the parity part. Also, when you expand each element with an identity matrix of the block size, the sum over (GF2) of these elements must be an identity matrix, which means that at least two elements are the same. The remaining columns of the parity part must contain a bidiagonal pattern with 0s in its diagonals, and –1s in the rest of the parity part. These matrices are used in the WiFi^{®}, worldwide interoperability for microwave access (WiMAX), and wireless regional area network (WRAN) codes communication standards.
Mix of doublediagonal followed by a singlediagonal lower triangular — Contains a doublediagonal matrix with the extended rows and columns as a lower triangular part with 0s on the diagonals, and –1s in the rest of the parity part. These matrices are used in the 5G NR communication standard.
Uppertriangular — Contains –1s in the lower triangle of the parity part. These matrices are used in custom communications.
Algorithms
This figure shows the architecture block diagram of the LDPC Encoder block.
The Input Controller block reads and writes input data to the Input RAM block and enables the encoding after writing the entire frame to input RAM. The Paritycheck matrix block consists of specified paritycheck matrix values and provides shift values to the Shifter block. The Alpha RAM block stores the shifted output. The Parity Controller block calculates parity bit sequences and stores them in the Parity RAM block. The Mux block multiplexes and serializes the bits from the Input RAM and Parity RAM blocks.
Latency
The latency of the block varies with the Paritycheck matrix parameter. Because the latency varies, use the nextFrame control signal output port to determine when the block is ready for a new input frame.
This figure shows a sample output and latency of the LDPC Encoder block when you use default settings for the block parameters. The latency of the block is 963 clock cycles.
Performance
The performance of the synthesized HDL code varies with your target and synthesis options. Performance also varies with the paritycheck matrix and block size.
This table shows the resource and performance data synthesis results of the block with the default parameter configuration. The generated HDL targets to the Xilinx^{®} Zynq^{®} 7000 ZC706 evaluation board.
Slice LUTs  Slice Registers  Block RAMs  Maximum Frequency in MHz

1608  1416  0  380.42
This table shows the resource and performance data synthesis results of the block when
you specify a dualdiagonal paritycheck matrix of size 20by40 in the
Paritycheck matrix parameter and set the Block
size parameter to 128
. The generated HDL targets to the
Xilinx
Zynq 7000 ZC706 evaluation board.
Slice LUTs  Slice Registers  Block RAMs  Maximum Frequency in MHz

2453  2682  1  300
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink^{®} accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
Version History
Introduced in R2023a
