Maximal overlap discrete wavelet packet transform details
the maximal overlap discrete wavelet packet transform (MODWPT) details for the
w = modwptdetails(
x. The MODWPT details provide zero-phase
filtering of the signal. By default,
only the terminal nodes, which are at level 4 or at level
floor(log2(numel(x))), whichever is smaller.
To decide whether to use
modwpt, consider the
type of data analysis you need to perform. For applications that require
time alignment, such as nonparametric regression analysis, use
modwptdetails. For applications where you want
to analyze the energy levels in different packets, use
modwpt. For more information, see Algorithms.
[___] = modwptdetails(___,FullTree=,
false, returns details about
only the terminal (final-level) wavelet packet nodes. If you specify
details about the full wavelet packet tree down to the default or specified
level. The default value for
MODWPT Details Using Default Wavelet
Obtain the MODWPT of an electrocardiogram (ECG) signal using the default length 18 Fejér-Korovkin (
'fk18') wavelet and the default level, 4.
load wecg wptdetails = modwptdetails(wecg);
Demonstrate that summing the MODWPT details over each sample reconstructs the signal.
xrec = sum(wptdetails,1); max(abs(wecg-xrec'))
ans = 1.7903e-11
MODWPT Details for Two Sine Waves
Obtain the MODWPT details for a signal consisting of 100 Hz and 450 Hz sine waves. Each row of the
modwptdetails output corresponds to a separate frequency band.
dt = 0.001; fs = 1/dt; t = 0:dt:1; x = (sin(2*pi*100*t)+sin(2*pi*450*t)); [lo,hi] = wfilters("fk22"); wptdetails = modwptdetails(x,lo,hi);

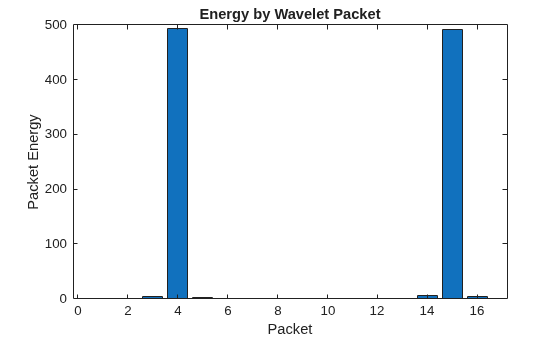

modwpt to obtain the energy and center frequencies of the signal. Plot the energy in the wavelet packets. The fourth and fifteenth frequency bands contain most of the energy. Other frequency bands have significantly less energy. The frequency ranges of fourth and fifteenth bands are approximately 94-125 Hz and 438-469 Hz, respectively.
[wpt,~,cfreqs,energy] = modwpt(x,lo,hi); bar(1:16,energy); xlabel("Packet") ylabel("Packet Energy") title("Energy by Wavelet Packet")

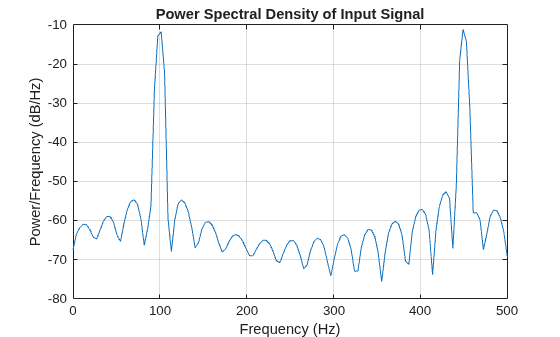

Plot the power spectral density of the input signal.
pwelch(x,,,,fs,"onesided") title("Power Spectral Density of Input Signal")

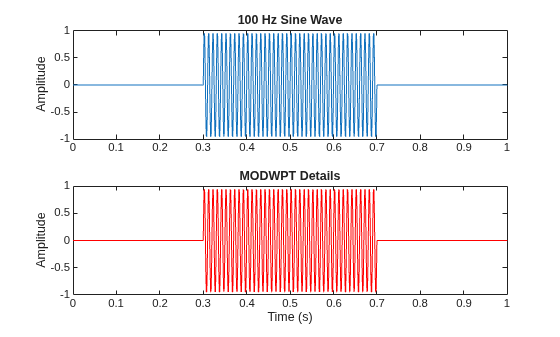

Show that the MODWPT details have zero-phase shift from the 100 Hz input sine.
p4 = wptdetails(4,:); tiledlayout(2,1) nexttile plot(t,sin(2*pi*100*t).*(t>0.3 & t<0.7)) title("100 Hz Sine Wave") ylabel("Amplitude") nexttile plot(t,p4.*(t>0.3 & t<0.7),"r") title("MODWPT Details") ylabel("Amplitude") xlabel("Time (s)")
MODWPT Details for Noisy Sinusoid
Create a 100 Hz time-localized sinusoid in noise. The sampling rate is 1000 Hz. Obtain the MODWPT at level 4 using the length 22 Fejér-Korovkin (
'fk22') wavelet. Also obtain the center frequencies of the approximate passbands corresponding to the MODWPT details.
Fs = 1000; t = 0:1/Fs:1; x = cos(2*pi*100*t).*(t>0.3 & t<0.7)+0.25*randn(size(t)); [wptdetails,~,cf] = modwptdetails(x,"fk22");
The center frequencies are in cycles per sample. Convert the center frequencies to hertz.
ans = 16×1 15.6250 46.8750 78.1250 109.3750 140.6250 171.8750 203.1250 234.3750 265.6250 296.8750 ⋮
The fourth center frequency is closest to the frequency of the sinusoid. Extract the details from the corresponding node.
p4 = wptdetails(4,:);

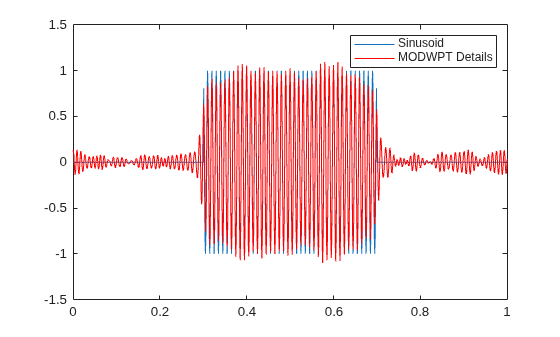

Compare the extracted details with the sinusoid. The MODWPT details represent zero-phase filtering of the input signal with an approximate passband of , where is the sampling frequency.
plot(t,cos(2*pi*100*t).*(t>0.3 & t<0.7)); hold on plot(t,p4,"r") legend("Sinusoid","MODWPT Details") hold off
MODWPT Details Using Scaling and Wavelet Filters
Obtain the MODWPT details of an ECG waveform using the length 22 Fejér-Korovkin scaling and wavelet filters.
load wecg [lo,hi] = wfilters("fk22"); wpt = modwptdetails(wecg,lo,hi);
MODWPT Details for Full Packet Tree
Load the ECG signal, which has 2048 samples. Obtain the MODWPT details of the full wavelet packet tree for the signal. Use the default length 18 Fejér-Korovkin (
load wecg [w,packetlevels] = modwptdetails(wecg,FullTree=true);
Confirm the terminal nodes of the packet tree are at level 4.
ans = 4

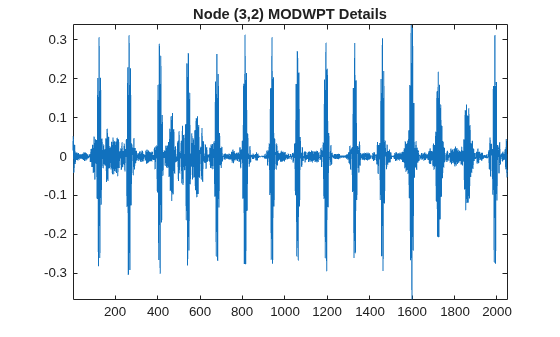

Extract and plot the node coefficients at level 3, node 2.
p3 = w(packetlevels==3,:); plot(p3(3,:)) axis tight title("Node (3,2) MODWPT Details")
x — Input signal
Input signal, specified as a row or column vector.
must have at least two elements.
Complex Number Support: Yes
wname — Analyzing wavelet
"fk18" (default) | character vector | string scalar
Analyzing wavelet, specified as a character vector or string scalar. The
wavelet must be orthogonal. Orthogonal wavelets are designated as type 1
wavelets in the wavelet manager,
Valid built-in orthogonal wavelet families are: Best-localized Daubechies
"bl"), Beylkin (
"coif"), Daubechies (
"fk"), Haar (
Han linear-phase moments (
"sym"), and Vaidyanathan
For a list of wavelets in each family, see
wfilters. You can also use
waveinfo with the
wavelet family short name. For example,
wavemngr("type",wn) to determine
if the wavelet wn is orthogonal (returns 1). For example,
wavemngr("type","db6") returns 1.
lo,hi — Filters
even-length real-valued vectors
Filters, specified as a pair of even-length real-valued vectors.
lo is the scaling (lowpass) filter and
hi is the wavelet (highpass) filter. The filters must
satisfy the conditions for an orthogonal wavelet. For more information, see
isorthwfb. You cannot specify both
wname and a filter pair
By default, the
returns two pairs of filters associated with an orthogonal or
biorthogonal wavelet you specify. To agree with the usual convention
in the implementation of
MODWPT in numerical
packages, when you specify an orthogonal wavelet
modwptdetails function internally uses the
second pair of filters returned by
is equivalent to
[~,~,lo,hi] = wfilters("db2"); wptdetails =
This convention is different from the one followed by most Wavelet Toolbox™ discrete wavelet transform functions when decomposing a signal. Most functions internally use the first pair of filters.
lev — Transform level
Transform level, specified as a positive integer less than or equal to
tf — Return tree option
0 (default) |
Return tree option, specified as a numeric or logical
returns details about only the terminal (final-level) wavelet packet nodes.
If you specify
modwptdetails returns details about the full
wavelet packet tree down to the default or specified level.
w — Wavelet packet tree details
Wavelet packet tree details, returned as a matrix with each
row containing the sequency-ordered wavelet packet details for the
terminal nodes. The terminal nodes are at level 4 or at level
whichever is smaller. The MODWPT details are zero-phase-filtered projections
of the signal onto the subspaces corresponding to the wavelet packet
nodes. The sum of the MODWPT details over each sample reconstructs
the original signal.
For the default terminal nodes, w is a 2j-by-
matrix. For the full packet table, at level j,
matrix of sequency-ordered wavelet packet coefficients by level and
index. The approximate passband for the nth row
w at level j is cycles
per sample, where n = 1,2,...,2j.
packetlevs — Transform levels
Transform levels, returned as a vector. The levels correspond
to the rows of
only the terminal level coefficients,
a vector of constants equal to the terminal level. If
the full wavelet packet tree of details,
a vector with 2j-1 elements
for each level, j. To select all the MODWPT details
at a particular level, use
packetlevs with logical
cfreq — Center frequencies of passbands
Center frequencies of the approximate passbands in the
returned as a vector. The center frequencies are in cycles per sample.
To convert the units to cycles per unit time, multiply
the sampling frequency.
The MODWPT details (
the result of zero-phase filtering of the signal. The features in
the MODWPT details align exactly with features in the input signal.
For a given level, summing the details for each sample returns the
exact original signal.
The output of the MODWPT (
is time delayed compared to the input signal. Most filters used to
obtain the MODWPT have a nonlinear phase response, which makes compensating
for the time delay difficult. All orthogonal scaling and wavelet filters
have this response, except the Haar wavelet. It is possible to time
align the coefficients with the signal features, but the result is
an approximation, not an exact alignment with the original signal.
The MODWPT partitions the energy among the wavelet packets at each
level. The sum of the energy over all the packets equals the total
energy of the input signal.
 Percival, Donald B., and Andrew T. Walden. Wavelet Methods for Time Series Analysis. Cambridge Series in Statistical and Probabilistic Mathematics. Cambridge ; New York: Cambridge University Press, 2000.
 Walden, A. T., and A. Contreras Cristan. “The Phase–Corrected Undecimated Discrete Wavelet Packet Transform and Its Application to Interpreting the Timing of Events.” Proceedings of the Royal Society of London. Series A: Mathematical, Physical and Engineering Sciences 454, no. 1976 (August 8, 1998): 2243–66. https://doi.org/10.1098/rspa.1998.0257.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
wnamemust be constant.
Version HistoryIntroduced in R2016a
R2023b: Supports complex-valued signals
modwptdetails function supports complex-valued
R2023a: Supports single-precision data
modwptdetails function supports single-precision
