CWT filter bank 3 dB bandwidths
returns 3 dB (half-power) bandwidths for the wavelet filters in the filter bank
bw = powerbw(
bw is a Ns-by-4
table, where Ns is the number of wavelet
bandpass frequencies (equal to the number of scales). For every filter in
fb, the table contains the corresponding bandpass
frequency, the 3 dB bandwidth, and the lower frequency and upper frequency limits of
the 3 dB bandwidth.
The 3 dB bandwidth limits mark where the filter power is half its peak value. The
magnitude frequency response at the limits is equal to 1/√2 times the peak
magnitude. Since the passbands in
fb are normalized with peak
magnitudes approximately equal to 2, the magnitude frequency response at each limit
is approximately equal to 2/√2. The 3 dB bandwidth is also known as the half-power
Half-Power Wavelet Bandwidths
Create a CWT filter bank.
fb = cwtfilterbank;
Obtain the 3 dB (half-power) bandwidths of the filter bank. Obtain the frequency responses of the wavelets.
bw = powerbw(fb); [psidft,f] = freqz(fb);
Choose a wavelet bandpass filter from the filter bank. Extract from the table
bw the 3 dB limits of the bandpass filter.
wv = 5; frq = bw.Frequencies(wv); lfb = bw.LowFrequencyBorder(wv); hfb = bw.HighFrequencyBorder(wv);

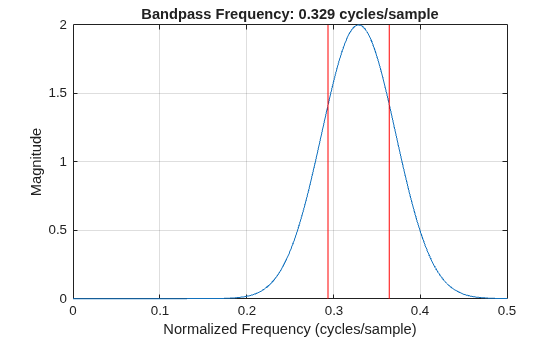

Plot the frequency response and 3 dB limits. Since the frequency response is scaled to have a maximum value equal to 2, inspect the plot to confirm the lower and upper frequency borders intersect the frequency response at .
plot(f,psidft(wv,:)) grid on hold on plot([lfb lfb],[0 2],'r') plot([hfb hfb],[0 2],'r') xlabel('Normalized Frequency (cycles/sample)') ylabel('Magnitude') title(['Bandpass Frequency: ' num2str(frq) ' cycles/sample'])
fb — Continuous wavelet transform filter bank
Continuous wavelet transform (CWT) filter bank, specified as a
bw — 3 dB (half-power) bandwidths
3 dB (half-power) bandwidths, returned as an Ns-by-4
table, where Ns is the number of
wavelet bandpass frequencies (equal to the number of scales). The table has
Frequencies — Bandpass frequency
Bandpass frequency, returned as a positive scalar (see
HalfPowerBandwidth — Half-power bandwidth
Half-power bandwidth, returned as a positive scalar.
LowFrequencyBorder — Lower frequency edge
Lower frequency edge of the 3 dB bandwidth, returned as a positive scalar.
HighFrequencyBorder — High frequency edge
High frequency edge of the 3 dB bandwidth, returned as a positive scalar.
Introduced in R2018a
