plot
Description
This function requires Extended Tire Features for Vehicle Dynamics Blockset.
plot(___,
specifies
additional options using one or more name-value arguments. For example, to show a legend on
a plot, set Name=Value
)ShowLegend
to true
.
Input Arguments
obj
— Tire data
tireData
object | array of tireData
objects
Tire data, specified as a tireData
object or an array of
tireData
objects.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: plot(tdata,DataVariableNames="kappa")
DataVariableNames
— Data variable names
array of strings
Data variable names, specified as an array of strings.
DataVariableNames
must be a data channel property of
tireData
object.

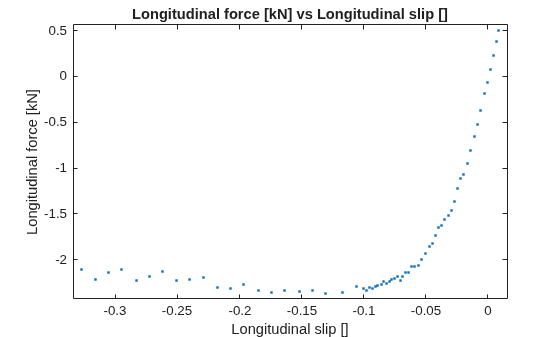

If one variable name is passed, the variable is set as the y-axis channel, and the x-coordinate is defined as
1:length(Y)
.If two variable names are passed, the order is [x-axis variable, y-axis variable].

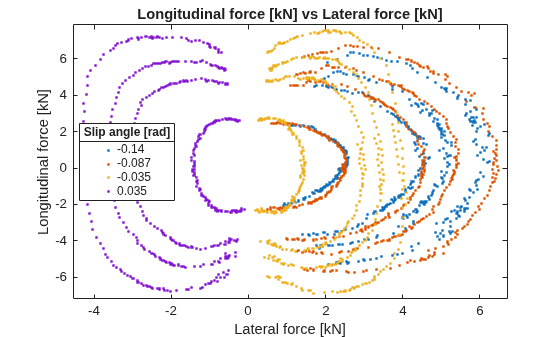

If three variables names are passed, the order is [x-axis variable, y-axis variable, z-axis variable].
Note

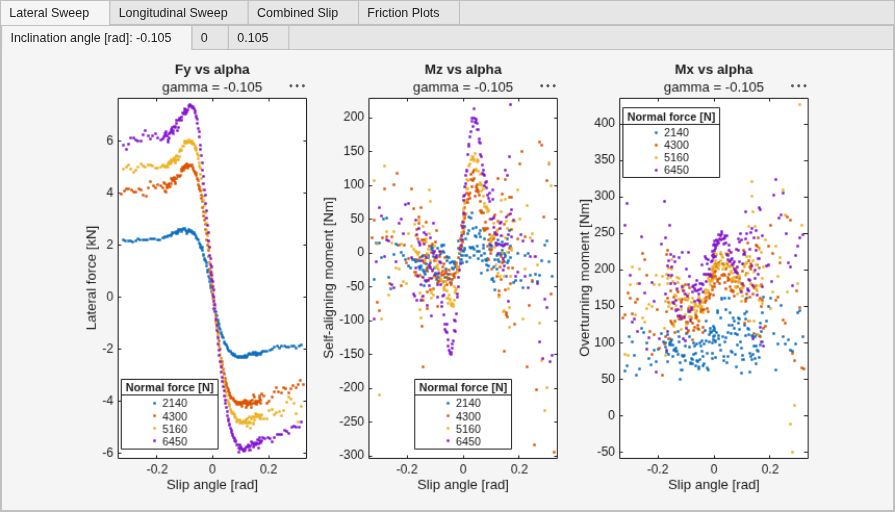

If no variable names are passed, an autoplot function runs to generate the most
appropriate plots for the tireData
object. The autoplot function is
limited to plotting steady-state and single-channel sweep maneuvers.
Example: DataVariableNames=["kappa", "Fx"]
Data Types: string

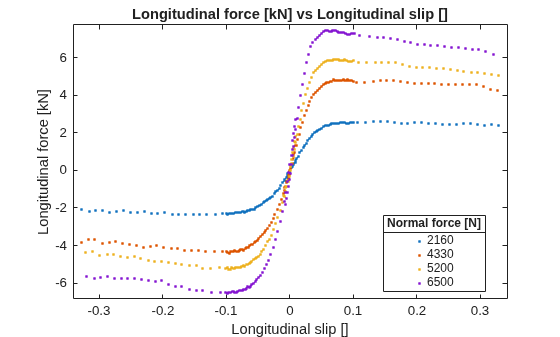

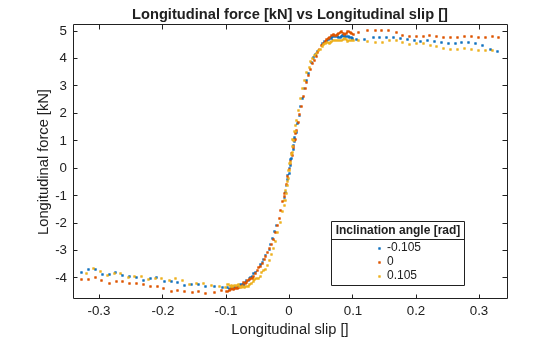

ColorBy
— Option to color by value
string
Option to color by value, specified as a string to determine how line colors and
legend values are assigned. String values must be a property of the
tireData
object.
Note
If the ColorBy
value is a data channel, the mean value for
each tireData
object will be used to differentiate the color
groups.
Example: ColorBy="Fz"
Data Types: string

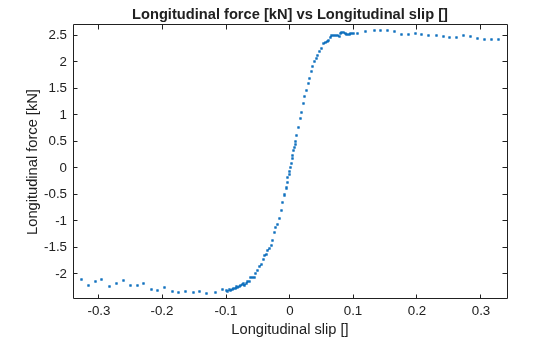

FilterBy
— Option to filter tire data
string array
Option to filter tire data, specified a string array. String value must be a
property of tireData
.
Note
The FilterBy
name-value argument must be used with the
FilterByValues
name-value argument. The
FilterBy
string array must be the same length as the
FilterByValues
cell array.
Example:
FilterBy=["TireSize", "Fz"]
Data Types: string
FilterByValues
— Option to filter tireData objects
cell array
Option to filter tireData
objects by values, specified as a cell
array. The FilterByValue
cell data type must be a string or a
double depending on the tireData
property defined in the
FilterBy
string array.
For data channels, the
FilterByValue
must be a two-element double.tireData
objects with a mean value for theFilterBy
channel outside of the range specified in theFilterByValue
are excluded from the plot.For
tireData
properties that are not data channels, theFilterByValue
must be a string array.tireData
objects with a property value that is not a member of theFilterByValue
array are excluded from the plot.
Note
The FilterByValues
name-value argument must be used with the
FilterBy
name-value argument. The
FilterByValues
cell array must be the same length as the
FilterBy
string array.
Example: FilterByValues={"235/45R18",
[3000,8000]}
Data Types: double
| string
Parent
— Parent container or axes in which to draw plot
axes object | figure object | panel object | tab object
Parent container or axes in which to draw the plot, specified as an axes, figure, panel, or
tab object. If you do not specify Parent
, a
new figure is created.
Note
If you specify Data
without specifying
DataVariableNames
, the parent
must be a valid tab container if you are
generating a tabbed plot.
Title
— Plot title
string
Plot title, specified as a string.
Example: Title="Plot Title"
Data Types: string
Subtitle
— Plot subtitle
string
Plot subtitle, specified as a string.
Example: Subtitle="Plot subtitle"
Data Types: string
ShowLegend
— Option to show legend
true
(default) | false
Option to show legend, specified as true
or
false
.
Example: ShowLegend=true
Data Types: logical
LineStyle
— Line style
none
(default) | "-"
| "--"
| ":"
| "-."
Line style, specified as one of these values:
none
"-"
"--"
":"
"-."
Example: LineStyle="-"
Data Types: string
LineWidth
— Line width
1.0 (default) | positive value
Line width, specified a positive value.
Example: LineWidth=1
Marker
— Marker
"."
(default) | none
| "o"
| "+"
| "*"
| ...
Marker, specified as one of these values:
"o"
"+"
"*"
"x"
"-"
"|"
"square"
"diamond"
"^"
"v"
">"
"<"
"pentagram"
"hexagram"
"none"
Example: Marker="square"
Data Types: string
MarkerSize
— Marker size
6 (default) | positive value
Marker size, specified as a positive value.
Example: MarkerSize=6
Model
— Tire model
tireModel
object | array of tireModel
objects
Tire model, specified as a tireModel
object or an array of
tireModel
objects with a maximum length of four.
Version History
Introduced in R2023b
