predictError
一連の点における誤差値の予測
説明
例
誤差の予測
この例では、評価点のノルムが 2
より大きい場合にエラーをスローする関数を最適化する方法を示します。目的関数のエラー モデルはこの動作を学習します。
-5
~ 5
の範囲にある x1
および x2
という名前の変数を作成します。
var1 = optimizableVariable('x1',[-5,5]); var2 = optimizableVariable('x2',[-5,5]); vars = [var1,var2];
x = [x1,x2]
のノルムが 2 より大きい場合、次の目的関数はエラーをスローます。
function f = makeanerror(x)
f = x.x1 - x.x2 - sqrt(4-x.x1^2-x.x2^2);
fun = @makeanerror;

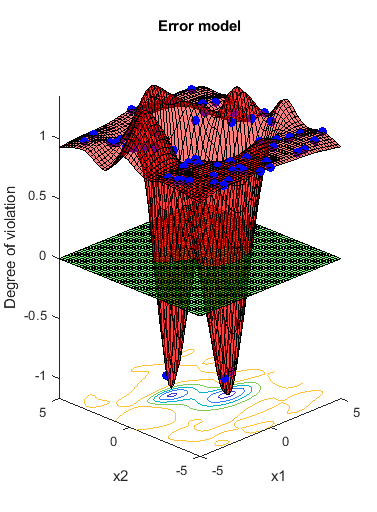

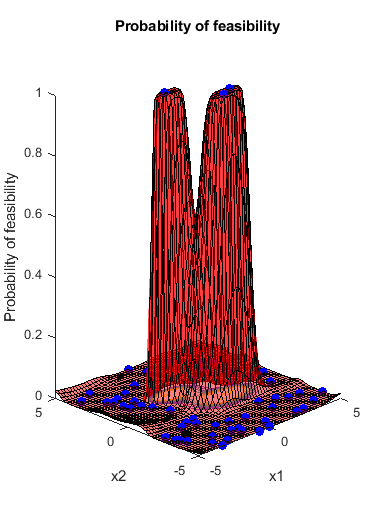

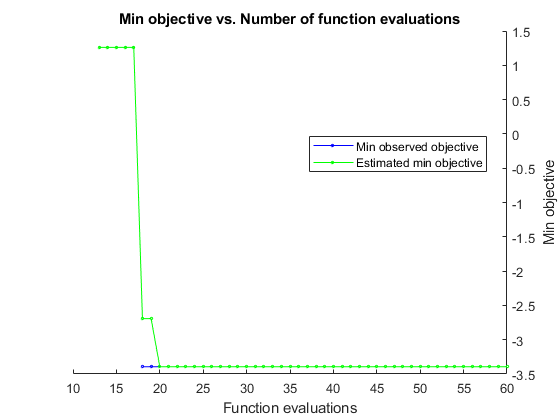

誤差モデルと最小目的関数を最適化の進行に応じてプロットします。誤差モデルに十分に学習をさせるため、60 回の反復で最適化します。再現性を得るために、乱数シードを設定し、'expected-improvement-plus'
の獲得関数を使用します。
rng default results = bayesopt(fun,vars,'Verbose',0,'MaxObjectiveEvaluations',60,... 'AcquisitionFunctionName','expected-improvement-plus',... 'PlotFcn',{@plotMinObjective,@plotConstraintModels});
直線 x1 = x2
の点における誤差を予測します。誤差モデルが完全であれば、x
のノルムが 2
を超えないすべての点で値は -1
、他のすべての点で 1
になります。
x1 = (-5:0.5:5)'; x2 = x1; XTable = table(x1,x2); error = predictError(results,XTable); normx = sqrt(x1.^2 + x2.^2); [XTable,table(normx,error)]
ans = 21x4 table x1 x2 normx error ____ ____ _______ _________ -5 -5 7.0711 0.94663 -4.5 -4.5 6.364 0.97396 -4 -4 5.6569 0.99125 -3.5 -3.5 4.9497 1.0033 -3 -3 4.2426 1.0018 -2.5 -2.5 3.5355 0.99627 -2 -2 2.8284 1.0043 -1.5 -1.5 2.1213 0.89886 -1 -1 1.4142 0.4746 -0.5 -0.5 0.70711 0.0042389 0 0 0 -0.16004 0.5 0.5 0.70711 -0.012397 1 1 1.4142 0.30187 1.5 1.5 2.1213 0.88588 2 2 2.8284 1.0872 2.5 2.5 3.5355 0.997 3 3 4.2426 0.99861 3.5 3.5 4.9497 0.98894 4 4 5.6569 0.98941 4.5 4.5 6.364 0.98956 5 5 7.0711 0.95549
入力引数
results
— ベイズ最適化の結果
BayesianOptimization
オブジェクト
ベイズ最適化の結果。BayesianOptimization
オブジェクトを指定します。
XTable
— 予測点
列数が D のテーブル
予測点。列数が D のテーブルを指定します。D は、問題に含まれている変数の個数です。これらの点で予測が実行されます。
データ型: table
出力引数
バージョン履歴
R2016b で導入
