メカニズム

R2026a
車輪や車軸などのシンプルな位置および角度ベースのメカニズム

このライブラリには、シンプルな位置および角度ベースのメカニズムを表すブロックが含まれます。

Simscape ブロック

Cam and Follower (AB-PB) blockCam and Follower (AB-PB)Position-and-angle-based cam and follower mechanism (R2026a 以降)
Wheel and Axle (AB-PB) blockWheel and Axle (AB-PB)Position-and-angle-based wheel and axle mechanism (R2026a 以降)

関連情報

注目の例

Interfacing Angle-Based Rotational and Position-Based Translational Networks

Interfacing Angle-Based Rotational and Position-Based Translational Networks

Demonstrates how you can define positive directions for translation and rotation in your physical view and adjust the Simscape™ network to achieve the desired behavior. It highlights the flexibility of Simscape in mapping physical directions to schematic representations.

Camshaft

Camshaft

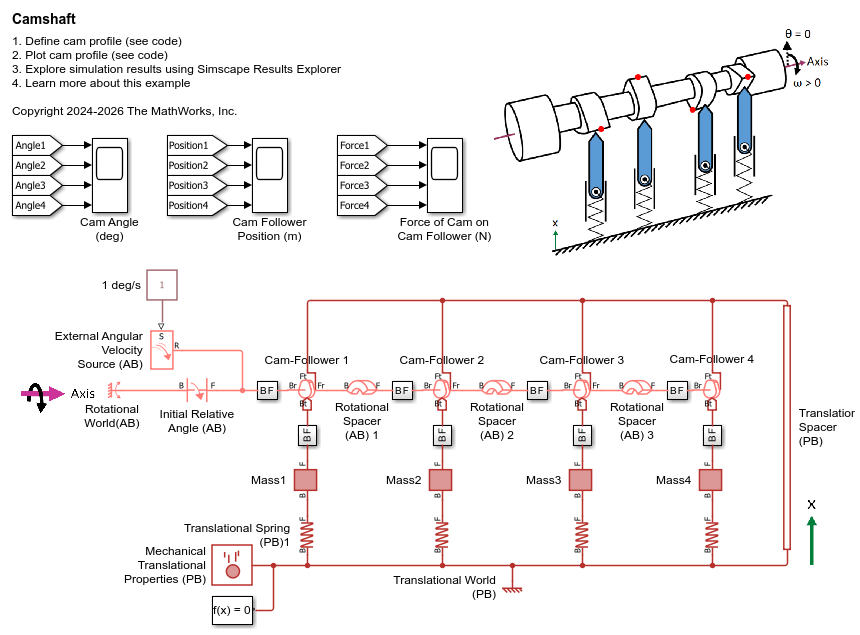

Model a camshaft using Cam and Follower (AB-PB) blocks. The camshaft has four cams, each driving a knife-edge follower on a spring. This example describes how to set up the cam profile, offset angles between the cams, and initial conditions.
