ROS Parameters in Simulink

These examples show how to get, set, compare, and manipulate ROS parameters in Simulink^®. To run these examples, you must first set up a ROS network using rosinit. To set network-wide settings and share values with the whole network, start a ROS parameter server using rosparam. Follow these examples to see how to work with parameters in Simulink, including using string parameters.

Get and Set ROS Parameters

This example uses:

Open Script

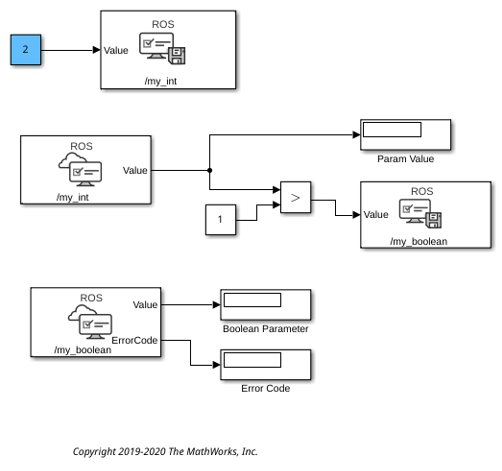

This model gets and sets ROS parameters using Simulink®. This example illustrates how to use ROS parameters in Simulink and to share data over the ROS network. An integer value is set as a parameter on the ROS network. This integer is retrieved from the parameter server and compared to a constant. The output Boolean from the comparison is also set on the network. Change the constant block in the top left (blue) when you run the model to set network parameters based on user input conditions.

You must be connected to a ROS network. Call rosinit in the MATLAB® command line.

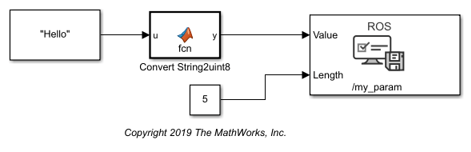

Set String Parameter on ROS Network

Open Model

To create your string parameter, use a String Constant block and convert it to uint8 using a MATLAB function block. The converted uint8 string is passed into the Set Parameter block along with the extra input, Length, specified with a second Constant block. The Length refers to the maximum expected string length and is required for all string parameters. For more information, see the Set Parameter block.

Compare ROS String Parameters

This example uses:

Open Live Script

On ROS networks, strings parameters are stored as a uint8 array. When you get from string parameters from the server, they are returned as a char array. In Simulink®, they are cast as uint8, so you must use uint8 character vectors when comparing to the ROS string parameters. You can use this comparison to trigger subsystems for larger models or validate settings for specific algorithms.

Connect to a ROS network. Set up the ROS Parameter tree.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572164 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572166 pts/3    S+     0:00 grep -E ros|python

Done in 0.45794 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
Status before getting PID :0
Result before getting PID :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572189 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572191 pts/3    S+     0:00 grep -E ros|python

Result:  572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3

Status: 0
PID obtained: 572169
Status after getting PID :0
Result after getting PID :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572196 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572198 pts/3    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572199 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572201 pts/3    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572202 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 593 -1 -mvmOutputPipe -1 610
 572217 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572219 pts/3    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572223 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572225 pts/3    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.20.144.70:53754.
Initializing global node /matlab_global_node_19111 with NodeURI http://dcc959649glnxa64:37361/ and MasterURI http://localhost:53754.

ptree = rosparam;

Set a ROS parameter, /camera_format, to a string value. You can use string scalars or character vectors. The value is stored as a uint8 array on the ROS parameter server and returned as 'jpeg' in MATLAB®.

set(ptree,"/camera_format","jpeg")
pause(1)
pvalue = get(ptree,"/camera_format")

pvalue =
'jpeg'

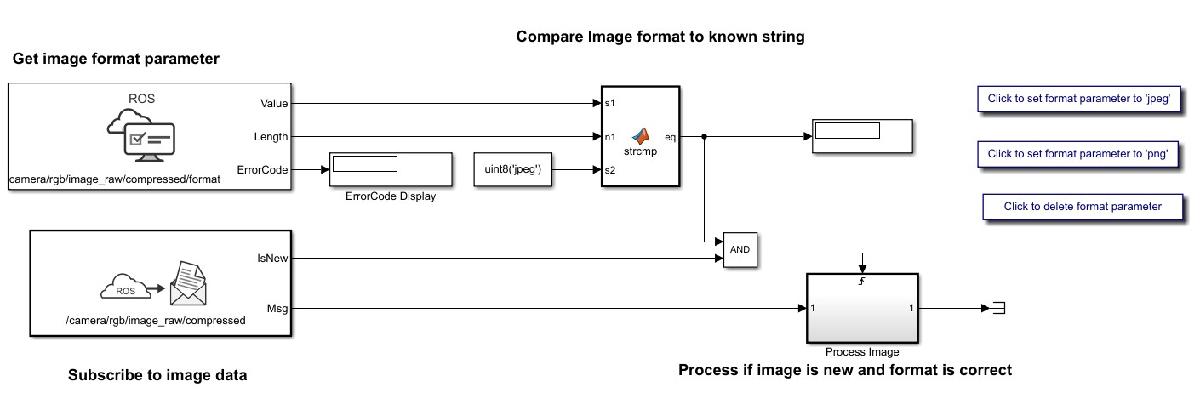

Run the attached Simulink® model. This model checks to see if the previously set camera format parameter is named 'jpeg'. To get the parameter off the server, use the Get Parameter block. Then, compare the parameter to a character vector cast as uint8 from a Constant block, using a MATLAB function block. An output of 1 means the parameters match.

open_system("rosStringParameterCompare")
sim("rosStringParameterCompare");

Status before deleting node :0
Result before deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572226 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 604 -1 -mvmOutputPipe -1 663
 572304 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 700 -1 -mvmOutputPipe -1 707
 572319 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572321 pts/3    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572226 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 604 -1 -mvmOutputPipe -1 663
 572325 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572327 pts/3    S+     0:00 grep -E ros|python

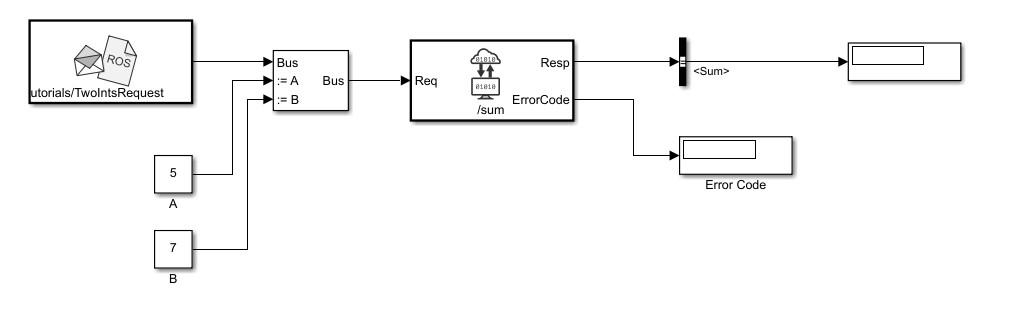

Annotation 2020-07-14 230851.jpg

Shutdown ROS network.

rosshutdown

Shutting down global node /matlab_global_node_19111 with NodeURI http://dcc959649glnxa64:37361/ and MasterURI http://localhost:53754.
Status before deleting node :0
Result before deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572226 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 604 -1 -mvmOutputPipe -1 663
 572329 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572331 pts/3    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572335 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572337 pts/3    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.20.144.70:53754.
Status before deleting core :0
Result before deleting core :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572169 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53754 -w 3
 572181 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53754 -w 3
 572338 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572340 pts/3    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 572169
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572345 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572347 pts/3    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *

The stringCompare function is defined as:

function y = stringCompare(str1,str2)
%#codegen
minLength = min(length(str1),length(str2));
st1 = str1(1:minLength);
st2 = str2(1:minLength);
y = all(st1(:)==st2(:));

Check Image Encoding Parameter for ROS Image Message

This example uses:

Open Live Script

This model shows how to access string parameters and use them to trigger subsystem operations. It gets an image format off the set up ROS parameter server. It is retrieved as a uint8 array that is compared using the strcmp MATLAB function block. When a new image is received from the Subscribe block and the format is uint8('jpeg'), it triggers the "Process Image" block to perform a task on the image data.

Connect to a ROS network and set up the ROS parameter server.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571969 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 571971 pts/3    S+     0:00 grep -E ros|python

Done in 0.43996 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
Status before getting PID :0
Result before getting PID :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 571994 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 571996 pts/3    S+     0:00 grep -E ros|python

Result:  571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3

Status: 0
PID obtained: 571974
Status after getting PID :0
Result after getting PID :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572001 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572003 pts/3    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572004 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572006 pts/3    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572007 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 597 -1 -mvmOutputPipe -1 610
 572022 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572024 pts/3    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572028 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572030 pts/3    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.20.144.70:50277.
Initializing global node /matlab_global_node_34650 with NodeURI http://dcc959649glnxa64:42689/ and MasterURI http://localhost:50277.

ptree = rosparam;

Set the "/camera/rgb/image_raw/compressed/format" parameter, and set up a publisher for the "/camera/rgb/image_raw/compressed" topic.

set(ptree,"/camera/rgb/image_raw/compressed/format","jpeg")
pub = rospublisher("/camera/rgb/image_raw/compressed","sensor_msgs/CompressedImage");

Open the Simulink® model. This model checks the image format parameter and compares the value to a uint8 cast character vector, uint8('jpeg') using a MATLAB® Function block. The boolean output is fed to an AND operator with the IsNew output of a Subscribe block that gets the image off the network. If the parameter value is correct and a new message is received, the Subsystem "Process Image" is triggered.

Run the model and use the buttons in the model to change the image format parameter and verify the strcmp function works. The eq output should be 1 when the parameter is set to 'jpeg'. While the model is running, it is expected that image messages are being published on the network.

open_system("rosImageFormatParameter")

Annotation 2020-07-14 234119.jpg

Shut down the ROS network.

rosshutdown

Shutting down global node /matlab_global_node_34650 with NodeURI http://dcc959649glnxa64:42689/ and MasterURI http://localhost:50277.
Status before deleting node :0
Result before deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572031 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 604 -1 -mvmOutputPipe -1 610
 572118 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572120 pts/3    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572126 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572128 pts/3    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.20.144.70:50277.
Status before deleting core :0
Result before deleting core :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 571974 pts/3    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2974004_1596510/tp7ae2b024_15d5_467a_9010_85ca063d2592/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 50277 -w 3
 571986 pts/3    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 50277 -w 3
 572129 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572131 pts/3    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 571974
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    887 ?        Ssl   17:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1157 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 568896 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568926 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2974004_1596510 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568927 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2974004/build.glnxa64.2974004.r000/examples/ros/build.glnxa64.2974004.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 568960 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 570388 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 607
 572136 pts/3    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 572138 pts/3    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *

The strcmp function in the MATLAB® Function block is defined as:

function eq = strcmp(s1, n1, s2)
%#codegen

% Convert to proper strings
string1 = char(s1(1:n1));
string2 = char(s2);

eq = strcmp(string1, string2);
