バイスタティック レーダー
bistaticTransmitter と bistaticReceiver を使用してバイスタティック レーダー システムをシミュレーションします。バイスタティック レーダー システムでは、送信機要素と受信機要素が同じ場所ではなく別々の場所にあります。同期、非同期、および複数の送信機と受信機のペアをサポートするバイスタティック レーダーをシミュレーションできます。bistaticFreeSpacePath を使用して、バイスタティック送信機とバイスタティック受信機の自由空間伝播パスを計算します。bistaticConstantSNR を使用して、バイスタティック定数 S/N 比の等高線または表面をプロットします。
注目の例
Non-Cooperative Bistatic Radar I/Q Simulation and Processing
Simulate I/Q samples for a non-cooperative passive bistatic radar system that has two different signals of opportunity.
Cooperative Bistatic Radar I/Q Simulation and Processing
Simulate I/Q for a cooperative bistatic system and perform subsequent signal processing for a single bistatic transmitter and receiver pair.
Parallel Simulation of Target, Clutter, and Interference Signals
Simulate clutter and interference using bistaticTransmitter and
bistaticReceiver to model both halves of a monostatic radar and
speeds up the simulation using parallel processing.
Track Targets Using Asynchronous Bistatic Radars
Builds upon the Tracking Using Bistatic Range Detections (Sensor Fusion and Tracking Toolbox) example and shows how to configure a multi-sensor multi-target tracker to track targets using asynchronous bistatic radars that report range and angles. Bistatic sensors are advantageous because the emitter part and the receiver part of the sensor are not collocated, which makes the receivers less detectable. Additionally, they allows many receivers to work with a single emitter. Therefore, bistatic sensors are becoming more common in various applications where it is beneficial to hide the receivers or reduce the amount of energy they consume.

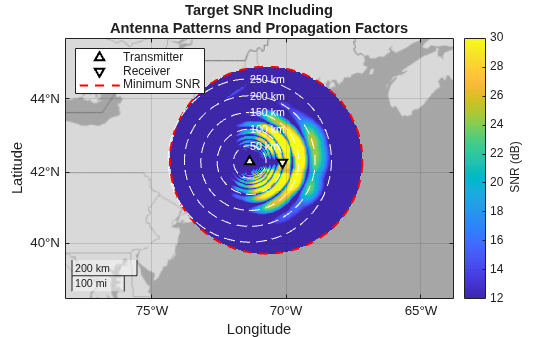

Passive Bistatic Radar Performance Assessment
Evaluate the performance of a passive bistatic radar using a typical FM radio transmitter as the illuminator of opportunity.
