translate
polyshape
の平行移動
説明
例

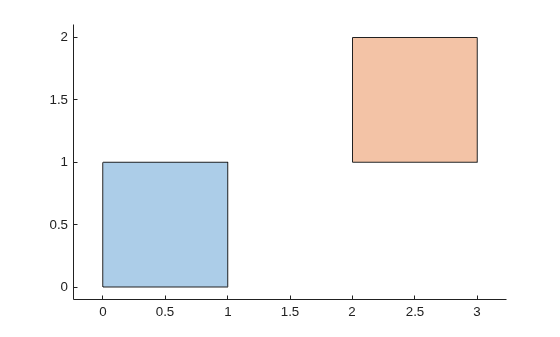

正方形の平行移動
正方形を作成し、その正方形を右に 2 単位、上に 1 単位平行移動させます。両方の正方形をプロットします。
polyin = polyshape([0 0 1 1],[1 0 0 1]);
polyout = translate(polyin,[2 1]);
plot([polyin polyout])
axis equal
入力引数
polyin
— 入力 polyshape
スカラー | ベクトル | 行列 | 多次元配列
入力 polyshape
。スカラー、ベクトル、行列または多次元配列として指定します。
データ型: polyshape
v
— 平行移動距離
2 要素の行ベクトル
平行移動距離。2 要素の行ベクトルとして指定します。v
の 1 番目の要素は x 方向に平行移動する距離で、2 番目の要素は y 方向に平行移動する距離です。正の距離は右および上への平行移動、負の移動距離は左および下への平行移動を表します。入力 polyshape
が配列の場合、この配列の各要素が v
に従って平行移動されます。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
x
— x 方向の平行移動距離
スカラー
x 方向の平行移動距離。スカラーとして指定します。正の距離は右への平行移動、負の移動距離は左への平行移動を表します。入力 polyshape
が配列の場合、この配列の各要素が x
に従って x 方向に平行移動されます。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
y
— y 方向の平行移動距離
スカラー
y 方向の平行移動距離。スカラーとして指定します。正の距離は上への平行移動、負の移動距離は下への平行移動を表します。入力 polyshape
が配列の場合、この配列の各要素が y
に従って y 方向に平行移動されます。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
拡張機能
C/C++ コード生成
MATLAB® Coder™ を使用して C および C++ コードを生成します。
使用上の注意事項および制限事項:
コード生成用に動的メモリ割り当てを有効にしなければなりません。
名前と値のペアはコンパイル時の定数でなければなりません。
バージョン履歴
R2017b で導入
