rotate
polyshape
の回転
説明
例
正方形の回転
正方形 polyin
を作成し、点 (0,0) を基準に反時計回りに 45 度回転させます。
polyin = polyshape([0 0 1 1],[1 0 0 1]); poly1 = rotate(polyin,45);
点 (1,0) を基準に polyin
を 45 度回転させます。
poly2 = rotate(polyin,45,[1 0]);

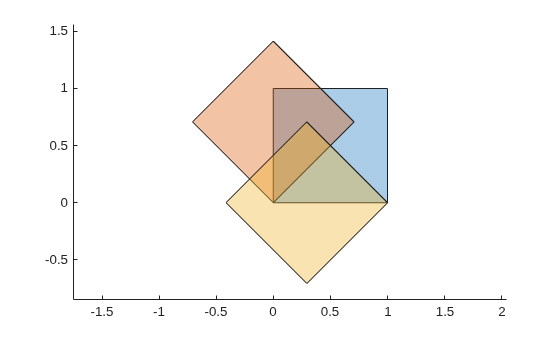

3 つの多角形をすべてプロットします。
plot([polyin poly1 poly2])
axis equal
入力引数
polyin
— 入力 polyshape
スカラー | ベクトル | 行列 | 多次元配列
入力 polyshape
。スカラー、ベクトル、行列または多次元配列として指定します。
データ型: polyshape
theta
— 回転角度
スカラー
回転角度。度単位のスカラー数値として指定します。入力 polyshape
が配列の場合、この配列の各要素が theta
度回転します。theta
が正の場合、回転は反時計回りで、theta
が負の場合は時計回りです。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
refpoint
— 基準点
[0 0]
| 2 要素の行ベクトル
基準点。x 座標と y 座標を含む 2 要素の行ベクトルとして指定します。関数 rotate
では、この基準点を基準に回転します。入力 polyshape
が配列の場合、この配列の各要素は refpoint
を基準に回転します。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
拡張機能
C/C++ コード生成
MATLAB® Coder™ を使用して C および C++ コードを生成します。
使用上の注意事項および制限事項:
コード生成用に動的メモリ割り当てを有効にしなければなりません。
名前と値のペアはコンパイル時の定数でなければなりません。
バージョン履歴
R2017b で導入
