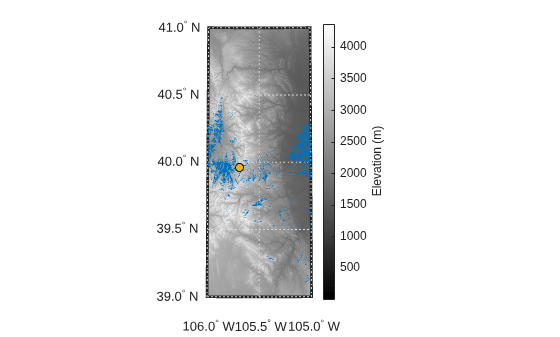

Visible area from point on or above terrain
Specify Coordinates and Heights
Specify Reference Sphere
Display Viewshed for Point on Terrain
Create sample terrain data by using the
Z = 500*peaks(100); R = georefcells([-0.1 0],[0 0.1],size(Z));
Calculate the viewshed for a sample point that is
200 meters above the terrain.
latObs = -0.027; lonObs = 0.05; [vis,visR] = viewshed(Z,R,latObs,lonObs);

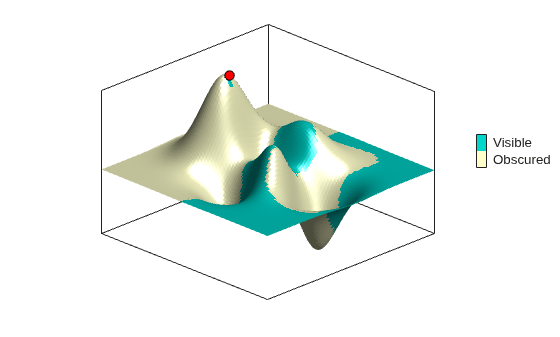

Display the viewshed as a surface on an
axesm-based map. Plot the sample point so that it appears above the terrain.
figure axesm("globe","geoid",earthRadius) meshm(vis,visR,size(Z),Z) axis tight camposm(-10,-10,1e6) camupm(0,0) [row,col] = geographicToDiscrete(R,latObs,lonObs); h = Z(row,col); plot3m(latObs,lonObs,h+200,"ko","MarkerSize",7,"MarkerFaceColor","r")
Adjust the colormap and lighting. Add a colorbar.
colormap(flipud(summer(2))) brighten(0.75) shading interp camlight cb = lcolorbar(["Obscured" "Visible"]); cb.Position = [0.85 0.5 0.02 0.1];
Display Viewshed for Point Above Terrain
Display the area that is visible by radar for an aircraft flying above the terrain. You can use the
viewshed function to model radio wave propagation in the atmosphere as straight lines on a sphere.
Load terrain elevation data for an area around the Korean peninsula. To make the water areas appear consistent on the plot, set all elevations below sea level (
korea5c<0) to the same value.
load korea5c korea5c(korea5c<0) = -1;
Specify the location of the aircraft. Then, calculate visible areas for the aircraft, at
3000 meters above mean sea level, of the surface. Model radio propagation in the atmosphere by specifying an effective radius for the reference sphere.
latObs = 34.0931; lonObs = 125.6578; hObs = 3000; hTarget = 0; rad = earthRadius; [vis1,vis1R] = viewshed(korea5c,korea5cR,latObs,lonObs,hObs,hTarget,"MSL","AGL",rad,4/3*rad);
Set up a relief map for the area by adjusting the data aspect ratio, the plot box aspect ratio, and the lighting.
figure worldmap(korea5c,korea5cR) setm(gca,"geoid",[1 0]) da = daspect; pba = pbaspect; da(3) = 7.5*pba(3)/da(3); daspect(da); camlight(90,5) camlight(0,5) material([0.25 0.8 0])

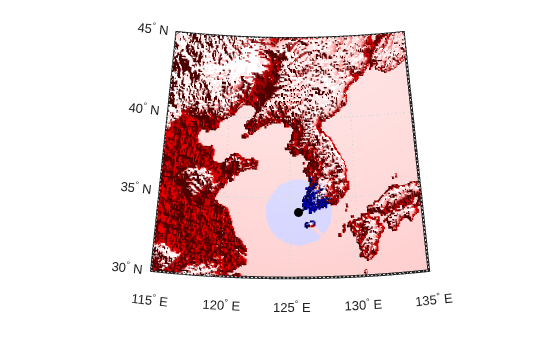

Display the terrain data, the viewshed, and the aircraft on the map. Adjust the colormap so that the visible areas appear in blue and the obscured areas appear in red. Note that some ocean areas are obscured by an island.
meshm(vis1,vis1R,size(korea5c),korea5c) plotm(latObs,lonObs,"ko","MarkerFaceColor","k") colormap([1 0 0; 0 0 1])
Calculate the viewshed again, this time calculating visible areas for the aircraft at
3000 meters of other aircraft flying above it at
5000 meters. The visible area is larger, with some of the area obscured by the island and mountains.
hTarget = 5000; [vis2,vis2R] = viewshed(korea5c,korea5cR,latObs,lonObs,hObs,hTarget,"MSL","MSL",rad,4/3*rad); clmo surface meshm(vis2,vis2R,size(korea5c),korea5c)
Z — Elevation data grid
Elevation data grid, in meters, specified as an m-by-n array.
latObs — Latitude of observer
lonObs — Longitude of observer
Longitude of the observer, in degrees, specified as a scalar.
If the longitude is outside the latitude limits of
R, then the
viewshed function issues a warning and sets all elements of
0. You can find the longitude limits
R by querying its
hObs — Height of observer
0 (default) | scalar
Height of the observer, in meters, specified as a scalar.
hTarget — Height of target points
0 (default) | scalar
Height of the target points, in meters, specified as a scalar.
hObsRef — Height reference for observer
"AGL" (default) |
Height reference for the observer, specified as one of these options:
hObsto the terrain (ground level).
hObsto the sphere (mean sea level).
hTargetRef — Height reference for target points
"AGL" (default) |
Height reference for the target points, specified as one of these options:
"AGL"— Reference the target points to the terrain (ground level).
"MSL"— Reference the target points to the sphere (mean sea level).
rad — Radius of reference sphere in meters
6371000 (default) | positive scalar
Radius of the reference sphere in meters, specified as a positive scalar.
effectiveRad — Effective radius of reference sphere in meters
Effective radius of the reference sphere in meters, specified as a positive scalar.
This argument enables you to account for the curvature of signal paths due to
refraction in the atmosphere. For example, you can treat radio propagation in the
atmosphere as straight-line propagation on a sphere with 4/3 the radius of the Earth by
To calculate line-of-sight visibility for a flat Earth, specify this argument as
If you do not specify this argument, then the function uses the value of
vis — Visibility indicator
m-by-n array containing
Visibility indicator, returned as an m-by-n
1 values. The size of
vis matches the size of
A value of
1indicates that the observer has line-of-sight visibility with the target point.
A value of
0indicates that the line of sight between the observer and the target point is obscured by terrain.
Version HistoryIntroduced before R2006a
viewshed will not accept referencing vectors or referencing matrices as input
viewshed function will not accept referencing vectors or
referencing matrices as input in a future release. Use a geographic raster reference object,
specified as a
GeographicPostingsReference object, as input instead. Reference objects have
several advantages over referencing vectors and referencing matrices.
Unlike referencing vectors and referencing matrices, reference objects have properties that document the size of the associated raster, its geographic limits, and the direction of its rows and columns.
You can manipulate the limits of geographic rasters associated with reference objects using the
You can manipulate the size and resolution of geographic rasters associated with reference objects using the
To update your code, create a geographic reference object.
Create a geographic reference object for a raster of cells by using the
Create a geographic reference object for a raster of regularly posted samples by using the
Convert from a referencing vector to a geographic reference object by using the
Convert from a referencing matrix to a geographic reference object by using the
Once you have created a reference object, replace uses of the referencing vector or referencing matrix in your code with the reference object.
