crop
説明
例
多重解像度イメージのトリミング

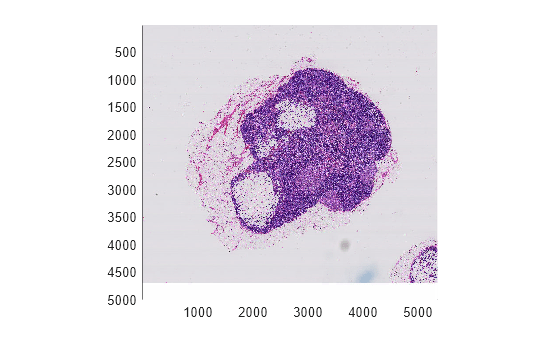

ツールボックスに含まれるサンプル イメージから、ブロック化されたイメージを作成します。
bim = blockedImage('tumor_091R.tif');
figure
bigimageshow(bim);
イメージ サイズとワールド座標のプロパティを検証します。
bim.Size
ans = 3×3
5000 5358 3
1250 1340 3
625 670 3
bim.WorldStart
ans = 3×3
0.5000 0.5000 0.5000
0.5000 0.5000 0.5000
0.5000 0.5000 0.5000
bim.WorldEnd
ans = 3×3
103 ×
5.0005 5.3585 0.0035
5.0005 5.3585 0.0035
5.0005 5.3585 0.0035

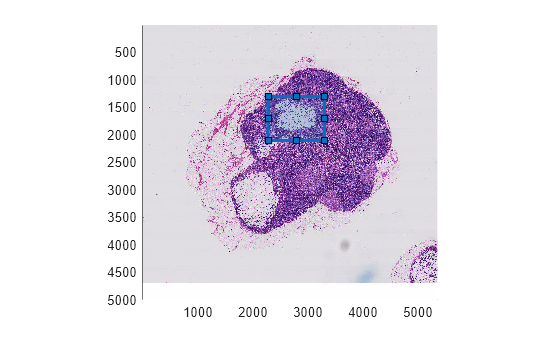

トリミング領域となる関心領域をイメージ上で定義します。
hrect = drawrectangle('Position', [2280 1300 1024 800]);
領域のワールド座標を取得します。
wstartxy = hrect.Position(1:2); wendxy = wstartxy + hrect.Position(3:4);
最後の次元であるワールド座標を含め、行と列の並びに変換します。
wstart = [wstartxy(2), wstartxy(1), bim.WorldStart(1,3)]; wend = [wendxy(2), wendxy(1), bim.WorldEnd(1,3)];
イメージの添字に変換します。このステップはオプションですが、既定以外のワールド座標を使用する場合に役立ちます。
subs = world2sub(bim, [wstart; wend]); cbim = crop(bim, subs(1,:), subs(2,:));
トリミングしたイメージのプロパティを検証します。
cbim.Size
ans = 3×3
801 1025 3
201 258 3
101 130 3
cbim.WorldStart
ans = 3×3
103 ×
1.2995 2.2795 0.0005
1.2965 2.2757 0.0005
1.2965 2.2717 0.0005

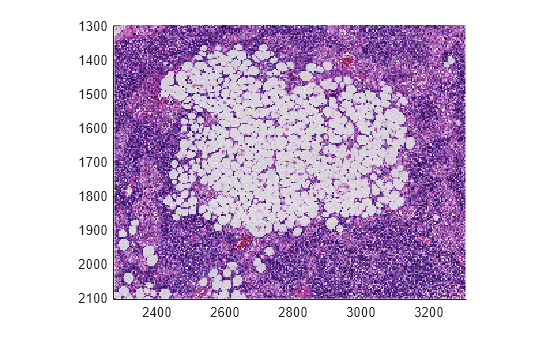

figure
% Axes limits reflect cropped coordinates
bigimageshow(cbim);
入力引数
bim
— ブロック化されたイメージ
blockedImage
オブジェクト
ブロック化されたイメージ。blockedImage
オブジェクトとして指定します。
cstart
— トリミング ウィンドウの最初のピクセル
1 行 N 列の整数値のベクトル
ピクセルの添字で表された、トリミング ウィンドウの最初のピクセル。N 次元の blockedImage
について、1 行 N 列の整数値のベクトルとして指定します。cstart
の要素が N 個より少ない場合、blockedImage
は 1 を使ってイメージを拡張します。
cend
— トリミング ウィンドウの最後のピクセル
1 行 N 列の整数値のベクトル
ピクセルの添字で表された、トリミング ウィンドウの最後のピクセル。1 行 N 列の整数値のベクトルとして指定します。cend
の要素が N 個より少ない場合、blockedImage
は、最も細かい解像度レベルの Size
に対応する要素でイメージを拡張します。
出力引数
cbim
— トリミング済みのブロック化されたイメージ
blockedImage
オブジェクト
トリミング済みのブロック化されたイメージ。トリミング ウィンドウに含まれるすべての解像度レベルのイメージ データを含む blockedImage
オブジェクトとして返されます。
バージョン履歴
R2021a で導入
