# cusumtest

Cusum test for structural change

## Syntax

## Description

conducts a cusum test on the variables of the input table or timetable. The
response variable in the regression is the last table variable, and all other
variables are the predictor variables. To select a different response variable
for the regression, use the `h`

= cusumtest(`Tbl`

)`ResponseVariable`

name-value
argument. To select different predictor variables, use the
`PredictorNames`

name-value argument.

uses additional options specified by one or more name-value arguments. Some
options control the number of tests to conduct. The following conditions apply
when `h`

= cusumtest(___,`Name=Value`

)`cusumtest`

conducts multiple tests:

`cusumtest`

treats each test as separate from all other tests.All outputs expand their singleton dimension to contain results from each test.

For example, ```
cusumtest(Tbl,ResponseVariable="RGDP",Test=["cusum"
cusumsq"])
```

conducts two cusum tests using `GDP`

as the response variable in the regressions and all other variables in the table
`Tbl`

as predictors. The first test uses the cusum test
statistic and the second test uses the cusum of squares test statistic.

`[`

also returns the following decision statistics from conducting a cusum test,
using any input-argument combination in the previous syntaxes:`h`

,`H`

,`Stat`

,`W`

,`B`

]
= cusumtest(___)

`h`

, the test decision`H`

, the sequence of decisions for each iteration of the test`Stat`

, the sequence of test statistics`W`

, the sequence of recursive residuals`B`

, the sequence of coefficient estimates

`cusumtest(___)`

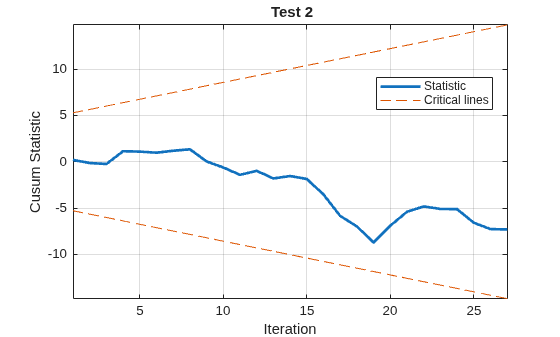

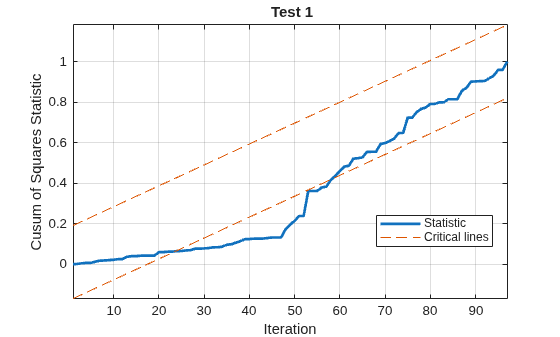

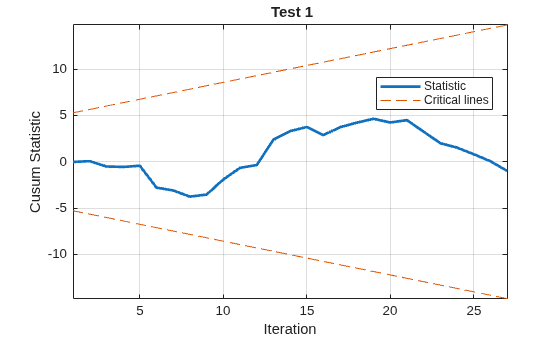

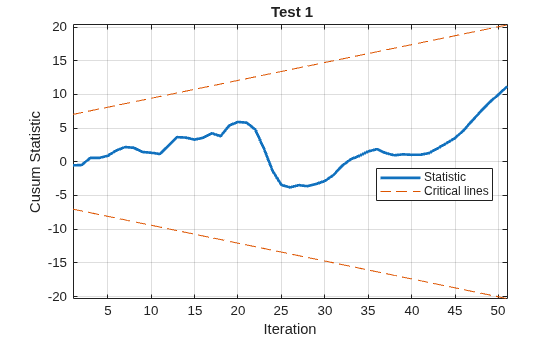

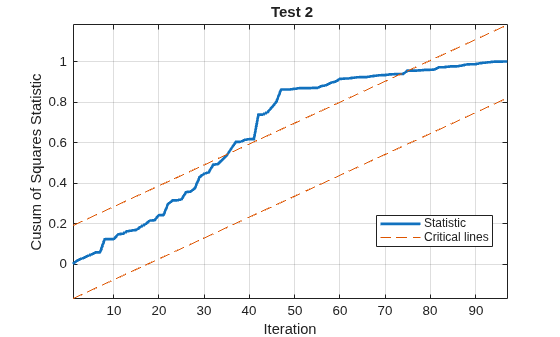

plots both the sequence of
cusums and the critical lines resulting from the cusum tests.

`cusumtest(`

plots on the axes specified by `ax`

,___)`ax`

instead of
the current axes (`gca`

). `ax`

can precede any of the input
argument combinations in the previous syntaxes.

`[___,`

additionally returns handles to plotted graphics objects. Use elements of
`sumPlots`

]
= cusumtest(___)`sumPlots`

to modify properties of the plot after you
create it.

## Examples

## Input Arguments

## Output Arguments

## Limitations

Cusum tests have little power to detect structural changes in the following cases.

Late in the sample period

When multiple changes produce cancellations in the cusums

## More About

## Tips

The cusum of squares test:

Is a “useful complement to the cusum test, particularly when the departure from constancy of the [recursive coefficients] is haphazard rather than systematic” [1]

Has greater power for cases in which multiple shifts are likely to cancel

Is often suggested for detecting structural breaks in volatility

`Alpha`

specifies the nominal significance levels for the tests. The actual size of a test depends on various assumptions and approximations that`cusumtest`

uses to compute the critical lines. Plots of the recursive residuals are the best indicator of structural change. Brown, et al. suggest that the tests “should be regarded as yardsticks for the interpretation of data rather than leading to hard and fast decisions” [1].To produce basic diagnostic plots of the recursive coefficient estimates having the same scale for test

, enter`n`

plot(B(:,:,

*n*)')`recreg`

produces similar plots, optionally using robust standard error bands.

## Algorithms

`cusumtest`

handles initially constant predictor data using the method suggested in [1]. If a predictor's data is constant for the first`numCoeffs`

observations and this results in multicollinearity with an intercept or another predictor, then`cusumtest`

drops the predictor from regressions and the computation of recursive residuals until its data changes. Similarly,`cusumtest`

temporarily holds out terminally constant predictors from backward regressions. Initially constant predictors in backward regressions, or terminally constant predictors in forward regressions, are not held out by`cusumtest`

and can lead to rank deficiency in terminal iterations.`cusumtest`

computes critical lines for inference in essentially different ways for the two test statistics. For cusums,`cusumtest`

solves the normal CDF equation in [1] dynamically for each value of`Alpha`

. For the cusums of squares test,`cusumtest`

interpolates parameter values from the table in [2], using the method suggested in [1]. Sample sizes with degrees of freedom less than 4 are below tabulated values, and`cusumtest`

cannot compute critical lines. Sample sizes with degrees of freedom greater than 202 are above tabulated values, and`cusumtest`

uses the critical value associated with the largest tabulated sample size.

## References

[1] Brown, R. L., J. Durbin, and J. M. Evans. "Techniques for
Testing the Constancy of Regression Relationships Over Time." *Journal of the
Royal Statistical Society, Series B*. Vol. 37, 1975, pp.
149–192.

[2] Durbin, J. "Tests for Serial Correlation in Regression
Analysis Based on the Periodogram of Least Squares Residuals."
*Biometrika*. Vol. 56, 1969, pp. 1–15.

## Version History

**Introduced in R2016a**
