Upsampler
Libraries:
DSP HDL Toolbox /
Signal Operations
Description
The Upsampler block upsamples an input signal by adding L–1 zeros between input samples, where L is the upsampling factor. The block supports these combinations of input and output data.
Scalar input and scalar output
Scalar input and vector output
Vector input and vector output
The block provides an architecture suitable for HDL code generation and hardware deployment.
Note
You can also generate HDL code for this hardware-optimized algorithm, without creating a Simulink® model, by using the DSP HDL IP Designer app. The app provides the same interface and configuration options as the Simulink block.

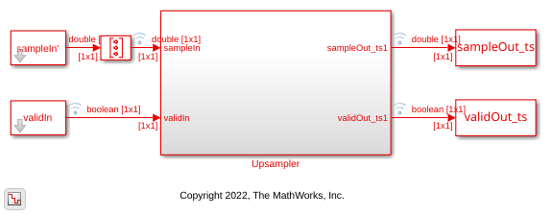

Examples
Ports
Input
data — Input data
scalar | column vector
Input data, specified as a scalar or a column vector with a length up to 64. The input data must be an integer or a fixed-point value with a word length less than or equal to 128.
The double
and
single
data types are supported for simulation, but not for HDL
code generation.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
valid — Valid input data indicator
0
| 1
Control signal that indicates whether the input data is valid. When this value is
1
, the block accepts the values on the data
input port. When this value is 0
, the block ignores the values on
the data input port.
Data Types: Boolean
reset — Option to clear internal states
0
| 1
Control signal that clears the internal states. When this value is
1
, the block stops the current calculation and clears its
internal states. When this value is 0
and
valid is 1
, the block captures data for
processing.
For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.
Dependencies
To enable this port, on the Control Ports tab, select the Enable reset input port parameter.
Data Types: Boolean
Output
data — Upsampled data
scalar | column vector
Upsampled data, returned as a scalar or a column vector with a length up to 1 to 128.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
valid — Valid output data indicator
0
| 1
Control signal that indicates whether data from the data
output port is valid. When this value is 1
, the block returns valid
data on the data output port. When this value is
0
, the values on the data output port are
not valid.
Data Types: Boolean
ready — Block ready indicator
0
| 1
Control signal that indicates whether the block is ready for new input data on the
next cycle. When this value is 1
, you can specify the data and valid inputs for
the next time step. When this value is 0
, the block ignores any
input data in the next time step.
Dependencies
To enable this port, on the Control Ports tab, select the Enable ready output port parameter.
Data Types: Boolean
Parameters
Main
Upsample factor (L) — Upsampling factor
3
(default) | integer in the range [1, 2.^16]
Specify the upsampling factor by which the block increases the input sampling rate.
Sample offset (0 to L-1) — Sample offset
0
(default) | integer in the range [0, 2.^16 – 1]
Specify the sample offset as an integer in the range [0, Upsample factor (L) – 1].
Minimum number of cycles between valid input samples — Minimum number of cycles between valid input samples
1
(default) | factor or multiple of Upsample factor (L) | integer in the range [1, Inf]
Specify the minimum number of cycles between the valid input samples as a factor or multiple of Upsample factor (L) or an integer in the range [1, Inf] based on the type of input and output data.
Input Data | Output Data | Minimum Number of Cycles Between Valid Input Samples |
---|---|---|
Scalar | Scalar | Greater than or equal to Upsample factor (L) |
Scalar | Vector | Factor of Upsample factor (L) |
Vector | Vector | Integer in the range [1, Inf] |
Control Ports
Enable reset input port — Option to enable reset input port
off
(default) | on
Select this parameter to enable the reset input port. The reset signal implements a local synchronous reset of the data path registers.
For more reset considerations, see Tips.
Enable ready output port — Option to enable ready output port
off (default) | on
Select this parameter to enable the ready output port. This port indicates whether the block is ready for new input data.
Algorithms
Latency
The latency of the block changes according to the length of the input. The latency of
the block is 1 when you set the Upsample factor (L) parameter to
1
. This table shows the latency of the block.
Input Data | Output Data | Latency in Clock Cycles |
---|---|---|
Scalar | Scalar | 3 |
Scalar | Vector | 3 |
Vector | Vector | 2 |
This figure shows the output of the block with the default configuration, when you set
the Upsample factor (L) and Sample offset (0 to
L-1) parameters to 3
and 0
,
respectively. The latency of the block for a scalar input is three clock cycles.
This figure shows the output of the block when you set the Upsample factor
(L) parameter value to 8
and the Sample offset
(0 to L-1) parameter to 1
. The latency of the block is
three clock cycles.
This figure shows the output of the block for a two-element column vector input when
you set the Upsample factor (L) and Sample offset (0 to
L-1) parameters to 3
and 0
,
respectively. The latency of the block is two clock cycles.
This figure shows the output of the block for an eight-element column vector input
when you set the Upsample factor (L) and Sample offset (0
to L-1) parameters to 4
and 0
,
respectively. The latency of the block is two clock cycles.
Performance
The performance of the synthesized HDL code varies with your target and synthesis options. The performance also varies based on the input data type.
This table shows the resource and performance data synthesis results of the block for a
scalar input and for a 16-element column vector input of type
fixdt(1,16,0)
when you set the Upsample factor (L)
and Sample offset (0 to L-1) parameters to 8
and
0
, respectively. The generated HDL targets the AMD®
Zynq®- 7000 ZC706 Evaluation Board.
Input Data | Slice LUTs | Slice Registers | Maximum Frequency in MHz |
---|---|---|---|
Scalar | 35 | 60 | 900.81 |
Vector | 384 | 514 | 926.29 |
The resources and frequencies vary based on the type of input data and the value of Upsample factor (L), as well as other parameter values you select in the block mask. Using a vector input can increase the throughput, however, doing so also increases the number of hardware resources that the block uses.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline | Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is
|
InputPipeline | Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
OutputPipeline | Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
Version History
Introduced in R2022b
