Biquad Filter
Libraries:
DSP HDL Toolbox /
Filtering
Description
A biquad filter is a form of infiniteimpulse response (IIR) filter where the numerator and denominator are split into a series of secondorder sections connected by gain blocks. This type of filter can replace a large FIR filter that uses an impractical amount of hardware resources. Designs often use biquad filters as DC blocking filters or to meet a specification originally implemented with an analog filter, such as a preemphasis filter.

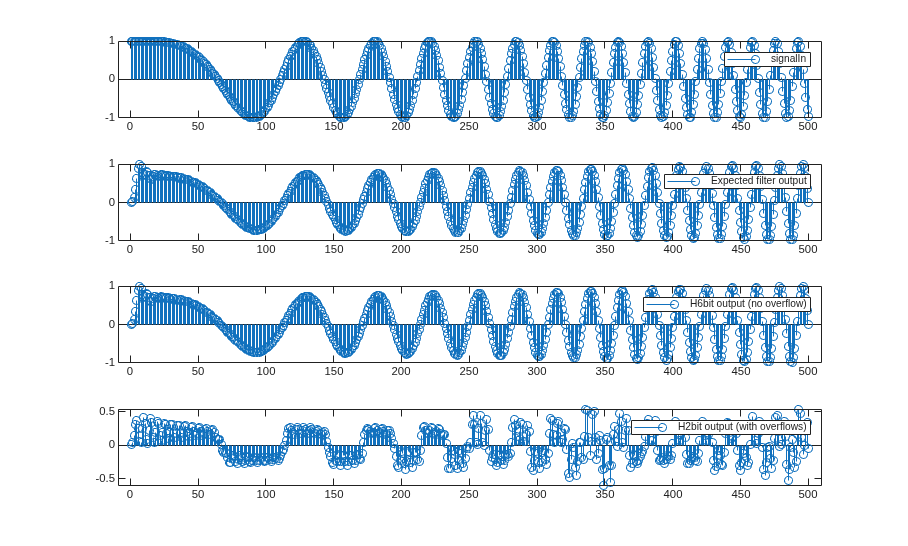

Examples
Ports
Input
data — Input data
scalar or column vector of real values
Input data, specified as a scalar or column vector of real values. When the input has an integer or fixedpoint data type, the block uses fixedpoint arithmetic for internal calculations.
Vector input is supported only when you set Filter structure
to Pipelined feedback form
. The block accepts vectors of up
to 64 samples, but large vector sizes can make the calculation of internal data types
challenging. Vector sizes of up to 16 samples are practical for hardware
implementation.

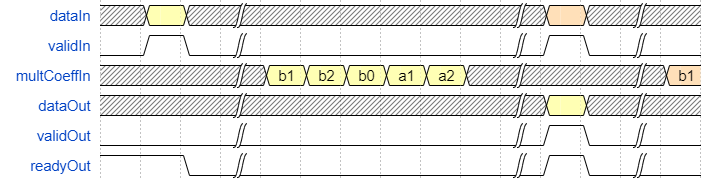

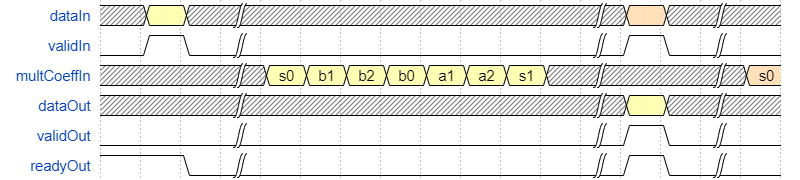

When you set Filter structure to Direct form I
fully serial
, the block has an output ready
signal that indicates when the block is ready for new input. You apply input data only
when the output ready signal is 1
(true
). Your design can react to the ready
signal to provide the next input sample, or you can space your input data with enough
cycles in between to process each sample. The block icon displays the cycles required
to process one sample.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
Data Types: fixed point
 single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
valid — Indicates valid input data
scalar
Control signal that indicates if the input data is valid. When
valid is 1
(true
), the
block captures the values from the input data port. When
valid is 0
(false
), the
block ignores the values from the input data port.
Data Types: Boolean
Output
data — Filtered output data
scalar or column vector of real values
Filtered output data, returned as a scalar or column vector of real values. The output dimensions match the input dimensions. When the input data type is a floatingpoint type, the output data inherits the data type of the input data. When the input data type is an integer type or a fixedpoint type, the Output parameter on the Data Types tab controls the output data type.
Data Types: fixed point
 single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
valid — Indicates valid output data
scalar
Control signal that indicates if the data from the output
data port is valid. When valid is
1
(true
), the block returns valid data from
the output data port. When valid is
0
(false
), the values from the output
data port are not valid.
Data Types: Boolean
ready — Indicates block is ready for new input data
scalar
Control signal that indicates the block is ready for new input data sample on the
next cycle. When ready is 1
(true
), you can specify the data
and valid inputs for the next time step. When
ready is 0
(false
), the block ignores any input data in the next time step.

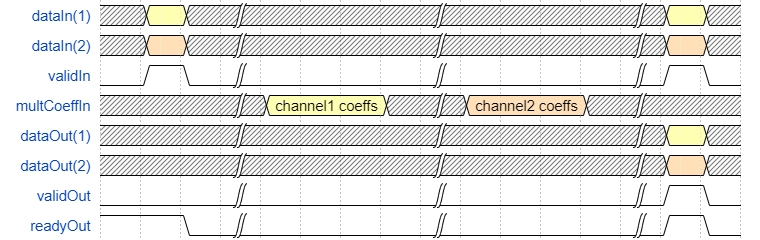

When using the fully serial architecture, the block processes one sample at a
time. If your design waits for this block to return ready set to 0
(false
) before
setting the input valid to 0
(false
), then one additional cycle of input data arrives at the
port. The block stores this additional data while processing the current data, and
does not set ready to 1
(true
) until your model processes the additional input
data.
Dependencies
To enable this port, set Filter structure to
Direct form I fully serial
.
Data Types: Boolean
Parameters
Main
Filter structure — HDL filter architecture
Direct form II
(default)  Direct form II transposed
 Pipelined feedback form
 Direct form I fully serial
Both the Direct form II
and Direct form II
transposed
architectures are pipelined and quantized to fit well into
FPGA DSP blocks. The output of these filters matches the output of the DSP System Toolbox™ System objects dsp.SOSFilter
and dsp.FourthOrderSectionFilter
. These architectures minimize the number of
multipliers used by the filter but have a critical path through the feedback loop and
sometimes cannot achieve higher clock rates. These architectures do not support vector
input.
Pipelined feedback form
implements a pipelined
architecture that uses more multipliers than either directform II structure, but
achieves higher clock rates after synthesis. Vector input is supported only when you
use Pipelined feedback form
. The output of the pipelined
filter is slightly different than the DSP System Toolbox functions dsp.SOSFilter
and dsp.FourthOrderSectionFilter
because of the timing of data samples applied
in the pipelined filter stages.
Direct form I fully serial
implements a fully serial
architecture that uses only one multiplier. When you select this option, the block
stores the numerator, denominator, and scale values in the same ROM. You can control
the data type of the ROM by using the Coefficients data type
parameter. When you select this architecture, the output ready
port appears on the block. The ready signal indicates when the
block is ready for new input data. Apply input data only when
ready is 1
(true
). This
architecture does not support vector input.
Numerator coefficients of filter — Coefficients for numerator
[1,2,1]
(default)  NumSectionsby3 matrix
Specify the numerator coefficients as a matrix of NumSectionsby3 values. NumSections is the number of secondorder filter sections. The block infers the number of filter sections from the size of the numerator and denominator coefficients. The numerator coefficient and denominator coefficient matrices must be the same size. The default filter has one section.
Denominator coefficients of filter — Coefficients for denominator
[1,.1,.2]
(default)  NumSectionsby3 matrix
Specify the denominator coefficients as a matrix of
NumSectionsby3 values. The block assumes the first denominator
coefficient of each section is 1.0
. NumSections
is the number of secondorder filter sections. The block infers the number of sections
from the size of the numerator and denominator coefficients. The numerator coefficient
and denominator coefficient matrices must be the same size. The default filter has one
section.
Scale values of filter — Gain values applied before and after secondorder filter sections
[1]
(default)  vector of 1 to NumSections+1 values
Specify the gain values as a vector of up to NumSections+1 values. NumSections is the number of secondorder filter sections. The block infers the number of sections from the size of the numerator and denominator coefficients. If the vector has only one value, the block applies that gain before the first section. If you specify fewer values than there are filter sections, the block sets the remaining section gain values to one. The diagram shows a 3section filter and the locations of the four scale values before and after the sections.
Implementing these gain factors outside the filter sections reduces the multipliers needed to implement the numerator of the filter.
Data Types
Rounding mode — Rounding mode for typecasting the output
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Zero
Rounding mode for typecasting the output and accumulator values to the data types specified by the Output and Accumulator parameters. When the input data type is floating point, the block ignores this parameter. For more details, see Rounding Modes.
Saturate on integer overflow — Overflow handling for typecasting the output
off
(default)  on
Overflow handling for typecasting the output and accumulator values to the data types specified by the Output and Accumulator parameters. When the input data type is floating point, the block ignores this parameter. For more details, see Overflow Handling.
Numerator — Data type of numerator coefficients
Inherit: Same word length as first
input
(default)  <data type expression>
The block casts the numerator coefficients to this data type. The quantization rounds to the nearest representable value and saturates on overflow. When the input data type is floating point, the block ignores this parameter.
The block returns a warning if the data type of the coefficients does not have enough fractional length to represent the coefficients accurately.
Dependencies
To enable this parameter, set Filter structure to
Direct form II transposed
, Direct form
II
, or Pipelined feedback form
.
Denominator — Data type of denominator coefficients
Inherit: Same word length as first
input
(default)  <data type expression>
The block casts the denominator coefficients to this data type. The quantization rounds to the nearest representable value and saturates on overflow. When the input data type is floating point, the block ignores this parameter.
The block returns a warning if the data type of the coefficients does not have enough fractional length to represent the coefficients accurately.
Dependencies
To enable this parameter, set Filter structure to
Direct form II transposed
, Direct form
II
, or Pipelined feedback form
.
ScaleValues — Data type of gain
Inherit: Same word length as first
input
(default)  <data type expression>
The block casts the scale values to this data type. The quantization rounds to the nearest representable value and saturates on overflow. When the input data type is floating point, the block ignores this parameter.
Dependencies
To enable this parameter, set Filter structure to
Direct form II transposed
, Direct form
II
, or Pipelined feedback form
.
Coefficients — Data type of coefficient memory when using serial filter architecture
Inherit: Same word length as first
input
(default)  <data type expression>
The block casts the numerator, denominator, and scale values to this data type and stores them in an eightelement memory of this word length. The quantization rounds to the nearest representable value and saturates on overflow. When the input data type is floating point, the block ignores this parameter.
Dependencies
To enable this parameter, set Filter structure to
Direct form I fully serial
.
Accumulator — Data type of accumulator signals within each section
Inherit: Same as first input
(default)  <data type expression>
The block casts the internal accumulator signals (as indicated in the diagrams in the Algorithms section) to this data type. The quantization uses the settings of the Rounding mode and Saturate on integer overflow parameters. When the input data type is floating point, the block ignores this parameter.
Output — Data type of filter output
Inherit: Inherit via internal
rule
(default)  Inherit: Same as first input
 <data type expression>
The block casts the output of the filter to this data type. The quantization uses the settings of the Rounding mode and Saturate on integer overflow parameters. When the input data type is floating point, the block ignores this parameter.
Algorithms
The direct form II and direct form II transposed architectures are pipelined and quantized to fit well into FPGA DSP blocks. The architecture diagrams show the accumulator quantization points and pipeline registers for the direct form II and direct form II transposed architectures. The dashed lines indicate how the multiplyadd operation fits into a DSP block on an FPGA.


The transposed biquad filter implementations have a long critical path through the feedback loop between poles z^{1} and z^{2}. They use the lowest number of multipliers but are not suitable for highspeed applications.
The pipelined biquad architecture uses more multipliers but reduces the critical path and achieves higher clock rates. The filter uses the Parhi method [1], which adds pipeline registers by increasing the order of the denominator, and then compensates for the modified denominator by adding poles in the numerator. The pipelined denominator uses order z^{4} and z^{8} rather than z^{1} and z^{2}. Since the poles are less than one for a stable filter, the poles from the higher orders are smaller than the starting values, which adds to filter stability.
To support framebased (vector) input, the pipelined architecture increases the order of
the denominator to the power of the input size. A framebased pipelined denominator uses
z^{N*4} and
z^{N*8}, where N is the
size of the input vector. The new numerator that compensates for the additional poles in the
denominator has 2*N*41
coefficients. This
implementation uses more resources but supports highthroughput applications.

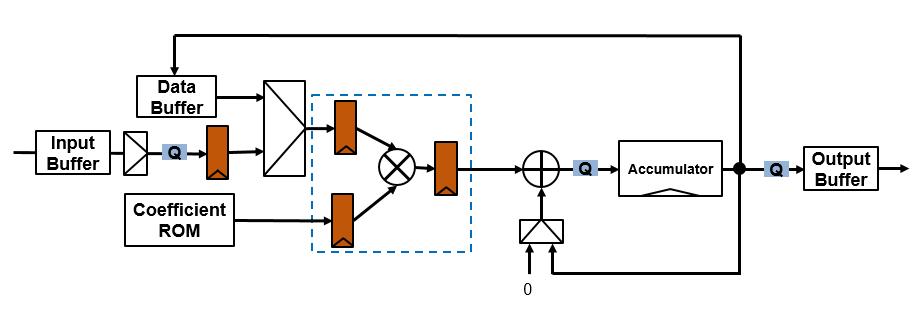

The fully serial architecture implements a direct form I architecture that uses one multiplier. The block stores the coefficients and scale values in an eightelement ROM. The data buffer stores the delay values for the input and output delay lines. The architecture diagram shows the quantization points and pipeline registers. The multiplier uses fullprecision data types. The data path is quantized before the accumulator, and the resulting data type at the output of the accumulator also applies to the data buffer. The multiplier is pipelined to fit to a DSP block on an FPGA, as shown by the dashed line box.
Performance
For a comparison of hardware resource use and synthesized clock speed of the three biquad filter architectures, see High Performance DC Blocker for FPGA.
References
[1] Chung, JinGyun, and Keshab K. Parhi. Pipelined Lattice and Wave Digital Recursive Filters. Boston: Springer US, 1996. https://doi.org/10.1007/9781461313076.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink^{®} accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

Version History
Introduced in R2022aR2023a: Minimum resource architecture
The block now has the option to set the Filter structure parameter
to Direct form I fully serial
to implement a fully serial
architecture that uses only one multiplier. When you select this option, the block stores
the numerator, denominator, and scale values in the same ROM, and you can control the data
type of the ROM by using the Coefficient data type parameter. When you
select this architecture, the block has an output ready signal that
indicates when the block is ready for new input. You can apply input data only when the
output ready signal is 1
(true
).
