readStatusRegister

Class: dlhdl.Workflow
Namespace: dlhdl

Read debug status registers

Since R2024a

Description

status = readStatusRegister(workflowObject,registerName) returns a structure that contains the tile information, debug register names and descriptions, and a layer graph that shows the order of execution of layers on the FPGA.

example

Input Arguments

expand all

Deep learning network deployment options, specified as a dlhdl.Workflow object.

Name of status register, specified as one of these values:

ValueDebug Status Registers
"ALL"Returns the status of all debug registers
"CONV"Returns the status of the CONVLayerStartCount, CONVLayerEndCount, and CONVLayerActive registers
"FC"Returns the status of the FCLayerStartCount, FCLayerEndCount, and FCLayerActive registers
"Custom"Returns the status of the CustomLayerStartCount, CustomLayerEndCount, and CustomLayerActive registers
"DLStart"Returns the status of the DLStart register
"CONVLayerStartCount"Returns the status of the CONVLayerStartCount register
"CONVLayerEndCount"Returns the status of the CONVLayerEndCount register
"CONVLayerActive"Returns the status of the CONVLayerActive register
"FCLayerStartCount"Returns the status of the FCLayerStartCount register
"FCLayerEndCount"Returns the status of the FCLayerEndCount register
"FCLayerActive"Returns the status of the FCLayerActive register
"CustomLayerStartCount"Returns the status of CustomLayerStartCount register
"CustomLayerEndCount"Returns the status of the CustomLayerEndCount register
"CustomLayerActive"Returns the status of the CustomLayerActive register
"FrameStartCount"Returns the status of the FrameStartCount register
"FrameEndCount"Returns the status of the FrameEndCount register
"DLDone"Returns the status of the DLDone register

Data Types: char | string

Output Arguments

expand all

Status of the debug registers, returned as a structure array with these fields:

Field NameDescriptionValue
TileInformationA table that contains the conv layer names and number of tiles in each conv layer.table
DebugRegistersA table that contains the debug register names and their values. To learn more about the debug status registers, see Interface with the Deep Learning Processor IP Core.table
OrdergraphA layer graph that shows the order of execution of layers on the FPGA.LayerGraph

Examples

expand all

This example shows how to debug hardware stalls for a deployed ResNet-18 network by reading the debug register status information. You can emulate a hardware stall by sending incorrect data to the double data rate (DDR) memory. You can identify the layer that causes the stall by using the debug status register information.

Prerequisites

  • Xilinx ZCU102 SoC development kit.

  • Deep Learning HDL Toolbox™

  • Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC

  • Deep Learning Toolbox™

Load the Pretrained Network

To load the pretrained network Resnet-18 network, enter:

net =  resnet18;

View the layers of the network by using the Deep Network Designer app.

deepNetworkDesigner(net)

Create Target Object

Define the target FPGA board programming interface by using the dlhdl.Target object. Specify that the interface is for a Xilinx® board with an JTAG interface.

hTarget = dlhdl.Target("Xilinx",Interface="JTAG");

This example uses the Xilinx ZCU102 board to deploy the deep learning processor. Use the hdlsetuptoolpath function to add the Xilinx Vivado synthesis tool path to the system path.

hdlsetuptoolpath('ToolName','Xilinx Vivado','ToolPath','C:\Xilinx\Vivado\2023.1\bin\vivado.bat');

Prepare Network for Deployment

Prepare the network for deployment by creating a dlhdl.Workflow object. Specify the network and bitstream name. Ensure that the bitstream name matches the data type and the FPGA board. In this example, the target FPGA board is the Xilinx® Zynq® UltraScale+™ MPSoC ZCU102 board. The bitstream uses single data type.

hW = dlhdl.Workflow(Network = net, Bitstream = "zcu102_single", Target = hTarget)
hW =
  Workflow with properties:

      Network: [1×1 DAGNetwork]
    Bitstream: 'zcu102_single'
       Target: [1×1 dnnfpga.hardware.TargetJTAG]

Compile the Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment.

dn = compile(hW)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_single.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
### The network includes the following layers:
     1   'data'                              Image Input                  224×224×3 images with 'zscore' normalization                          (SW Layer)
     2   'conv1'                             2-D Convolution              64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
     3   'conv1_relu'                        ReLU                         ReLU                                                                  (HW Layer)
     4   'pool1'                             2-D Max Pooling              3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
     5   'res2a_branch2a'                    2-D Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
     6   'res2a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
     7   'res2a_branch2b'                    2-D Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
     8   'res2a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
     9   'res2a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    10   'res2b_branch2a'                    2-D Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    11   'res2b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    12   'res2b_branch2b'                    2-D Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    13   'res2b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    14   'res2b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    15   'res3a_branch2a'                    2-D Convolution              128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
    16   'res3a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    17   'res3a_branch2b'                    2-D Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    18   'res3a_branch1'                     2-D Convolution              128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
    19   'res3a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    20   'res3a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    21   'res3b_branch2a'                    2-D Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    22   'res3b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    23   'res3b_branch2b'                    2-D Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    24   'res3b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    25   'res3b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    26   'res4a_branch2a'                    2-D Convolution              256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    27   'res4a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    28   'res4a_branch2b'                    2-D Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    29   'res4a_branch1'                     2-D Convolution              256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    30   'res4a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    31   'res4a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    32   'res4b_branch2a'                    2-D Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    33   'res4b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    34   'res4b_branch2b'                    2-D Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    35   'res4b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    36   'res4b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    37   'res5a_branch2a'                    2-D Convolution              512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    38   'res5a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    39   'res5a_branch2b'                    2-D Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'res5a_branch1'                     2-D Convolution              512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    41   'res5a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    42   'res5a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    43   'res5b_branch2a'                    2-D Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    44   'res5b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
    45   'res5b_branch2b'                    2-D Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    46   'res5b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    47   'res5b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
    48   'pool5'                             2-D Global Average Pooling   2-D global average pooling                                            (HW Layer)
    49   'fc1000'                            Fully Connected              1000 fully connected layer                                            (HW Layer)
    50   'prob'                              Softmax                      softmax                                                               (SW Layer)
    51   'ClassificationLayer_predictions'   Classification Output        crossentropyex with 'tench' and 999 other classes                     (SW Layer)

### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'ClassificationLayer_predictions' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
### Compiling layer group: conv1>>pool1 ...
### Compiling layer group: conv1>>pool1 ... complete.
### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
### Compiling layer group: res3a_branch1 ...
### Compiling layer group: res3a_branch1 ... complete.
### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
### Compiling layer group: res4a_branch1 ...
### Compiling layer group: res4a_branch1 ... complete.
### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
### Compiling layer group: res5a_branch1 ...
### Compiling layer group: res5a_branch1 ... complete.
### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
### Compiling layer group: pool5 ...
### Compiling layer group: pool5 ... complete.
### Compiling layer group: fc1000 ...
### Compiling layer group: fc1000 ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "23.0 MB"
    "OutputResultOffset"        "0x016f8000"     "120.0 kB"
    "SchedulerDataOffset"       "0x01716000"     "4.1 MB"
    "SystemBufferOffset"        "0x01b24000"     "6.1 MB"
    "InstructionDataOffset"     "0x02149000"     "2.4 MB"
    "ConvWeightDataOffset"      "0x023ad000"     "49.5 MB"
    "FCWeightDataOffset"        "0x05525000"     "2.0 MB"
    "EndOffset"                 "0x0571a000"     "Total: 87.1 MB"

### Network compilation complete.
dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]
        constantData: {{1×2 cell}  [1×200704 single]}
             ddrInfo: [1×1 struct]
       resourceTable: [6×2 table]

Program Bitstream on an FPGA

To deploy the network on the Xilinx® ZCU102 SoC hardware, run the deploy method of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board and download the network weights and biases. The deploy function programs the FPGA device and displays progress messages and the required time to deploy the network.

deploy(hW)
### Programming FPGA Bitstream using JTAG...
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 02-Apr-2024 19:57:38
### Loading weights to FC Processor.
### 50% finished, current time is 02-Apr-2024 19:57:41.
### FC Weights loaded. Current time is 02-Apr-2024 19:57:44

Emulate a Hardware Stall

To emulate a hardware stall, send incorrect instructions to the DDR memory by using the JTAG AXI Manager. For more information, see Debug and Control Generated HDL IP Core by using JTAG AXI Manager (HDL Coder).

h = aximanager('Xilinx')
h =
  AXIManagerJTAG with properties:

               Vendor: 'Xilinx'
        JTAGCableName: 'auto'
            DataWidth: 32
            AddrWidth: 32
    JTAGChainPosition: 0
        JTAGCableType: 'auto'
       IRLengthBefore: 0
        IRLengthAfter: 0
         TckFrequency: 15

Write incorrect data to the DDR memory location that stores the instructions.

h.writememory('821E1CD8',single(zeros(1,20)));

Run Prediction

Get the activations of the network by using the predict method of the dlhdl.Workflow object. Retrieve the prediction results within five seconds, by setting the timeout name-value argument to 5.

inputImg = ones(224,224,3);

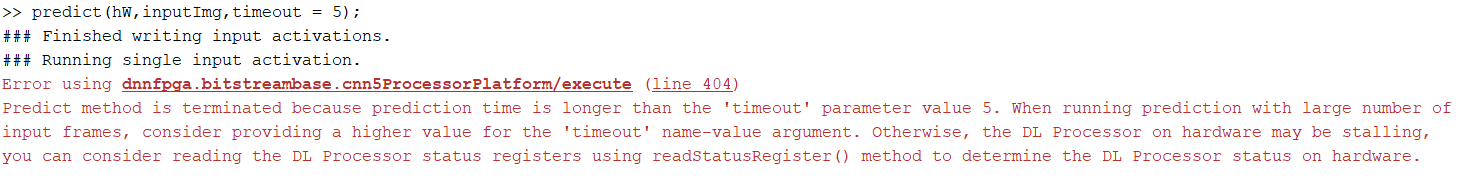

predict(hW,inputImg,timeout = 5);

Retrieve Debug Register Status

To diagnose the hardware stall, retrieve the debug register status by using the readStatusRegister method of the dlhdl.Workflow object. For more information, see readStatusRegister.

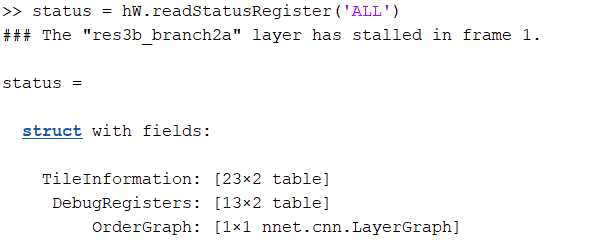

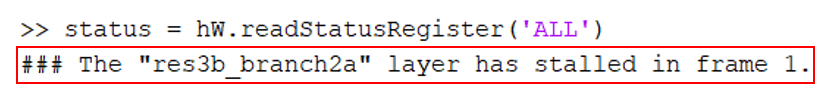

status = readStatusRegister(hW,'ALL')

The function returns the debug register status as a structure with the fields TileInformation, DebugRegisters, and OrderGraph


The TileInformation table details the convolutional layers in the network and their associated number of tiles. SumTiles contains the sum of all the tiles in the network. To display the TileInformation, enter:

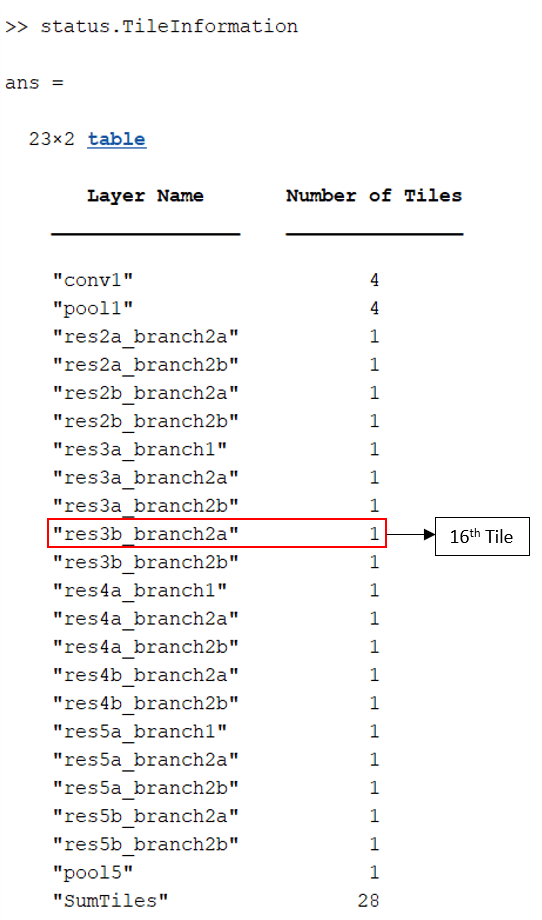

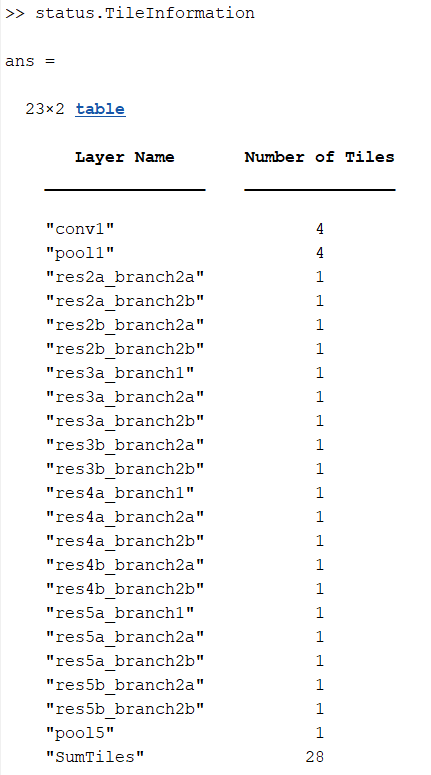

status.TileInformation


The DebugRegisters table returns the debug register name and value. DLStart and DLDone return information regarding when the deep learning processor started processing data and when the deep learning processor completed processing data. The deep learning processor has three processing modules: conv, fc, and custom. Each of these modules has its own set of status registers. The active registers return a status of 1 when the module processes information. The LayerStartCount and LayerEndCount registers increment whenever they process data. For the conv kernel, the CONVLayerStartCount and CONVLayerEndCount registers increment with every tile processed by a convolutional layer. To access the debug registers, enter:

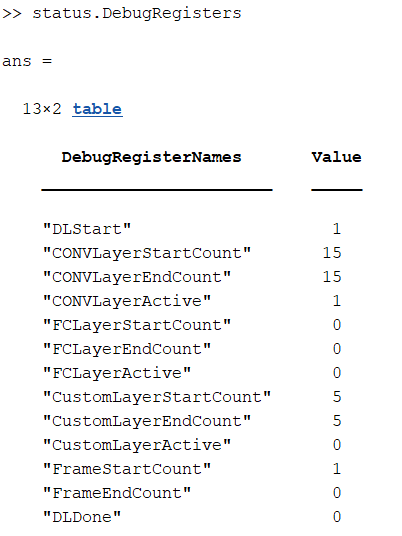

status.DebugRegisters


To diagnose the hardware stall, you must know the order of the execution of layers inside the deep learning processor. You can view this information in the OrderGraph table. To display the sequence of execution of layers, enter:

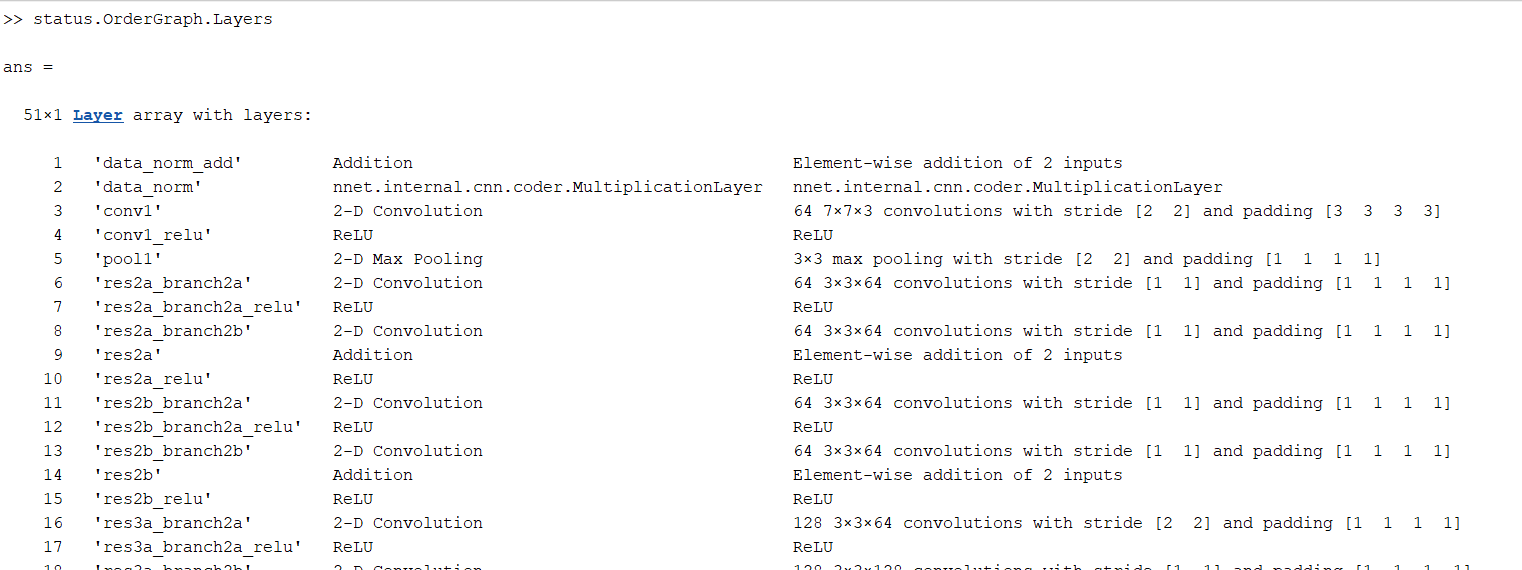

status.OrderGraph.Layers

When you examine the debug status register information:

  • A high DLStart signal and a low DLDone signal indicate that the deep learning processor has not completed processing the information.

  • A value of 1 in the FrameStartCount register indicates that the first frame is currently being processed.

  • A high CONVLayerActive signal indicates that the conv kernel module is active and contains the layer responsible for the hardware stall.

  • The CONVLayersStartCount and CONVLayerEndCount registers have a value of 15, which indicates that 15 tiles have completed their data processing and the stall occurred in the 16th tile.

To determine the layer that contains the 16th tile, look at the TileInformation table. The res3b_branch2a layer contains the 16th tile.


Alternatively, you can determine the layer that contains the stalled tile by reading information from all the status registers. To read all status registers, enter:

status = hw.readStatusRegister('ALL')


Version History

Introduced in R2024a
