compile

Class: dlhdl.Workflow
Package: dlhdl

Compile workflow object

Description

compile(workflowObject) compiles the dlhdl.Workflow object and generates the parameters for deploying the network on the target device.

example

compile(workflowObject,Name,Value) compiles the dlhdl.Workflow object and generates the parameters for deploying the network on the target device, with additional options specified by one or more Name,Value pair arguments.

The function returns two matrices. One matrix describes the layers of the network. The Conv Controller (Scheduling) and the FC Controller (Scheduling) modules in the deep learning processor IP use this matrix to schedule the convolution and fully connected layer operations. The second matrix contains the weights, biases, and inputs of the neural network. This information is loaded onto the DDR memory and used by the Generic Convolution Processor and the Generic FC Processor in the deep learning processor.

Input Arguments

expand all

Workflow, specified as a dlhdl.Workflow object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Parameter to specify maximum input frame number limit to calculate DDR memory access allocation.

Example: 'InputFrameNumberLimit',30

Flag to enable hardware implementation of image input layer normalization function , specified as a string or character vector.

Example: HardwareNormalization = "auto"

Examples

expand all

Compile the dlhdl.Workflow object, for deployment to the Intel® Arria® 10 SoC development kit that has single data types.

Create a dlhdl.Workflow object and then use the compile function to deploy the pretrained network to the target hardware.

snet = vgg19;
hT = dlhdl.Target('Intel');
hW = dlhdl.Workflow('network', snet, 'Bitstream', 'arria10soc_single','Target',hT);
hW.compile

Once the code is executed the result is:

  hW.compile
          offset_name          offset_address     allocated_space
    _______________________    ______________    _________________

    "InputDataOffset"           "0x00000000"     "24.0 MB"
    "OutputResultOffset"        "0x01800000"     "4.0 MB"
    "SystemBufferOffset"        "0x01c00000"     "52.0 MB"
    "InstructionDataOffset"     "0x05000000"     "20.0 MB"
    "ConvWeightDataOffset"      "0x06400000"     "276.0 MB"
    "FCWeightDataOffset"        "0x17800000"     "472.0 MB"
    "EndOffset"                 "0x35000000"     "Total: 848.0 MB"


ans =

  struct with fields:

       Operators: [1×1 struct]
    LayerConfigs: [1×1 struct]
      NetConfigs: [1×1 struct]



  1. Create a dlhdl.Workflow object and then use the compile function with optional argument of InputFrameNumberLimit to deploy the pretrained network to the target hardware.

    net = resnet18;
    hT = dlhdl.Target('Xilinx');
    hW = dlhdl.Workflow('Network', net, 'Bitstream', 'zcu102_single','Target',hT);
    hW.compile('InputFrameNumberLimit',30);
  2. The result of the code execution is:

    ### Compiling network for Deep Learning FPGA prototyping ...
    ### Targeting FPGA bitstream zcu102_single.
    ### The network includes the following layers:
         1   'data'                              Image Input                  224×224×3 images with 'zscore' normalization                          (SW Layer)
         2   'conv1'                             Convolution                  64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
         3   'bn_conv1'                          Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
         4   'conv1_relu'                        ReLU                         ReLU                                                                  (HW Layer)
         5   'pool1'                             Max Pooling                  3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
         6   'res2a_branch2a'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
         7   'bn2a_branch2a'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
         8   'res2a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
         9   'res2a_branch2b'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        10   'bn2a_branch2b'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
        11   'res2a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        12   'res2a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        13   'res2b_branch2a'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        14   'bn2b_branch2a'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
        15   'res2b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        16   'res2b_branch2b'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        17   'bn2b_branch2b'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
        18   'res2b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        19   'res2b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        20   'res3a_branch2a'                    Convolution                  128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
        21   'bn3a_branch2a'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        22   'res3a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        23   'res3a_branch2b'                    Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        24   'bn3a_branch2b'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        25   'res3a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        26   'res3a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        27   'res3a_branch1'                     Convolution                  128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
        28   'bn3a_branch1'                      Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        29   'res3b_branch2a'                    Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        30   'bn3b_branch2a'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        31   'res3b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        32   'res3b_branch2b'                    Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        33   'bn3b_branch2b'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        34   'res3b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        35   'res3b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        36   'res4a_branch2a'                    Convolution                  256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
        37   'bn4a_branch2a'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        38   'res4a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        39   'res4a_branch2b'                    Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        40   'bn4a_branch2b'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        41   'res4a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        42   'res4a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        43   'res4a_branch1'                     Convolution                  256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
        44   'bn4a_branch1'                      Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        45   'res4b_branch2a'                    Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        46   'bn4b_branch2a'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        47   'res4b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        48   'res4b_branch2b'                    Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        49   'bn4b_branch2b'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        50   'res4b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        51   'res4b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        52   'res5a_branch2a'                    Convolution                  512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
        53   'bn5a_branch2a'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        54   'res5a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        55   'res5a_branch2b'                    Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        56   'bn5a_branch2b'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        57   'res5a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        58   'res5a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        59   'res5a_branch1'                     Convolution                  512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
        60   'bn5a_branch1'                      Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        61   'res5b_branch2a'                    Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        62   'bn5b_branch2a'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        63   'res5b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        64   'res5b_branch2b'                    Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        65   'bn5b_branch2b'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        66   'res5b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        67   'res5b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        68   'pool5'                             2-D Global Average Pooling   2-D global average pooling                                            (HW Layer)
        69   'fc1000'                            Fully Connected              1000 fully connected layer                                            (HW Layer)
        70   'prob'                              Softmax                      softmax                                                               (HW Layer)
        71   'ClassificationLayer_predictions'   Classification Output        crossentropyex with 'tench' and 999 other classes                     (SW Layer)

    ### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
    ### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
    ### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
    ### Notice: The layer 'ClassificationLayer_predictions' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
    ### Compiling layer group: conv1>>pool1 ...
    ### Compiling layer group: conv1>>pool1 ... complete.
    ### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
    ### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
    ### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
    ### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
    ### Compiling layer group: res3a_branch1 ...
    ### Compiling layer group: res3a_branch1 ... complete.
    ### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
    ### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
    ### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
    ### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
    ### Compiling layer group: res4a_branch1 ...
    ### Compiling layer group: res4a_branch1 ... complete.
    ### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
    ### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
    ### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
    ### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
    ### Compiling layer group: res5a_branch1 ...
    ### Compiling layer group: res5a_branch1 ... complete.
    ### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
    ### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
    ### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
    ### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
    ### Compiling layer group: pool5 ...
    ### Compiling layer group: pool5 ... complete.
    ### Compiling layer group: fc1000 ...
    ### Compiling layer group: fc1000 ... complete.

    ### Allocating external memory buffers:

              offset_name          offset_address     allocated_space
        _______________________    ______________    _________________

        "InputDataOffset"           "0x00000000"     "24.0 MB"
        "OutputResultOffset"        "0x01800000"     "4.0 MB"
        "SchedulerDataOffset"       "0x01c00000"     "8.0 MB"
        "SystemBufferOffset"        "0x02400000"     "28.0 MB"
        "InstructionDataOffset"     "0x04000000"     "4.0 MB"
        "ConvWeightDataOffset"      "0x04400000"     "52.0 MB"
        "FCWeightDataOffset"        "0x07800000"     "4.0 MB"
        "EndOffset"                 "0x07c00000"     "Total: 124.0 MB"

    ### Network compilation complete.


  1. Create a dlhdl.Workflow object with resnet18 as the network for deployment to a Xilinx® Zynq® UltraScale+™ MPSoC ZCU102 board which uses single data types.

    net = resnet18;
    hTarget = dlhdl.Target('Xilinx');
    hW = dlhdl.Workflow('Network',snet,'Bitstream','zcu102_single','Target',hTarget);
  2. Call the compile function on hW

    hW.compile

    Calling the compile function, returns:

    ### Compiling network for Deep Learning FPGA prototyping ...
    ### Targeting FPGA bitstream zcu102_single ...
    ### The network includes the following layers:

         1   'data'                              Image Input              224×224×3 images with 'zscore' normalization                          (SW Layer)
         2   'conv1'                             Convolution              64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
         3   'bn_conv1'                          Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
         4   'conv1_relu'                        ReLU                     ReLU                                                                  (HW Layer)
         5   'pool1'                             Max Pooling              3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
         6   'res2a_branch2a'                    Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
         7   'bn2a_branch2a'                     Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
         8   'res2a_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
         9   'res2a_branch2b'                    Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        10   'bn2a_branch2b'                     Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
        11   'res2a'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        12   'res2a_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        13   'res2b_branch2a'                    Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        14   'bn2b_branch2a'                     Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
        15   'res2b_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        16   'res2b_branch2b'                    Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        17   'bn2b_branch2b'                     Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
        18   'res2b'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        19   'res2b_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        20   'res3a_branch2a'                    Convolution              128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
        21   'bn3a_branch2a'                     Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
        22   'res3a_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        23   'res3a_branch2b'                    Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        24   'bn3a_branch2b'                     Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
        25   'res3a'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        26   'res3a_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        27   'res3a_branch1'                     Convolution              128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
        28   'bn3a_branch1'                      Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
        29   'res3b_branch2a'                    Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        30   'bn3b_branch2a'                     Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
        31   'res3b_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        32   'res3b_branch2b'                    Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        33   'bn3b_branch2b'                     Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
        34   'res3b'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        35   'res3b_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        36   'res4a_branch2a'                    Convolution              256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
        37   'bn4a_branch2a'                     Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
        38   'res4a_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        39   'res4a_branch2b'                    Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        40   'bn4a_branch2b'                     Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
        41   'res4a'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        42   'res4a_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        43   'res4a_branch1'                     Convolution              256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
        44   'bn4a_branch1'                      Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
        45   'res4b_branch2a'                    Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        46   'bn4b_branch2a'                     Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
        47   'res4b_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        48   'res4b_branch2b'                    Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        49   'bn4b_branch2b'                     Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
        50   'res4b'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        51   'res4b_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        52   'res5a_branch2a'                    Convolution              512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
        53   'bn5a_branch2a'                     Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
        54   'res5a_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        55   'res5a_branch2b'                    Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        56   'bn5a_branch2b'                     Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
        57   'res5a'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        58   'res5a_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        59   'res5a_branch1'                     Convolution              512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
        60   'bn5a_branch1'                      Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
        61   'res5b_branch2a'                    Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        62   'bn5b_branch2a'                     Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
        63   'res5b_branch2a_relu'               ReLU                     ReLU                                                                  (HW Layer)
        64   'res5b_branch2b'                    Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        65   'bn5b_branch2b'                     Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
        66   'res5b'                             Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
        67   'res5b_relu'                        ReLU                     ReLU                                                                  (HW Layer)
        68   'pool5'                             Global Average Pooling   Global average pooling                                                (HW Layer)
        69   'fc1000'                            Fully Connected          1000 fully connected layer                                            (HW Layer)
        70   'prob'                              Softmax                  softmax                                                               (SW Layer)
        71   'ClassificationLayer_predictions'   Classification Output    crossentropyex with 'tench' and 999 other classes                     (SW Layer)

    ### Optimizing series network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
    5 Memory Regions created.

    Skipping: data
    Compiling leg: conv1>>pool1 ...
    Compiling leg: conv1>>pool1 ... complete.
    Compiling leg: res2a_branch2a>>res2a_branch2b ...
    Compiling leg: res2a_branch2a>>res2a_branch2b ... complete.
    Compiling leg: res2b_branch2a>>res2b_branch2b ...
    Compiling leg: res2b_branch2a>>res2b_branch2b ... complete.
    Compiling leg: res3a_branch2a>>res3a_branch2b ...
    Compiling leg: res3a_branch2a>>res3a_branch2b ... complete.
    Compiling leg: res3a_branch1 ...
    Compiling leg: res3a_branch1 ... complete.
    Compiling leg: res3b_branch2a>>res3b_branch2b ...
    Compiling leg: res3b_branch2a>>res3b_branch2b ... complete.
    Compiling leg: res4a_branch2a>>res4a_branch2b ...
    Compiling leg: res4a_branch2a>>res4a_branch2b ... complete.
    Compiling leg: res4a_branch1 ...
    Compiling leg: res4a_branch1 ... complete.
    Compiling leg: res4b_branch2a>>res4b_branch2b ...
    Compiling leg: res4b_branch2a>>res4b_branch2b ... complete.
    Compiling leg: res5a_branch2a>>res5a_branch2b ...
    Compiling leg: res5a_branch2a>>res5a_branch2b ... complete.
    Compiling leg: res5a_branch1 ...
    Compiling leg: res5a_branch1 ... complete.
    Compiling leg: res5b_branch2a>>res5b_branch2b ...
    Compiling leg: res5b_branch2a>>res5b_branch2b ... complete.
    Compiling leg: pool5 ...
    Compiling leg: pool5 ... complete.
    Compiling leg: fc1000 ...
    Compiling leg: fc1000 ... complete.
    Skipping: prob
    Skipping: ClassificationLayer_predictions
    Creating Schedule...
    ...........................
    Creating Schedule...complete.
    Creating Status Table...
    ..........................
    Creating Status Table...complete.
    Emitting Schedule...
    ..........................
    Emitting Schedule...complete.
    Emitting Status Table...
    ............................
    Emitting Status Table...complete.

    ### Allocating external memory buffers:

              offset_name          offset_address     allocated_space
        _______________________    ______________    _________________

        "InputDataOffset"           "0x00000000"     "24.0 MB"
        "OutputResultOffset"        "0x01800000"     "4.0 MB"
        "SchedulerDataOffset"       "0x01c00000"     "4.0 MB"
        "SystemBufferOffset"        "0x02000000"     "28.0 MB"
        "InstructionDataOffset"     "0x03c00000"     "4.0 MB"
        "ConvWeightDataOffset"      "0x04000000"     "52.0 MB"
        "FCWeightDataOffset"        "0x07400000"     "4.0 MB"
        "EndOffset"                 "0x07800000"     "Total: 120.0 MB"

    ### Network compilation complete.


    ans =

      struct with fields:

                 weights: [1×1 struct]
            instructions: [1×1 struct]
               registers: [1×1 struct]
        syncInstructions: [1×1 struct]
  1. Create a dlhdl.Workflow object with resnet18 as the network for deployment to a Xilinx Zynq UltraScale+ MPSoC ZCU102 board which uses single data types.

    net = resnet18;
    hTarget = dlhdl.Target('Xilinx',Interface = 'Ethernet');
    hW = dlhdl.Workflow(Network = net,Bitstream ='zcu102_single',Target = hTarget);
  2. Call the compile function on hW. . Enable hardware implementation of the input image layer normalization function by setting theHardwareNormalization argument to auto.

    hW.compile(HardwareNormalization = 'auto')

    Calling the compile function, returns:

    ### Compiling network for Deep Learning FPGA prototyping ...
    ### Targeting FPGA bitstream zcu102_single.
    ### The network includes the following layers:
         1   'data'                              Image Input                  224×224×3 images with 'zscore' normalization                          (SW Layer)
         2   'conv1'                             Convolution                  64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
         3   'bn_conv1'                          Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
         4   'conv1_relu'                        ReLU                         ReLU                                                                  (HW Layer)
         5   'pool1'                             Max Pooling                  3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
         6   'res2a_branch2a'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
         7   'bn2a_branch2a'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
         8   'res2a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
         9   'res2a_branch2b'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        10   'bn2a_branch2b'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
        11   'res2a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        12   'res2a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        13   'res2b_branch2a'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        14   'bn2b_branch2a'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
        15   'res2b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        16   'res2b_branch2b'                    Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
        17   'bn2b_branch2b'                     Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
        18   'res2b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        19   'res2b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        20   'res3a_branch2a'                    Convolution                  128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
        21   'bn3a_branch2a'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        22   'res3a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        23   'res3a_branch2b'                    Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        24   'bn3a_branch2b'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        25   'res3a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        26   'res3a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        27   'res3a_branch1'                     Convolution                  128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
        28   'bn3a_branch1'                      Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        29   'res3b_branch2a'                    Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        30   'bn3b_branch2a'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        31   'res3b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        32   'res3b_branch2b'                    Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        33   'bn3b_branch2b'                     Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
        34   'res3b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        35   'res3b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        36   'res4a_branch2a'                    Convolution                  256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
        37   'bn4a_branch2a'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        38   'res4a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        39   'res4a_branch2b'                    Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        40   'bn4a_branch2b'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        41   'res4a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        42   'res4a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        43   'res4a_branch1'                     Convolution                  256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
        44   'bn4a_branch1'                      Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        45   'res4b_branch2a'                    Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        46   'bn4b_branch2a'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        47   'res4b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        48   'res4b_branch2b'                    Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        49   'bn4b_branch2b'                     Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
        50   'res4b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        51   'res4b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        52   'res5a_branch2a'                    Convolution                  512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
        53   'bn5a_branch2a'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        54   'res5a_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        55   'res5a_branch2b'                    Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        56   'bn5a_branch2b'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        57   'res5a'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        58   'res5a_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        59   'res5a_branch1'                     Convolution                  512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
        60   'bn5a_branch1'                      Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        61   'res5b_branch2a'                    Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        62   'bn5b_branch2a'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        63   'res5b_branch2a_relu'               ReLU                         ReLU                                                                  (HW Layer)
        64   'res5b_branch2b'                    Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
        65   'bn5b_branch2b'                     Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
        66   'res5b'                             Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
        67   'res5b_relu'                        ReLU                         ReLU                                                                  (HW Layer)
        68   'pool5'                             2-D Global Average Pooling   2-D global average pooling                                            (HW Layer)
        69   'fc1000'                            Fully Connected              1000 fully connected layer                                            (HW Layer)
        70   'prob'                              Softmax                      softmax                                                               (HW Layer)
        71   'ClassificationLayer_predictions'   Classification Output        crossentropyex with 'tench' and 999 other classes                     (SW Layer)

    ### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
    ### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
    ### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
    ### Notice: The layer 'ClassificationLayer_predictions' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
    ### Compiling layer group: conv1>>pool1 ...
    ### Compiling layer group: conv1>>pool1 ... complete.
    ### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
    ### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
    ### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
    ### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
    ### Compiling layer group: res3a_branch1 ...
    ### Compiling layer group: res3a_branch1 ... complete.
    ### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
    ### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
    ### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
    ### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
    ### Compiling layer group: res4a_branch1 ...
    ### Compiling layer group: res4a_branch1 ... complete.
    ### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
    ### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
    ### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
    ### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
    ### Compiling layer group: res5a_branch1 ...
    ### Compiling layer group: res5a_branch1 ... complete.
    ### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
    ### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
    ### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
    ### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
    ### Compiling layer group: pool5 ...
    ### Compiling layer group: pool5 ... complete.
    ### Compiling layer group: fc1000 ...
    ### Compiling layer group: fc1000 ... complete.

    ### Allocating external memory buffers:

              offset_name          offset_address     allocated_space
        _______________________    ______________    _________________

        "InputDataOffset"           "0x00000000"     "24.0 MB"
        "OutputResultOffset"        "0x01800000"     "4.0 MB"
        "SchedulerDataOffset"       "0x01c00000"     "8.0 MB"
        "SystemBufferOffset"        "0x02400000"     "28.0 MB"
        "InstructionDataOffset"     "0x04000000"     "4.0 MB"
        "ConvWeightDataOffset"      "0x04400000"     "52.0 MB"
        "FCWeightDataOffset"        "0x07800000"     "4.0 MB"
        "EndOffset"                 "0x07c00000"     "Total: 124.0 MB"

    ### Network compilation complete.


    ans =

      struct with fields:

                 weights: [1×1 struct]
            instructions: [1×1 struct]
               registers: [1×1 struct]
        syncInstructions: [1×1 struct]
            constantData: {{1×2 cell}  [0.0171 0.0175 0.0174 0 0.0171 0.0175 0.0174 0 0.0171 0.0175 0.0174 0 0.0171 0.0175 0.0174 0 … ]}


    During compilation the compiler splits the image input layer into an image input layer, addition layer, and multiplication layer for hardware implementation.

This example shows how to create, compile, and deploy a long short-term memory (LSTM) network trained on accelerometer data from human movement by using the Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC. Use the deployed network to classify human activity based on sequence input data. Use MATLAB® to retrieve the prediction results from the target device.

The network attached to this example was trained using the Sequence-to-Sequence Classification Using Deep Learning. This example uses sensor data obtained from a smartphone worn on the body. This example deploys an LSTM network trained to recognize the activity of the wearer given time series data that represents accelerometer readings in three different directions. The graphs below show the raw data for these accelerometer readings over time and the resulting classifications. The training data contains time series data for seven people. Each sequence has three features and varies in length. The data set contains six training observations and one test observation.


Prerequisites

  • Xilinx® Zynq® Ultrascale+™ ZCU102 SoC development kit

  • Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC

  • Deep Learning Toolbox™

  • Deep Learning HDL Toolbox™

Load the Pretrained Network

To load the pretrained human body movement network, enter:

load SequenceToSequenceClassification

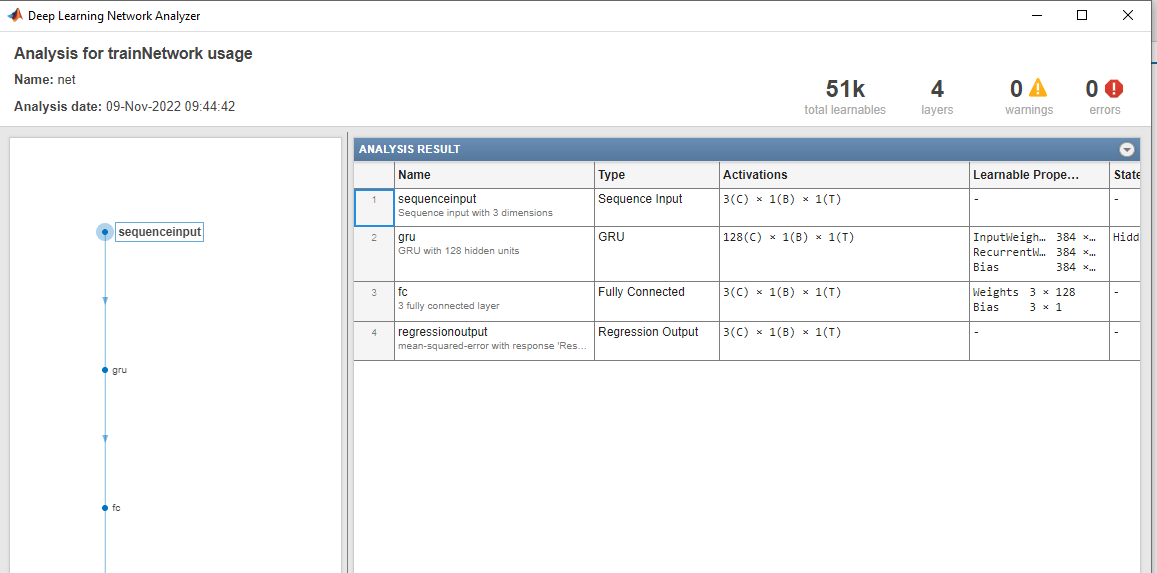

View the layers of the network by using the analyzeNetwork function. The function returns a graphical representation of the network and detailed parameter settings of the layers in the network.

analyzeNetwork(net)

Define FPGA Board Interface

Define the target FPGA board programming interface by using the dlhdl.Target object. Specify that the interface is for a Xilinx board with an Ethernet interface.

To create the target object, enter:

hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

To use the JTAG interface, install Xilinx™ Vivado™ Design Suite 2020.2. To set the Xilinx Vivado tool path, enter:

hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2020.2\bin\vivado.bat');

Prepare Network for Deployment

Prepare the network for deployment by creating a dlhdl.Workflow object. Specify the network and bitstream name. Ensure that the bitstream name matches the data type and FPGA board. In this example the target FPGA board is the Xilinx ZCU102 SOC board. The bitstream uses a single data type.

hW = dlhdl.Workflow('network', net, 'Bitstream', 'zcu102_lstm_single','Target',hTarget);

To run the example in a Xilinx ZC706 board, enter:

hW = dlhdl.Workflow('Network', snet, 'Bitstream', 'zc706_lstm_single','Target',hTarget);

Compile Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment. The total number of frames exceeds the default value of 30. Set the InputFrameNumberLimit name-value argument to 10000 to run predictions in chunks of 10,000 frames to prevent timeouts.

dn = compile(hW,'InputFrameNumberLimit',10000)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_lstm_single.
### The network includes the following layers:
     1   'sequenceinput'   Sequence Input          Sequence input with 3 dimensions                   (SW Layer)
     2   'lstm'            LSTM                    LSTM with 200 hidden units                         (HW Layer)
     3   'fc'              Fully Connected         5 fully connected layer                            (HW Layer)
     4   'softmax'         Softmax                 softmax                                            (SW Layer)
     5   'classoutput'     Classification Output   crossentropyex with 'Dancing' and 4 other classes  (SW Layer)

### Notice: The layer 'sequenceinput' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'softmax' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'classoutput' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
### Compiling layer group: lstm.wi ...
### Compiling layer group: lstm.wi ... complete.
### Compiling layer group: lstm.wo ...
### Compiling layer group: lstm.wo ... complete.
### Compiling layer group: lstm.wg ...
### Compiling layer group: lstm.wg ... complete.
### Compiling layer group: lstm.wf ...
### Compiling layer group: lstm.wf ... complete.
### Compiling layer group: fc ...
### Compiling layer group: fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "4.0 MB"
    "OutputResultOffset"        "0x00400000"     "4.0 MB"
    "SchedulerDataOffset"       "0x00800000"     "4.0 MB"
    "SystemBufferOffset"        "0x00c00000"     "20.0 MB"
    "InstructionDataOffset"     "0x02000000"     "4.0 MB"
    "FCWeightDataOffset"        "0x02400000"     "4.0 MB"
    "EndOffset"                 "0x02800000"     "Total: 40.0 MB"

### Network compilation complete.
dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]
        constantData: {}

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 SoC hardware, run the deploy method of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board and download the network weights and biases. The deploy function starts programming the FPGA device and displays progress messages, and the required time to deploy the network.

 deploy(hW)
### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA.
### Resetting network state.
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 30-Jun-2022 13:41:44

Load Human Activity Test Data

Load the test data and classify the activity at each time step. Each sequence has three features and varies in length. The three features correspond to the accelerometer readings in three different directions.

Load the human activity test data. XTest contains a single sequence of dimension 3. YTest contains a sequence of categorical labels that correspond to the activity at each time step.

load HumanActivityTest
numFeatures = 3;
figure
plot(XTest{1}')
xlabel("Time Step")
legend("Feature " + (1:numFeatures))
title("Test Data")

Run the Prediction

Classify the test data by using the classify function.

YPred = classify(hW.Network, XTest{1});

Calculate the accuracy of the prediction.

acc = sum(YPred == YTest{1})./numel(YTest{1})
acc = 0.9995

Compare the predictions with the test data by using a plot.

figure
plot(YPred,'.-')
hold on
plot(YTest{1})
hold off

xlabel("Time Step")
ylabel("Activity")
title("Predicted Activities")
legend(["Predicted" "Test Data"])

Compare this graph to the output of the predict method.

Run the predict method of the dlhdl.Workflow object, to retrieve the hardware prediction results.

predictions = hW.predict(XTest{1}(:,1:10000));
predictions = horzcat(predictions, hW.predict(XTest{1}(:,10001:20000)));
predictions = horzcat(predictions, hW.predict(XTest{1}(:,20001:30000)));
predictions = horzcat(predictions, hW.predict(XTest{1}(:,30001:40000)));
predictions = horzcat(predictions, hW.predict(XTest{1}(:,40001:50000)));
predictions = horzcat(predictions, hW.predict(XTest{1}(:,50001:end)));
save("hardwarepredictions.mat","predictions")
indices = [];
actions = [];
for x = 1:length(YPred)
    [r,i] = max(predictions(:,x));
    indices = [indices i];
    switch i
        case 1
            actions = [actions categorical("Dancing")];
        case 2
            actions = [actions categorical("Running")];
        case 5
            actions = [actions categorical("Walking")];
        case 4
            actions = [actions categorical("Standing")];
        case 3
            actions = [actions categorical("Sitting")];
    end
end

Plot the comparison between the FPGA board predictions and test data.

figure
plot(actions,'.-')
hold on
plot(YTest{1})
hold off

xlabel("Time Step")
ylabel("Activity")
title("Predicted Activities")
legend(["Predicted" "Test Data"])

The hardware-predicted activities are similar to the activities classified by the classify function.

Version History

Introduced in R2020b
