Create, Configure, and Visualize Bluetooth Mesh Network

Using this example, you can:

  1. Create a Bluetooth® mesh network by configuring the nodes as source, destination, and relay.

  2. Create and configure Bluetooth mesh profile.

  3. Add On-Off application traffic between the mesh nodes.

  4. Visualize Bluetooth mesh network.

Specify the total number of Bluetooth LE mesh nodes and their respective positions in the network. This example creates a 6-node Bluetooth mesh network consisting of a relay node, an end node, and two source-destination pairs. For more information about the functionalities of these nodes, see Bluetooth Mesh Networking.

totalNodes = 6;
meshNodesPositions = [15 25; 15 5; 30 15; 45 5; 45 25; 30 30];  % In meters

Specify the relay node and source-destination node pairs. In this example, Node1 and Node2 are source nodes and the corresponding destination nodes are Node4 and Node5.

relayNode = 3;
sourceDestinationNodePairs = [1 4; 2 5];

Set the Bluetooth mesh profile configuration parameters. Create Bluetooth mesh nodes with "broadcaster-observer" role.

meshNodes = cell(1,totalNodes);
for nodeIdx = 1:totalNodes
    meshCfg = bluetoothMeshProfileConfig(ElementAddress=dec2hex(nodeIdx,4));
    if any(nodeIdx,relayNode)
        meshCfg.Relay = true;
    end
    meshNode = bluetoothLENode("broadcaster-observer", MeshConfig=meshCfg, ...
        Position=[meshNodesPositions(nodeIdx,:) 0],ReceiverRange=25, ...
        AdvertisingInterval=20e-3, ScanInterval=30e-3);
    meshNodes{nodeIdx} = meshNode;
end

Add traffic between Node1 - Node4 and Node2 - Node5 source-destination node pairs by using the networkTrafficOnOff object. The networkTrafficOnOff object enables you to create an On-Off application traffic pattern.

% Add traffic between Node1 and Node4
traffic = networkTrafficOnOff(DataRate=1,PacketSize=15,GeneratePacket=true);
addTrafficSource(meshNodes{1},traffic, ...
    SourceAddress=meshNodes{1}.MeshConfig.ElementAddress, ...
    DestinationAddress=meshNodes{4}.MeshConfig.ElementAddress, ...
    TTL=3);

% Add traffic between Node2 and Node5
traffic = networkTrafficOnOff(DataRate=1,PacketSize=10,GeneratePacket=true);
addTrafficSource(meshNodes{2},traffic, ...
    SourceAddress=meshNodes{2}.MeshConfig.ElementAddress, ...
    DestinationAddress=meshNodes{5}.MeshConfig.ElementAddress, ...
    TTL=3);

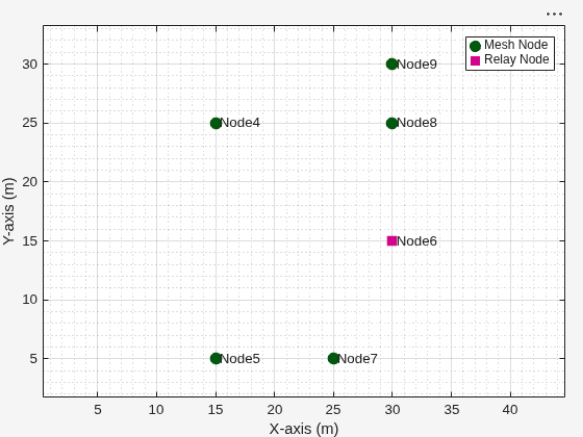

Visualize the Bluetooth mesh network by using the helperBLEMeshVisualizeNetwork helper function. This helper function displays the created Bluetooth mesh network.

meshNetworkGraph = helperBLEMeshVisualizeNetwork();                     % Object for Bluetooth mesh network visualization
meshNetworkGraph.NumberOfNodes = totalNodes;                            % Total number of mesh nodes
meshNetworkGraph.NodePositionType = 'UserInput';                        % Option to assign node position
meshNetworkGraph.Positions = meshNodesPositions;                        % List of all node positions
meshNetworkGraph.ReceiverRange = 25;                                    % Reception range of mesh node
meshNetworkGraph.Title = 'Bluetooth Mesh Network';                      % Title of plot
meshNetworkGraph.SourceDestinationPairs = sourceDestinationNodePairs;   % Source-destination node pair
meshNetworkGraph.NodeType = [1 1 2 1 1 1];                              % State of mesh node
meshNetworkGraph.DisplayProgressBar = false;                            % Display progress bar
meshNetworkGraph.createNetwork();                                       % Display mesh network

Figure Bluetooth Mesh Network contains an axes object. The axes object with title Bluetooth Mesh Network contains 5 objects of type graphplot, line. These objects represent Bluetooth Mesh Network, \color[rgb]{0 0.5 1} Node, \color[rgb]{1 0.4980 0.4980} Relay node, \color[rgb]{0 0.5 0} Source-Destination pair (1, 4), \color[rgb]{0 0.75 0.75} Source-Destination pair (2, 5).

References

[1] Bluetooth® Technology Website. “Bluetooth Technology Website | The Official Website of Bluetooth Technology.” Accessed December 25, 2021. https://www.bluetooth.com/.

[2] Bluetooth Special Interest Group (SIG). "Bluetooth Core Specification." Version 5.3. https://www.bluetooth.com/.

[3] Bluetooth Special Interest Group (SIG). "Bluetooth Mesh Profile." Version 1.0.1. https://www.bluetooth.com/.

[4] Bluetooth Special Interest Group (SIG). "Bluetooth Mesh Model Specification." Version 1.0.1. https://www.bluetooth.com/.
