removeHoles

Remove holes from shape

Since R2020b

Syntax

s = removeHoles(shapeobject,holetol)

Description

s = removeHoles(shapeobject,holetol) removes holes with area less than the provided tolerance from the shape and returns a polygon object.

example

Examples

collapse all

Remove Holes from Rectangular Shape of Antenna

Open Live Script

Create two rectangular shapes with different dimensions.

rect1 = antenna.Rectangle;
rect2 = antenna.Rectangle(Length=1e-7, Width=0.5);

Carve out rectangle2 from rectangle1 and view the resultant shape.

rect3 = rect1 - rect2;
show(rect3)

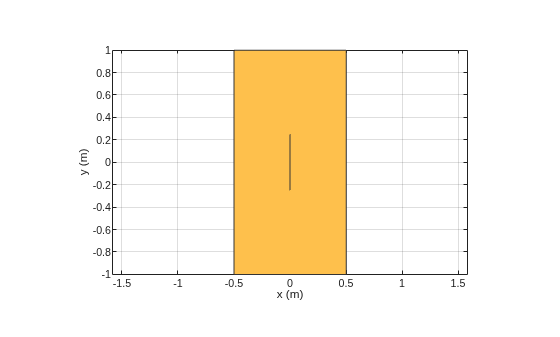

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Remove holes from the resultant rectangle.

rect4 = removeHoles(rect3,1e-6);
show(rect4)

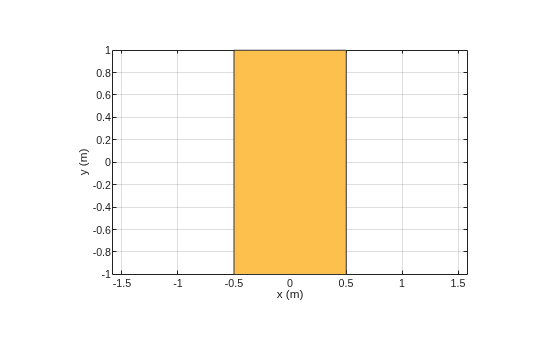

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Input Arguments

collapse all

`shapeobject` — Shape with sliver outlier
2-D shape object

2-D shape with sliver outlier, specified as either:

antenna.Rectangle, antenna.Circle, antenna.Ellipse, antenna.Polygon, or antenna.Triangle object.
Object created using shapes function.
shape.Rectangle, shape.Circle, shape.Ellipse, or shape.Polygon object.

Data Types: function

`holetol` — Hole tolerance
nonnegative scalar

Hole tolerance, specified as a nonnegative scalar.

Data Types: double

Version History

Introduced in R2020b
