3D/2D vector field plotter
バージョン 1.0.0.0 (676 Bytes) 作成者:
Rentian Xiong
This function can plot both 3D and 2D vector field based on the input symbolic expression ...
ダウンロード: 18.3K
更新
2005/4/4
ライセンスがありません
vectline is "vector field line plotter". Depending on the dimension of coordinate axis, vectline can plot both 3D and 2D vector field line.

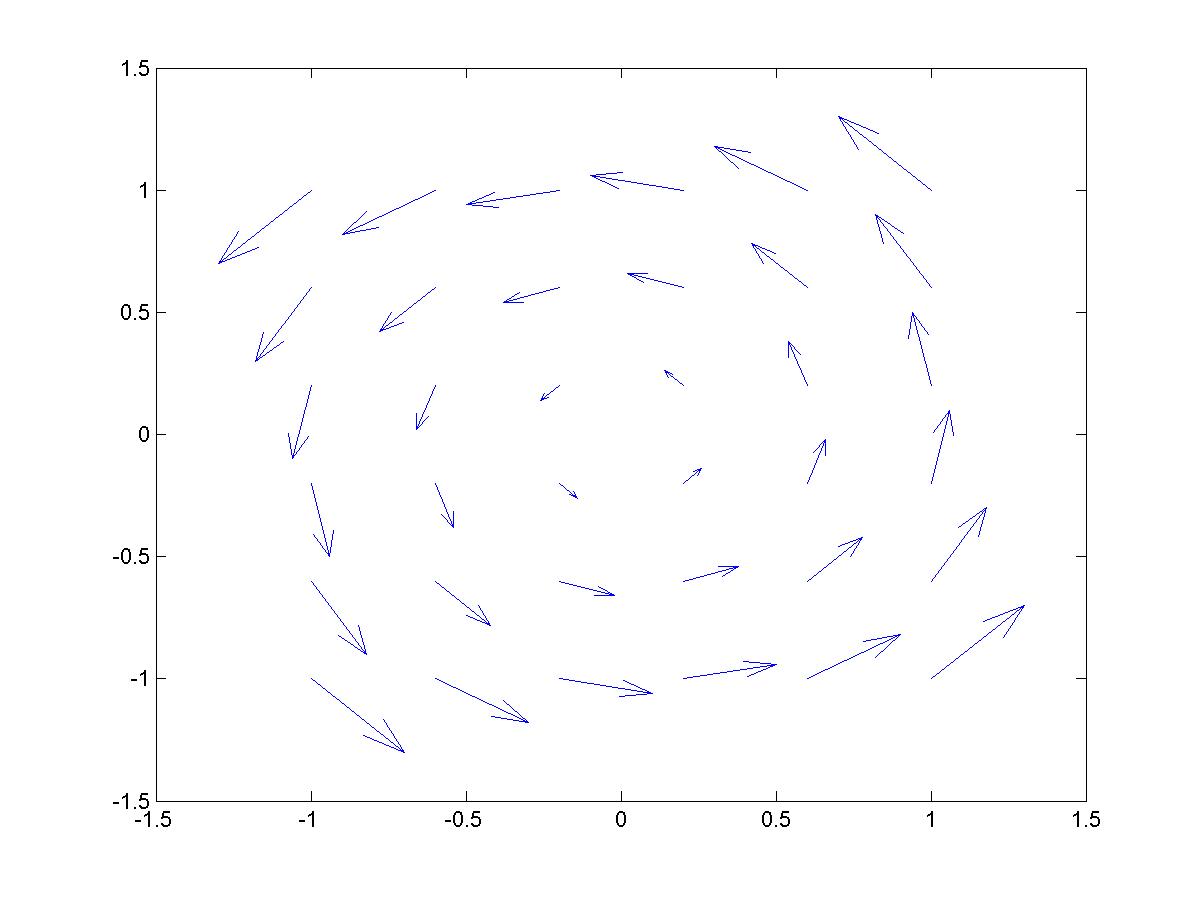

Example for 2D field
>> syms x y
>> F = [-y, x];
>> vectline(F,[x,y],[-1,1,-1,1])
Example for 3D field
>> syms x y z
>> F = [x*y^2, x*y, z];
>> vectline(F,[x,y,z],[-1,1,-2,3,1,3])
