Grid plot

バージョン 1.2.0.0 (1.53 KB) 作成者: Mohammad Ali
Plots the gridded data as a surface.
ダウンロード: 668
更新 2014/3/25

ライセンスの表示

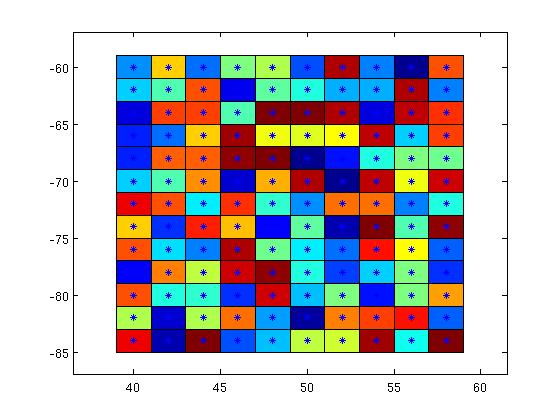

The gridplot function displays a regularly gridded data as a patch surface. The input grid data is a m-by-3 matrix as (x, y, z) triplets. The z value is assigned as a color value to the corresponding patch. A random value is assigned to z when the grid data is a m-by-2 matrix.
Using this function, there is no need to interpolate the gridded data, that might be already the result of an interpolation method. While other methods make gridline-registered grids that can be plotted using e.g. Mtlab surf function, this function makes a pixel registered grid and uses the Matlab patch function to display the grid.

引用

Mohammad Ali (2024). Grid plot (https://www.mathworks.com/matlabcentral/fileexchange/46010-grid-plot), MATLAB Central File Exchange. 取得済み .

MATLAB リリースの互換性
作成: R2012a
すべてのリリースと互換性あり
プラットフォームの互換性
Windows macOS Linux

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
バージョン 公開済み リリース ノート
1.2.0.0

Sorting the input grid data

1.1.0.0

The function description was updated.

1.0.0.0
