treeTable - create a sortable table control with collapsible row groups

バージョン 1.3.0.0 (66.8 KB) 作成者: Yair Altman

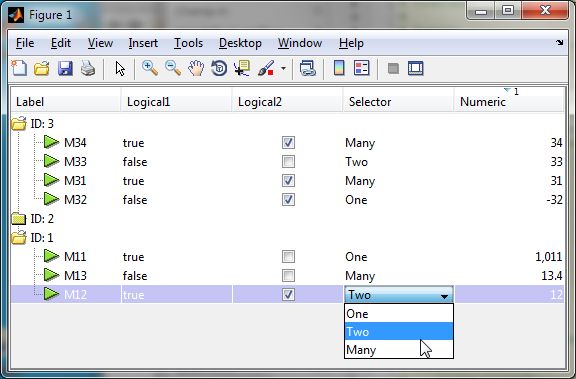

Create a sortable Java-based tree-table GUI control having collapsible/expandable data row groups
ダウンロード: 2.5K
更新 2013/8/6

ライセンスの表示

Syntax:
htable = treeTable (pnContainer, headers, data, 'PropName',PropValue, ...)

Input parameters:
pnContainer - optional handle to container uipanel or figure (default: gcf)
headers - optional cell array of column header strings
data - optional numeric or cell array of data values
'PropName',PropValue - optional list of property-value pairs: Container, Headers, Data, IconFilenames, ColumnTypes, ColumnEditable, Groupable, InteractiveGrouping

(see internal help section for details)

Output parameters:
htable - handle to Java tree-table object

Important features:
* Table is fully sortable (multiple columns via ctrl-click on header)
* Table can be flat or hierarchical (grouping)
* Interactive grouping (like in Outlook)
* Editable drop-down (selector) option
* Table columns are automatically resized to fit the available width
* Table columns are rearrangeable by dragging the headers right/left
* Table columns can be resized by dragging their divider gridlines (not just the header)
* User-defined icons for leaf rows and grouping rows (expanded/collapsed)
* Sample data update and row selection callbacks included; user can attach custom callbacks

Warning:
This code heavily relies on undocumented and unsupported Matlab functionality. It works on Matlab 7+, but use at your own risk!

Bugs and suggestions:
Please send to Yair Altman (altmany at gmail dot com)

Technical details of the implementation can be found at http://UndocumentedMatlab.com/blog/treeTable

引用

Yair Altman (2024). treeTable - create a sortable table control with collapsible row groups (https://www.mathworks.com/matlabcentral/fileexchange/42946-treetable-create-a-sortable-table-control-with-collapsible-row-groups), MATLAB Central File Exchange. 取得済み .

MATLAB リリースの互換性
作成: R2010b
すべてのリリースと互換性あり
プラットフォームの互換性
Windows macOS Linux
カテゴリ
Help Center および MATLAB AnswersMigrate GUIDE Apps についてさらに検索
謝辞

ヒントを得たファイル: Java-based data table

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
バージョン 公開済み リリース ノート
1.3.0.0

Forgot a couple of important Java files in the previous uploads, sorry about that...

1.2.0.0

Added InteractiveGrouping option to enable interactive column grouping as in Microsoft Outlook

1.0.0.0
