1-D Multisignal Analysis

This section takes you through the features of 1-D multisignal wavelet analysis, compression and denoising using the Wavelet Toolbox™ software. The rationale for each topic is the same as in the 1-D single signal case.

The toolbox provides the following functions for multisignal analysis.

Analysis-Decomposition and Synthesis-Reconstruction Functions

Function Name

Purpose

`mdwtdec`

Multisignal wavelet decomposition

`mdwtrec`

Multisignal wavelet reconstruction and extraction of approximation and detail coefficients

Decomposition Structure Utilities

Function Name

Purpose

`chgwdeccfs`

Change multisignal 1-D decomposition coefficients

`wdecenergy`

Multisignal 1-D decomposition energy repartition

Compression and Denoising Functions

Function Name

Purpose

`mswcmp`

Multisignal 1-D compression using wavelets

`mswcmpscr`

Multisignal 1-D wavelet compression scores

`mswcmptp`

Multisignal 1-D compression thresholds and performance

`mswden`

Multisignal 1-D denoising using wavelets

`mswthresh`

Perform multisignal 1-D thresholding

1-D Multisignal Analysis

1. Load a file, from the MATLAB® prompt, by typing

```load thinker ```

The file `thinker.mat` contains a single variable `X`. Use `whos` to show information about `X`.

```whos ```
NameSizeBytesClass
`X``192x96``147456``double array`

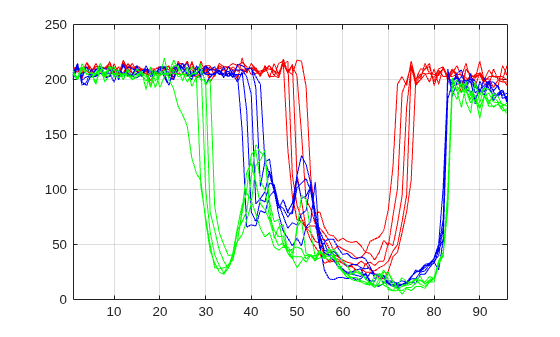

2. Plot some signals.

```figure; plot(X(1:5,:)','r'); hold on plot(X(21:25,:)','b'); plot(X(31:35,:)','g') set(gca,'Xlim',[1,96]) grid ```

3. Perform a wavelet decomposition of signals at level 2 of row signals using the `db2` wavelet.

```dec = mdwtdec('r',X,2,'db2') ```

This generates the decomposition structure `dec`:

```dec = dirDec: 'r' level: 2 wname: 'db2' dwtFilters: [1x1 struct] dwtEXTM: 'sym' dwtShift: 0 dataSize: [192 96] ca: [192x26 double] cd: {[192x49 double] [192x26 double]} ```
4. Change wavelet coefficients.

For each signal change the wavelet coefficients by setting all the coefficients of the detail of level 1 to zero.

```decBIS = chgwdeccfs(dec,'cd',0,1); ```

This generates a new decomposition structure `decBIS`.

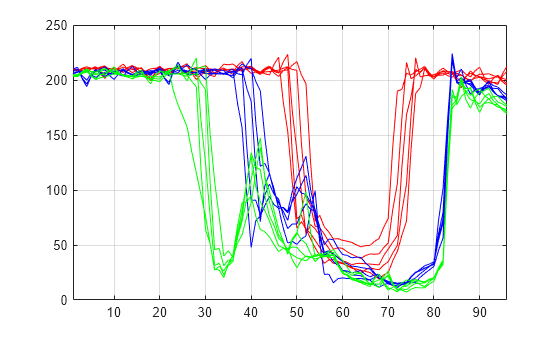

5. Perform a wavelet reconstruction of signals and plot some of the new signals.

```Xbis = mdwtrec(decBIS); figure; plot(Xbis(1:5,:)','r'); hold on plot(Xbis(21:25,:)','b'); plot(Xbis(31:35,:)','g') grid; set(gca,'Xlim',[1,96]) ```

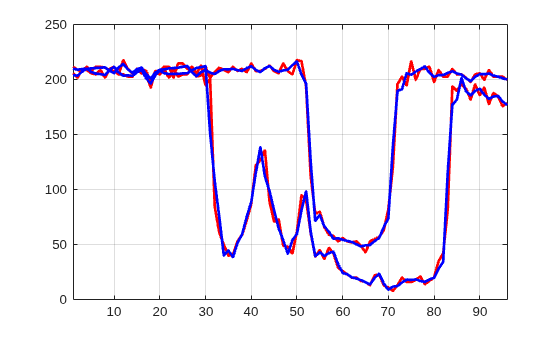

Compare old and new signals by plotting them together.

```figure; idxSIG = [1 31]; plot(X(idxSIG,:)','r','linewidth',2); hold on plot(Xbis(idxSIG,:)','b','linewidth',2); grid; set(gca,'Xlim',[1,96]) ```

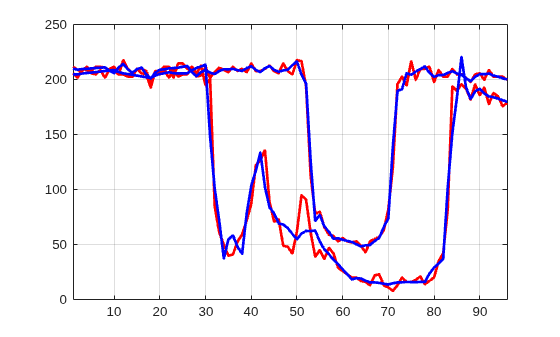

6. Set the wavelet coefficients at level 1 and 2 for signals 31 to 35 to the value zero, perform a wavelet reconstruction of signal 31, and compare some of the old and new signals.

```decTER = chgwdeccfs(dec,'cd',0,1:2,31:35); Y = mdwtrec(decTER,'a',0,31); figure; plot(X([1 31],:)','r','linewidth',2); hold on plot([Xbis(1,:) ; Y]','b','linewidth',2); grid; set(gca,'Xlim',[1,96]) ```

7. Compute the energy of signals and the percentage of energy for wavelet components.

```[E,PEC,PECFS] = wdecenergy(dec); ```

Energy of signals 1 and 31:

```Ener_1_31 = E([1 31]) Ener_1_31 = 1.0e+006 * 3.7534 2.2411 ```
8. Compute the percentage of energy for wavelet components of signals 1 and 31.

```PEC_1_31 = PEC([1 31],:) PEC_1_31 = 99.7760 0.1718 0.0522 99.3850 0.2926 0.3225 ```

The first column shows the percentage of energy for approximations at level 2. Columns 2 and 3 show the percentage of energy for details at level 2 and 1, respectively.

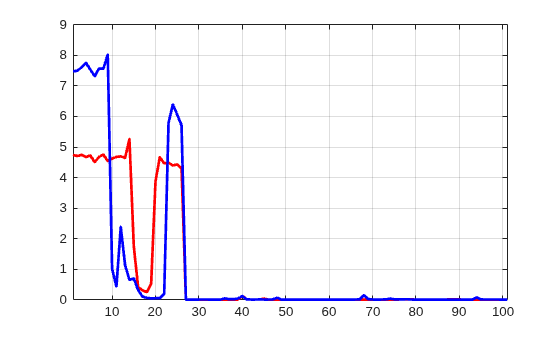

9. Display the percentage of energy for wavelet coefficients of signals 1 and 31. As we can see in the `dec` structure, there are 26 coefficients for the approximation and the detail at level 2, and 49 coefficients for the detail at level 1.

```PECFS_1 = PECFS(1,:); PECFS_31 = PECFS(31,:); figure; plot(PECFS_1,'r','linewidth',2); hold on plot(PECFS_31,'b','linewidth',2); grid; set(gca,'Xlim',[1,size(PECFS,2)]) ```

10. Compress the signals to obtain a percentage of zeros near 95% for the wavelet coefficients.

```[XC,decCMP,THRESH] = mswcmp('cmp',dec,'N0_perf',95); [Ecmp,PECcmp,PECFScmp] = wdecenergy(decCMP); ```

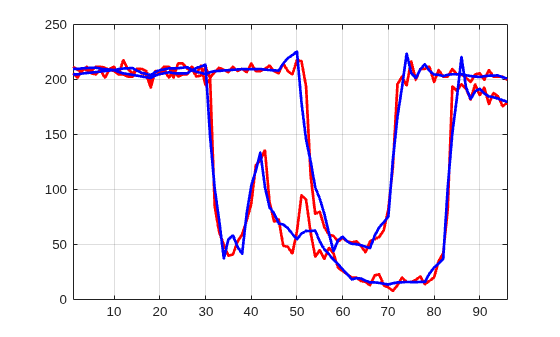

Plot the original signals 1 and 31, and the corresponding compressed signals.

```figure; plot(X([1 31],:)','r','linewidth',2); hold on plot(XC([1 31],:)','b','linewidth',2); grid; set(gca,'Xlim',[1,96]) ```

Compute thresholds, percentage of energy preserved and percentage of zeros associated with the `L2_perf` method preserving at least 95% of energy.

```[THR_VAL,L2_Perf,N0_Perf] = mswcmptp(dec,'L2_perf',95); idxSIG = [1,31]; Thr = THR_VAL(idxSIG) Thr = 256.1914 158.6085 L2per = L2_Perf(idxSIG) L2per = 96.5488 94.7197 N0per = N0_Perf(idxSIG) N0per = 79.2079 86.1386 ```

Compress the signals to obtain a percentage of zeros near 60% for the wavelet coefficients.

```[XC,decCMP,THRESH] = mswcmp('cmp',dec,'N0_perf',60); ```

`XC` signals are the compressed versions of the original signals in the row direction.

Compress the `XC` signals in the column direction

```XX = mswcmp('cmpsig','c',XC,'db2',2,'N0_perf',60); ```

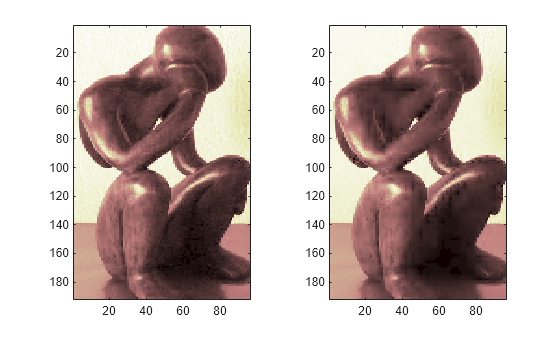

Plot original signals `X` and the compressed signals `XX` as images.

```figure; subplot(1,2,1); image(X) subplot(1,2,2); image(XX) colormap(pink(222)) ```

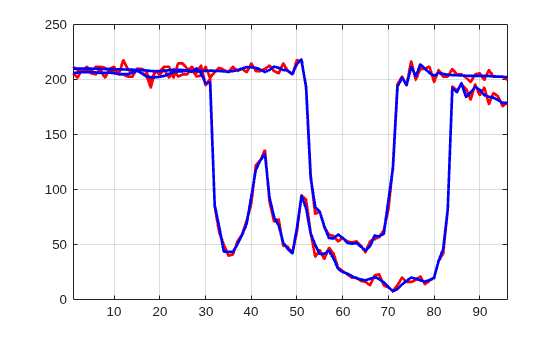

11. Denoise the signals using the universal threshold:

```[XD,decDEN,THRESH] = mswden('den',dec,'sqtwolog','sln'); figure; plot(X([1 31],:)','r','linewidth',2); hold on plot(XD([1 31],:)','b','linewidth',2); grid; set(gca,'Xlim',[1,96]) ```

`XD` signals are the denoised versions of the original signals in the row direction.

Denoise the `XD` signals in column direction

```XX = mswden('densig','c',XD,'db2',2,'sqtwolog','sln'); ```

Plot original signals `X` and the denoised signals `XX` as images.

```figure; subplot(1,2,1); image(X) subplot(1,2,2); image(XX) colormap(pink(222)) ```

References

[1] Denoeud, L., Garreta, H., and A. Guénoche. "Comparison of Distance Indices Between Partitions." In International Symposium on Applied Stochastic Models and Data Analysis, 432–440. Brest, France: École Nationale des Télécommunications de Bretagne, 2005.
