Change Image Size
This example shows how to downsample a multicomponent image by using the
Image Resizer block. The example also shows how to implement custom bicubic and Lanczos-2 interpolation algorithms for FPGAs by using basic Simulink blocks.
The most basic of interpolation algorithms, nearest neighbor, assumes the value of its closest neighbor and is computationally lightweight. In theory, you can achieve a more exact reconstruction of an image by using a sinc kernel. However, sinc kernels have infinite spatial extent. To limit the extent, interpolation implementations use simpler kernels to approximate a sinc. The bilinear interpolation algorithm uses the weighted sum of the nearest four pixels to determine the values of the output pixels. Bicubic and Lanczos-2 interpolations are approximations of a sinc kernel. Bicubic interpolation is a more computationally efficient version of the Lanczos-2 method. This example implements and compares these interpolation algorithms.
By default, the
imresize function uses the bicubic interpolation algorithm. You can choose the nearest neighbor, bilinear, or Lanczos-2 interpolation algorithms by setting the
'Method' name-value argument to
v = VideoReader('rhinos.avi'); I = readFrame(v); Y = imresize(I,[160,256],Method='bilinear'); figure; imshow(Y)
Nearest neighbor interpolation determines the inserted pixel values by assuming the value of the closest of its four neighbors. The interpolator calculates the horizontal, , and vertical, , scale factors independently.
No additional calculations are required once the scale has been determined, which removes the requirement for any multipliers.
Bilinear and Bicubic
Bilinear interpolation, a first-order sinc approximation algorithm, determines the inserted pixel value from the weighted average of the four input pixels nearest to the inserted location.
The value for each output pixel is given by .
The bicubic algorithm  calculates the average of the 16 input pixels nearest to the inserted location.
The bicubic coefficients are given by .
These equations show that the bilinear and bicubic algorithms calculate coefficients for each output pixel.
The Lanczos-2 algorithm precalculates the coefficients based on the resize factor. The model calls the
lanczos2_coeffi.m script to calculate and store these coefficients. The script calculates the Lanczos-2 coefficients using 6 taps and 32 phases.
Implementation of Basic-Blocks Interpolation Algorithms for HDL
This figure shows the principle used to implement the image resize algorithm for hardware. For example, consider resizing an image by a scale factor of 3/4. One possible implementation is to upsample by a factor of 3 and then downsample by a factor of 4. The figure shows the pixel indexes after these operations. Blue dots represent the original pixels, and green crosses represent the interpolated pixels after upsampling.
The indexes after downsampling show that not all the interpolated pixels are used in the output image. This example implements a more efficient version of the downsample step by generating interpolated pixels only when they are needed in the output image.
The phase, shown in the bottom line of the figure, is an index that selects which pixels are needed for the output image. When the phase is 0, the algorithm returns the original input pixel value. When the phase is 1, the algorithm calculates coefficients to generate the interpolated pixel in the first position. When the phase is 2, the algorithm calculates coefficients to generate the interpolated pixel in the second position.
The model contains two datapaths. The top datapath uses the Image Resizer block to perform resize using bilinear interpolation. The bottom datapath implements resize using bicubic and Lanczos-2 interpolation.
Image Resizer block provides support for nearest neighbor and bilinear interpolation with an integrated antialiasing prefilter.
The integrated lowpass Gaussian antialiasing filter provides convenient means to avoid aliasing introduced through the reduction in sampling rate when downsampling.
Image Resizer block provides the ability to insert horizontal blanking between output active video lines. You can use this capability to meet downstream horizontal blanking constraints. However, do not use this capability to perform the role of the
Pixel Stream FIFO, which buffers input video lines to output contiguous valid active video lines. Inserting too much horizontal blanking can have an impact on the overall frame rate and may necessitate pacing of the input.
The model includes an optional
Pixel Stream FIFO after the
Image Resizer block that you can use to consolidate the output pixels, while the
Measure Timing block displays the size of the output frames.

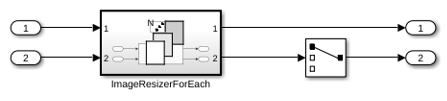

When processing multicomponent data, use the
Image Resizer block with a
ForEach subsystem. The
ForEach subsystem replicates the
Image Resizer block across each input component while maintaining a single multicomponent frame input and output.
ForEach subsystem is configured to partition and concatenate the pixel input and output on the second dimension, horizontally. The output pixelcontrol buses are all duplicates and so only one needs to be retained at the top level. The
Selector block selects a single pixelcontrol bus to use in the rest of the data path.
Similar to the
imresize function, the
imresize(downsample) subsystem in this model supports two ways to define the output image size. You can specify a scale factor ranging from 1.000 to 127.999, or you can define the output frame width and height in pixels down to a minimum of 8 by 8. Double-click the
imresize(downsample) subsystem to set its parameters. The
imresize(downsample) subsystem requires contiguous video lines.
To avoid aliasing with the basic-blocks implementation, the model includes a lowpass filter before the
imresize(downsample) subsystem that you can enable by setting its Constant block input to a value of 1. After the
imresize(downsample) subsystem, there is also an optional
Pixel Stream FIFO and a
Measure Timing block to display its output frame sizes.

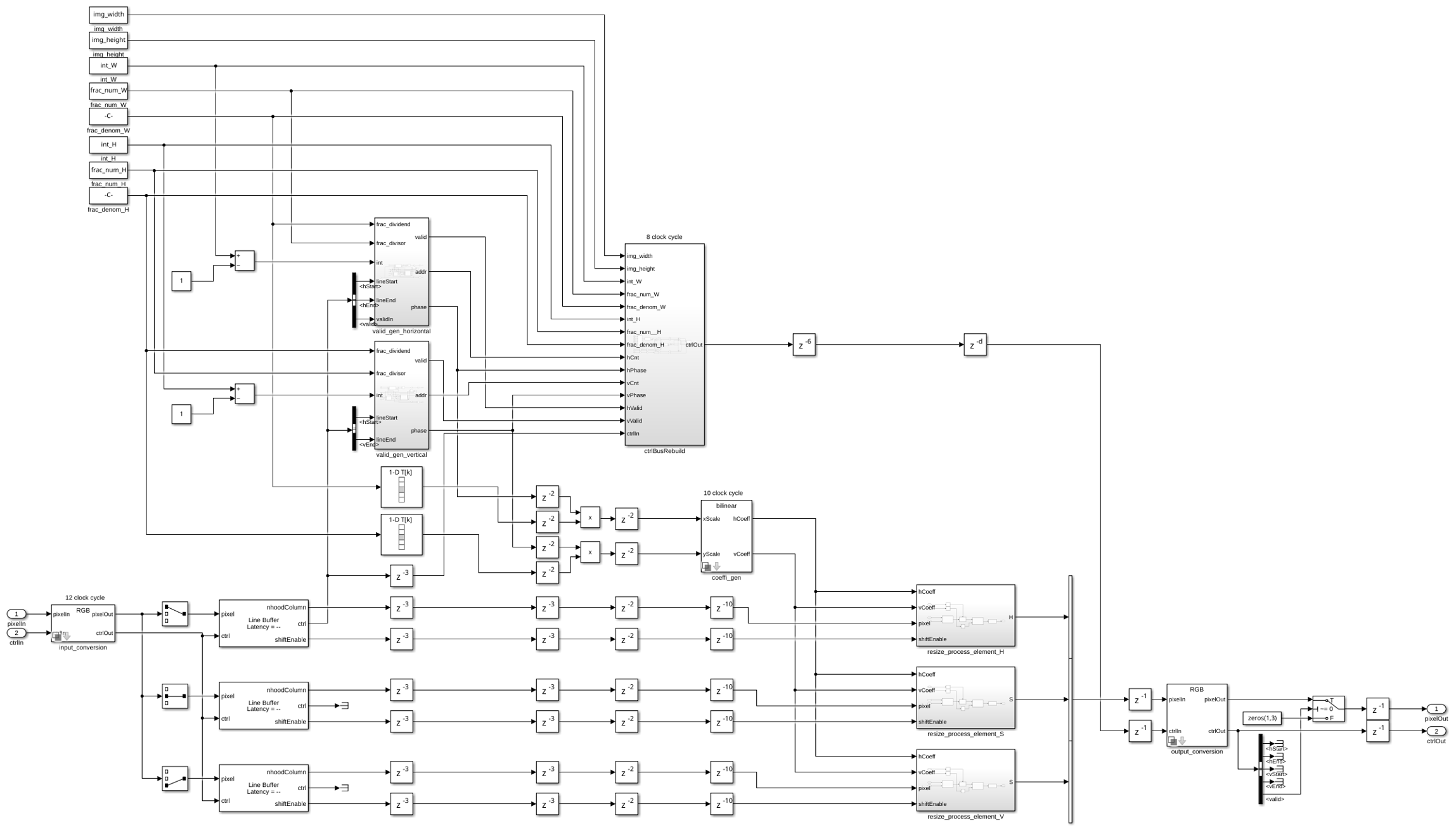

imresize(downsample) subsystem, the
output_conversion subsystems convert the color space  of the pixel stream based on the parameter on the mask. The
valid_gen_vertical subsystems return control signals that are used for generating coefficients and rebuilding the output control bus. If the last line of the image contains no valid pixels after downsampling, the
ctrlBusRebuild subsystem rebuilds the control bus for the new size.

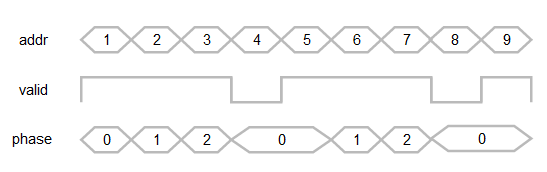

This diagram shows the expected output from the
valid_gen_vertical subsystems. The valid signal indicates the validity of the current address and the corresponding phase. To simplify rebuilding the control bus, the first line and row of each output frame are always valid.
The coefficient generation subsystem,
coeffi_gen, is a variant subsystem, where bilinear, bicubic, and Lanczos-2 coefficient generators are implemented separately. You can select the algorithm from the mask.

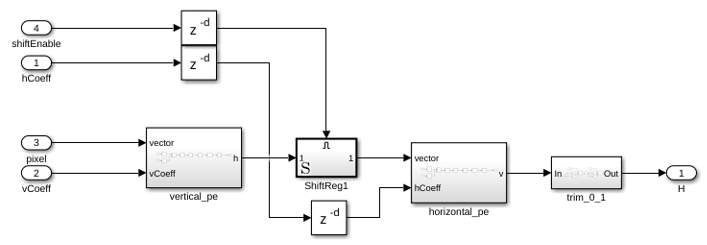

The resize_process_element subsystems multiply the coefficients with each pixel component by using a separable filter in vertical order and then in horizontal order. The
trim_0_1 subsystem ensures the result is between 0 and 1.
These tables show the resource usage for the
Image Resizer block and
imresize(downsample) subsystem with 240p video input, and do not include the antialiasing filters or the
Pixel Stream FIFOs. The design was synthesized to achieve a clock frequency of 150 MHz.
This table shows the resources for each of the algorithms when downsampled in the RGB color space.
LUT LUTRAM FF BRAM DSP ____ ______ _____ ____ ___ Image Resizer - Nearest Neighbor 1282 36 1337 3 0 Image Resizer - Bilinear 1317 24 1808 3 12 imresize(downsample) - Bilinear 2414 386 4333 1.5 20 imresize(downsample) - Bicubic 4405 597 8827 4.5 30 imresize(downsample) - Lanczos-2 6490 802 13708 7.5 38
This table shows the resources for each of the three
imresize(downsample) algorithms when downsampled in the HSV color space.
LUT LUTRAM FF BRAM DSP ____ ______ _____ ____ ___ imresize(downsample) - Bilinear 2987 444 5688 11 26 imresize(downsample) - Bicubic 5117 658 10248 14 36 imresize(downsample) - Lanczos-2 7139 875 15351 17 44
 Keys, R. "Cubic Convolution Interpolation for Digital Image Processing." IEEE Transactions on Acoustics, Speech, and Signal Processing 29, no. 6 (December 1981): 1153-60. https://doi.org/10.1109/TASSP.1981.1163711.
 Smith, Alvy Ray. "Color Gamut Transform Pairs." In Proceedings of the 5th Annual Conference on Computer Graphics and Interactive Techniques - SIGGRAPH '78, 12-19. Not Known: ACM Press, 1978. https://doi.org/10.1145/800248.807361.
