fmesh

R2026b

Plot 3-D mesh

Syntax

fmesh(f)

fmesh(f,[min max])

fmesh(f,[xmin xmax ymin ymax])

fmesh(funx,funy,funz)

fmesh(funx,funy,funz,[uvmin uvmax])

fmesh(funx,funy,funz,[umin umax vmin vmax])

fmesh(___,LineSpec)

fmesh(___,Name=Value)

fmesh(ax,___)

obj = fmesh(___)

Description

fmesh(f) creates a mesh plot of the symbolic expression f(x,y) over the default interval [-5 5] for x and y.

fmesh(f,[min max]) plots f(x,y) over the interval [min max] for x and y.

fmesh(f,[xmin xmax ymin ymax]) plots f(x,y) over the interval [xmin xmax] for x and [ymin ymax] for y. The fmesh function uses symvar to order the variables and assign intervals.

fmesh(funx,funy,funz) plots the parametric mesh x = x(u,v), y = y(u,v), z = z(u,v) over the interval [-5 5] for u and v.

fmesh(funx,funy,funz,[uvmin uvmax]) plots the parametric mesh x = x(u,v), y = y(u,v), z = z(u,v) over the interval [uvmin uvmax] for u and v.

fmesh(funx,funy,funz,[umin umax vmin vmax]) plots the parametric mesh x = x(u,v), y = y(u,v), z = z(u,v) over the interval [umin umax] for u and [vmin vmax] for v. The fmesh function uses symvar to order the parametric variables and assign intervals.

fmesh(___,LineSpec) uses the LineSpec to set the line style, marker symbol, and plot color.

fmesh(___,Name=Value) specifies surface properties using one or more name-value arguments. Use this option with any of the input argument combinations in the previous syntaxes.

fmesh(ax,___) plots into the axes with the object ax instead of the current axes object gca.

obj = fmesh(___) returns a function surface object or a parameterized function surface object. Use the object to query and modify properties of a specific mesh.

Examples

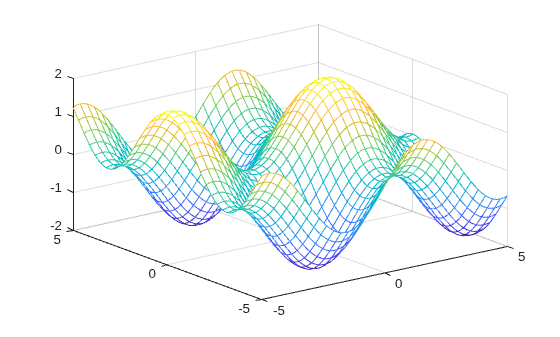

3-D Mesh Plot of Symbolic Expression

Plot a mesh of the input $$\sin (x)+\cos (y)$$ over the default range $$-5<x<5$$ and $$-5<y<5$$.

syms x y
fmesh(sin(x)+cos(y))

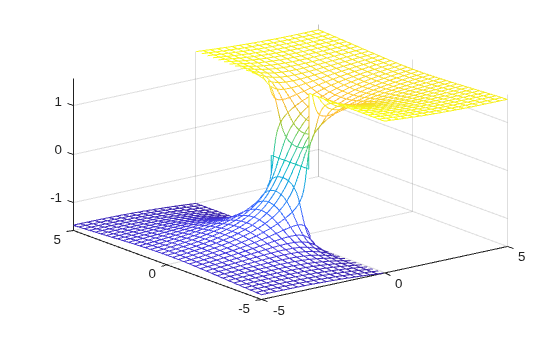

3-D Mesh Plot of Symbolic Function

Plot a 3-D mesh of the real part of $${tan}^{-1}(x+iy)$$ over the default range $$-5<x<5$$ and $$-5<y<5$$.

syms f(x,y)
f(x,y) = real(atan(x + i*y));
fmesh(f)

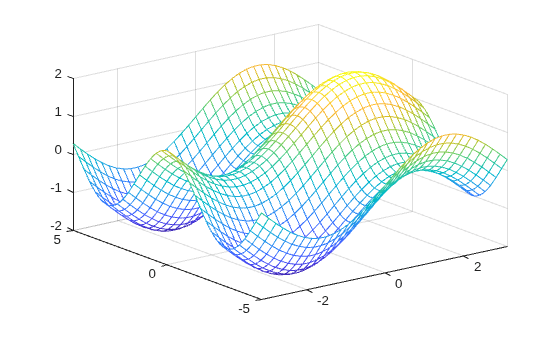

Specify Plotting Interval of Mesh Plot

Plot $$\sin (x)+\cos (y)$$ over $$-\pi <x<\pi$$ and $$-5<y<5$$ by specifying the plotting interval as the second argument of fmesh.

syms x y
f = sin(x) + cos(y);
fmesh(f, [-pi pi -5 5])

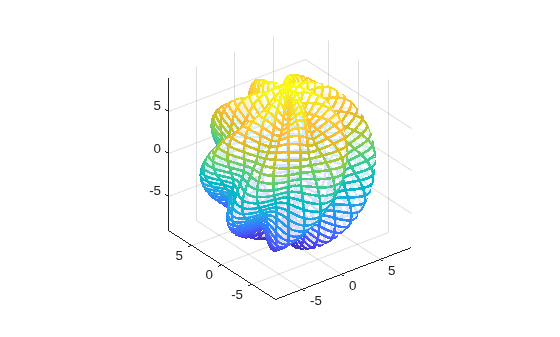

Parameterized Mesh Plot

Plot the parameterized mesh

$$\begin{array}{c}x=r\cos (s)\sin (t)\\ y=r\sin (s)\sin (t)\\ z=r\cos (t)\\ wherer=8+\sin (7s+5t)\end{array}$$

for $$0<s<2\pi$$ and $$0<t<\pi$$. Make the aspect ratio of the axes equal using axis equal. See the entire mesh by making the mesh partially transparent using alpha.

syms s t
r = 8 + sin(7*s + 5*t);
x = r*cos(s)*sin(t);
y = r*sin(s)*sin(t);
z = r*cos(t);
fmesh(x, y, z, [0 2*pi 0 pi], Linewidth=2)
axis equal
alpha(0.8)

Input Arguments

f — 3-D expression or function to be plotted

symbolic expression | symbolic function

Expression or function to be plotted, specified as a symbolic expression or function.

[min max] — Plotting interval for x- and y-axes

[–5 5] (default) | vector of two numbers

Plotting interval for x- and y-axes, specified as a vector of two numbers. The default is [-5 5].

[xmin xmax ymin ymax] — Plotting interval for x- and y-axes

[–5 5 –5 5] (default) | vector of four numbers

Plotting interval for x- and y-axes, specified as a vector of four numbers. The default is [-5 5 -5 5].

funx,funy,funz — Parametric functions of u and v

symbolic expressions | symbolic functions

Parametric functions of u and v, specified as a symbolic expression or function.

[uvmin uvmax] — Plotting interval for u and v

[–5 5] (default) | vector of two numbers

Plotting interval for u and v axes, specified as a vector of two numbers. The default is [-5 5].

[umin umax vmin vmax] — Plotting interval for u and v

[–5 5 –5 5] (default) | vector of four numbers

Plotting interval for u and v, specified as a vector of four numbers. The default is [-5 5 -5 5].

ax — Axes object

axes object

Axes object. If you do not specify an axes object, then fmesh uses the current axes.

LineSpec — Line style, marker, and color

string scalar | character vector

Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Marker='o',MarkerFaceColor='red'

MeshDensity — Number of evaluation points per direction

35 (default) | number

Number of evaluation points per direction, specified as a number. The default is 35. Because fmesh objects use adaptive evaluation, the actual number of evaluation points is greater.

Example: 100

ShowContours — Display contour plot under plot

'off' (default) | on/off logical value

Display contour plot under plot, specified as 'on' or 'off', or as numeric or logical 1 (true) or 0 (false). A value of 'on' is equivalent to true, and 'off' is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

EdgeColor — Line color

"interp" (default) | RGB triplet | hexadecimal color code | "r" | "g" | "b" | ...

Line color, specified as "interp", an RGB triplet, a hexadecimal color code, a color name, or a short name. The default value of "interp" colors the edges based on the ZData property values.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
"red"	"r"	[1 0 0]	"#FF0000"
"green"	"g"	[0 1 0]	"#00FF00"
"blue"	"b"	[0 0 1]	"#0000FF"
"cyan"	"c"	[0 1 1]	"#00FFFF"
"magenta"	"m"	[1 0 1]	"#FF00FF"
"yellow"	"y"	[1 1 0]	"#FFFF00"
"black"	"k"	[0 0 0]	"#000000"
"white"	"w"	[1 1 1]	"#FFFFFF"
"none"	Not applicable	Not applicable	Not applicable	No color

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

Example: "blue"

Example: [0 0 1]

Example: "#0000FF"

LineStyle — Line style

"-" (default) | "--" | ":" | "-." | "none"

Line style, specified as one of the options listed in this table.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line
"none"	No line	No line

LineWidth — Line width

0.5 (default) | positive value

Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line is displayed as one pixel wide.

Marker — Marker symbol

"none" (default) | "o" | "+" | "*" | "." | ...

Marker symbol, specified as one of the values listed in this table. By default, the object does not display markers. Specifying a marker symbol adds markers at each data point or vertex.

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram
"none"	No markers	Not applicable

MarkerEdgeColor — Marker outline color

"auto" (default) | color name or short name | RGB triplet | hexadecimal color code

Marker outline color, specified as one of these values:

• "auto" — Use the same color as the EdgeColor property.

• Color name (or short name) — Use a named color. Specify "red" (or "r"), "green" (or "g"), "blue" (or "b"), "cyan" (or "c"), "magenta" (or "m"), "yellow" (or "y"), "black" (or "k"), or "white" (or "w").

• RGB triplet — Use a custom color. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• Hexadecimal color code — Use a custom color. A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

MarkerFaceColor — Marker fill color

"none" (default) | "auto" | color name or short name | RGB triplet | hexadecimal color code

Marker fill color, specified as one of these values:

• "none" — Do not fill the markers with any color.

• "auto" — Use the same color as the MarkerEdgeColor property.

• Color name (or short name) — Use a named color. Specify "red" (or "r"), "green" (or "g"), "blue" (or "b"), "cyan" (or "c"), "magenta" (or "m"), "yellow" (or "y"), "black" (or "k"), or "white" (or "w").

• RGB triplet — Use a custom color. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• Hexadecimal color code — Use a custom color. A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

MarkerSize — Marker size

6 (default) | positive value

Marker size, specified as a positive value in points, where 1 point = 1/72 of an inch.

Output Arguments

obj — One or more objects

scalar | vector

One or more objects, returned as a scalar or a vector. The object is either a function surface object or parameterized mesh object, depending on the type of plot. You can use these objects to query and modify properties of a specific line. For details, see FunctionSurface Properties and ParameterizedFunctionSurface Properties.

Tips

• For additional examples, follow the fsurf page because fmesh and fsurf share the same syntax. All examples on the fsurf page apply to fmesh.

Algorithms

fmesh assigns the symbolic variables in f to the x-axis, then the y-axis, and symvar determines the order of the variables to be assigned. Therefore, variable and axis names might not correspond. To force fmesh to assign x or y to its corresponding axis, create the symbolic function to plot, then pass the symbolic function to fmesh.

For example, the following code plots the mesh of f(x,y) = sin(y) in two ways. The first way forces the waves to oscillate with respect to the y-axis. In other words, the first plot assigns the y variable to the corresponding y-axis. The second plot assigns y to the x-axis because it is the first (and only) variable in the symbolic function.

syms x y;
f(x,y) = sin(y);

figure;
subplot(2,1,1)
fmesh(f);
subplot(2,1,2)
fmesh(f(x,y)); % Or fmesh(sin(y));

Version History

Introduced in R2016a
