predict

Compute predicted values given predictor values

collapse all in page

Syntax

ypred = predict(rm,tnew)
ypred = predict(rm,tnew,Name,Value)
[ypred,yci] = predict(___)

Description

ypred = predict(rm,tnew) returns the predicted values from the repeated measures model rm using the predictor values from the table t.

example

ypred = predict(rm,tnew,Name,Value) returns the predicted values from the repeated measures model rm with additional options specified by one or more Name,Value pair arguments.

For example, you can specify the within-subjects design matrix.

example

[ypred,yci] = predict(___) also returns the 95% confidence interval for the predicted values.

example

Examples

collapse all

Open Live Script

Load the sample data.

load fisheriris

The column vector species consists of iris flowers of three different species: setosa, versicolor, and virginica. The double matrix meas consists of four types of measurements on the flowers: the length and width of sepals and petals in centimeters, respectively.

Store the data in a table array.

t = table(species,meas(:,1),meas(:,2),meas(:,3),meas(:,4), ...
    'VariableNames',{'species','meas1','meas2','meas3','meas4'});
Meas = dataset([1 2 3 4]','VarNames',{'Measurements'});

Fit a repeated measures model, where the measurements are the responses and the species is the predictor variable.

rm = fitrm(t,'meas1-meas4~species','WithinDesign',Meas);

Predict responses for the three species.

Y = predict(rm,t([1 51 101],:))
Y = 3×4

    5.0060    3.4280    1.4620    0.2460
    5.9360    2.7700    4.2600    1.3260
    6.5880    2.9740    5.5520    2.0260
Open Live Script

Load the sample data.

load longitudinalData

The matrix Y contains response data for 16 individuals. The response is the blood level of a drug measured at five time points (time = 0, 2, 4, 6, and 8). Each row of Y corresponds to an individual, and each column corresponds to a time point. The first eight subjects are female, and the second eight subjects are male. This is simulated data.

Define a variable that stores gender information.

Gender = ['F' 'F' 'F' 'F' 'F' 'F' 'F' 'F' 'M' 'M' 'M' 'M' 'M' 'M' 'M' 'M']';

Store the data in a proper table array format to perform repeated measures analysis.

t = table(Gender,Y(:,1),Y(:,2),Y(:,3),Y(:,4),Y(:,5), ...
    'VariableNames',{'Gender','t0','t2','t4','t6','t8'});

Define the within-subjects variable.

Time = [0 2 4 6 8]';

Fit a repeated measures model, where the blood levels are the responses and gender is the predictor variable.

rm = fitrm(t,'t0-t8 ~ Gender','WithinDesign',Time);

Predict the responses at intermediate times.

time = linspace(0,8)';
Y = predict(rm,t([1 5 8 12],:), ...
    'WithinModel','orthogonalcontrasts','WithinDesign',time);

Plot the predictions along with the estimated marginal means.

plotprofile(rm,'Time','Group',{'Gender'})
hold on;
plot(time,Y,'Color','k','LineStyle',':');
legend('Gender=F','Gender=M','Predictions')
hold off

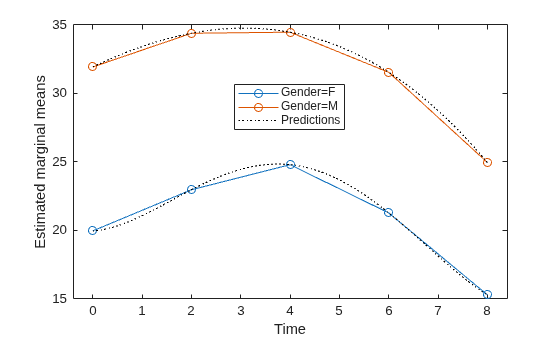

Figure contains an axes object. The axes object with xlabel Time, ylabel Estimated marginal means contains 6 objects of type line. These objects represent Gender=F, Gender=M, Predictions.

Open Live Script

Load the sample data.

load longitudinalData

The matrix Y contains response data for 16 individuals. The response is the blood level of a drug measured at five time points (time = 0, 2, 4, 6, and 8). Each row of Y corresponds to an individual, and each column corresponds to a time point. The first eight subjects are female, and the second eight subjects are male. This is simulated data.

Define a variable that stores gender information.

Gender = ['F' 'F' 'F' 'F' 'F' 'F' 'F' 'F' 'M' 'M' 'M' 'M' 'M' 'M' 'M' 'M']';

Store the data in a proper table array format to perform repeated measures analysis.

t = table(Gender,Y(:,1),Y(:,2),Y(:,3),Y(:,4),Y(:,5), ...
    'VariableNames',{'Gender','t0','t2','t4','t6','t8'});

Define the within-subjects variable.

Time = [0 2 4 6 8]';

Fit a repeated measures model, where the blood levels are the responses and gender is the predictor variable.

rm = fitrm(t,'t0-t8 ~ Gender','WithinDesign',Time);

Predict the responses at intermediate times.

time = linspace(0,8)';
[ypred,ypredci] = predict(rm,t([1 5 8 12],:), ...
    'WithinModel','orthogonalcontrasts','WithinDesign',time);

Plot the predictions and the confidence intervals for predictions along with the estimated marginal means.

p1 = plotprofile(rm,'Time','Group',{'Gender'});
hold on;
p2 = plot(time,ypred,'Color','k','LineStyle',':');
p3 = plot(time,ypredci(:,:,1),'k--');
p4 = plot(time,ypredci(:,:,2),'k--');
legend([p1;p2(1);p3(1)],'Gender=F','Gender=M','Predictions','Confidence Intervals')
hold off

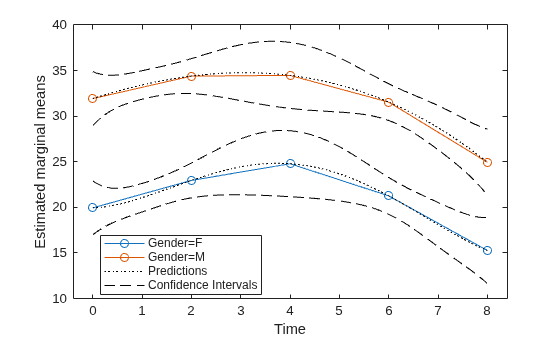

Figure contains an axes object. The axes object with xlabel Time, ylabel Estimated marginal means contains 14 objects of type line. These objects represent Gender=F, Gender=M, Predictions, Confidence Intervals.

Input Arguments

collapse all

Repeated measures model, returned as a RepeatedMeasuresModel object.

For properties and methods of this object, see RepeatedMeasuresModel.

New data including the values of the response variables and the between-subject factors used as predictors in the repeated measures model, rm, specified as a table. tnew must contain all of the between-subject factors used to create rm.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: ypred = predict(rm,tnew,'alpha',0.01)

Significance level of the confidence intervals for the predicted values, specified as the comma-separated pair consisting of 'alpha' and a scalar value in the range of 0 to 1. The confidence level is 100*(1–alpha)%.

Example: 'alpha',0.01

Data Types: double | single

Model for the within-subject factors, specified as the comma-separated pair consisting of 'WithinModel' and one of the following:

  • 'separatemeans' — Compute a separate mean for each group.

  • 'orthogonalcontrasts' — Valid when the within-subject design consists of a single numeric factor T. This specifies a model consisting of orthogonal polynomials up to order T(r-1), where r is the number of repeated measures.

  • A character vector or string scalar that defines a model specification in the within-subject factors.

Example: 'WithinModel','orthogonalcontrasts'

Data Types: char | string

Design for within-subject factors, specified as the comma-separated pair consisting of 'WithinDesign' and a vector, matrix, or a table. It provides the values of the within-subject factors in the same form as the RM.WithinDesign property.

Example: 'WithinDesign','Time'

Data Types: single | double | table

Output Arguments

collapse all

Predicted values from the repeated measures model rm, returned as an n-by-r matrix, where n is the number of rows in tnew and r is the number of repeated measures in rm.

Confidence intervals for predicted values from the repeated measures model rm, returned as an n-by-r-by-2 matrix.

These are nonsimultaneous intervals for predicting the mean response at the specified predictor values. For predicted value ypred(i,j), the lower limit of the interval is yci(i,j,1) and the upper limit is yci(i,j,2).

Version History

Introduced in R2014a
