add

Add additional data to existing Smith chart

Description

example

add(plot,data) adds data to an existing Smith chart.

add(plot,frequency,data) adds data to an existing Smith chart based on multiple data sets containing frequencies corresponding to columns of data matrix.

Examples

collapse all

Read S-parameter data.

amp = read(rfckt.amplifier,'default.s2p');
Sa = sparameters(amp);
figure
smithplot(Sa,[1,1])

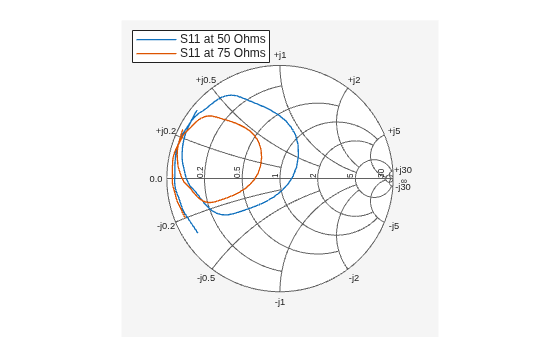

Plot S-parameter object with new impedance of Z0 = 75 Ohms.

Sa = sparameters(Sa,75);
S11 = rfparam(Sa,1,1);
Freq = Sa.Frequencies;
s = smithplot('gco');
add(s, Freq, S11);
s.LegendLabels = {'S11 at 50 Ohms', 'S11 at 75 Ohms'};

Input Arguments

collapse all

Smith chart handle, specified as a function handle. If the handle of the Smith chart is not retained during creation, it is obtained by using the command p = smithplot('gco').

Data Types: double

Input data, specified as a complex vector or complex matrix.

For a matrix D, the columns of D are independent data sets. For N-by-D arrays, dimensions 2 and greater are independent data sets.

Data Types: double
Complex Number Support: Yes

Frequency data, specified as a real vector.

Data Types: double

Version History

Introduced in R2017b
