show

Display RF budget object in RF Budget Analyzer app

    Description

    example

    show(rfobj) opens an RF Budget Analyzer app to display a clone of the rfbudget object.

    Examples

    collapse all

    Create amplifier, modulator, rfelement, and nport objects for RF budget analysis.

    a = amplifier('Name','LNA','Gain',4);
    m = modulator('ConverterType','Up','LO',100e6,'Name','Mod');
    r = rfelement('Gain',10,'NF',3,'OIP3',2);
    n = nport('passive.s2p');


    Compute RF budget results for chain of 2-port elements at an input frequency of 2.1 GHz, an available input power of -30 dBm, and a bandwidth of 10 MHz.

    b = rfbudget([a m r n],2.1e9,-30,10e6);

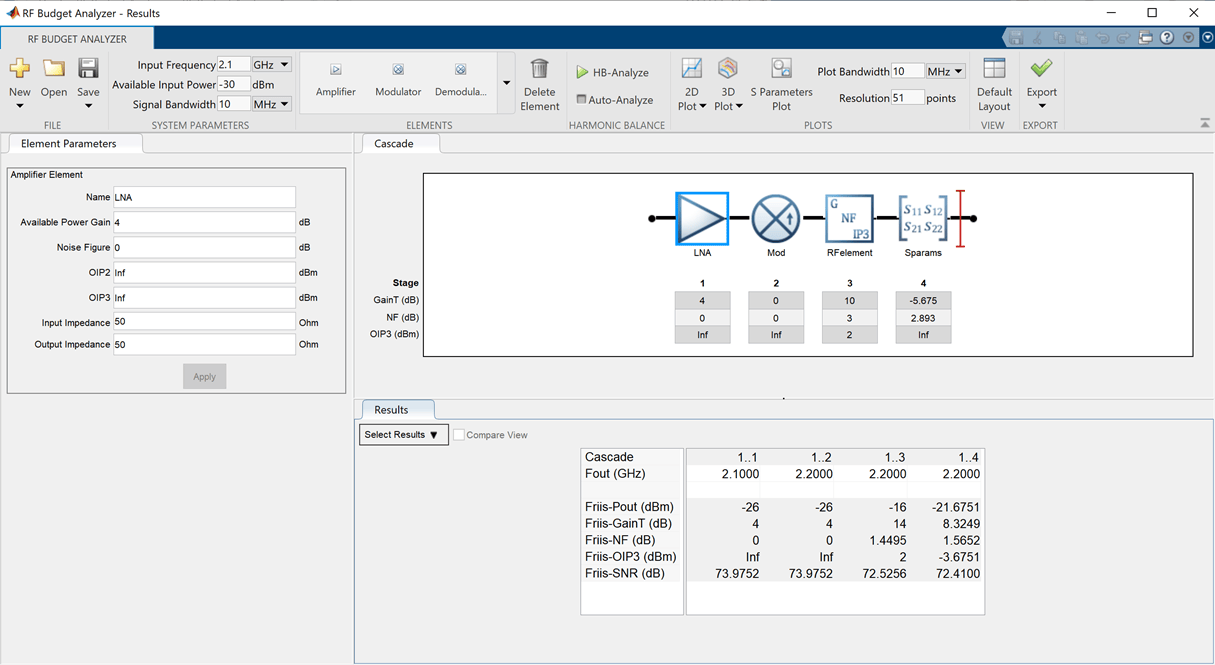

    To display the RF budget results for exploration in the RF Budget Analyzer app, type show(b) in command line.

    Input Arguments

    collapse all

    RF budget analysis object, specified as an object handle.

    Introduced in R2017a
