Matched filter coefficients derived from waveform

Since R2023a



coeff = getMatchedFilter(waveform) returns the matched filter coefficients coeff for the pulse FM waveform object.

coeff = getMatchedFilter(waveform,FrequencyOffset = foffset) also specifies a frequency offset foffset when matched filter coefficients are generated. To enable this syntax, set the FrequencyOffsetSource property of the waveform to 'Input port'.


collapse all

Get the matched filter coefficients for a linear FM pulse.

waveform = phased.LinearFMWaveform('PulseWidth',5e-05,...
coeff = getMatchedFilter(waveform);

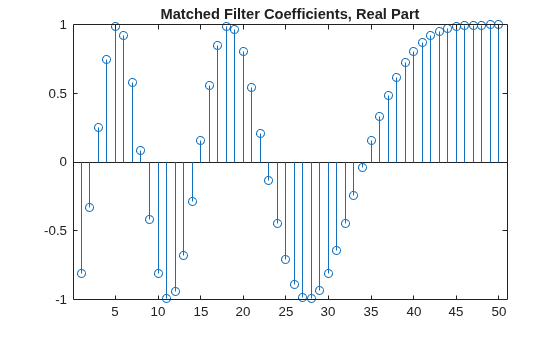

title('Matched Filter Coefficients, Real Part')

Input Arguments

collapse all

Pulse waveform, specified as a waveform System object.

Example: phased.RectangularWaveform

Frequency offset, specified as a scalar. Units are in Hz.

Example: 12000.0

Data Types: double

Output Arguments

collapse all

Matched filter coefficients, returned as a complex-valued column vector. Units are dimensionless.

Version History

Introduced in R2023a
