isPolarizationCapable

Polarization capability

collapse all in page

Syntax

flag = isPolarizationCapable(h)

Description

flag = isPolarizationCapable(h) returns a logical value, flag, indicating whether the array supports polarization. An array supports polarization if all of its constituent sensor elements support polarization.

example

Examples

collapse all

Open Live Script

Show that a disk heterogeneous conformal array of short-dipole antennas supports polarization.

antenna1 = phased.ShortDipoleAntennaElement(...
    'FrequencyRange',[100e6 1e9],...
    'AxisDirection','Z');
antenna2 = phased.ShortDipoleAntennaElement(...
    'FrequencyRange',[100e6 1e9],...
    'AxisDirection','Y');
elemAngles = ([0:5]*360/6);
elemPosInner = 0.5*[zeros(size(elemAngles));...
    cosd(elemAngles); sind(elemAngles)];
elemPosOuter = [zeros(size(elemAngles));...
    cosd(elemAngles); sind(elemAngles)];
elemNorms = repmat([0;0],1,12);
array = phased.HeterogeneousConformalArray(...
    'ElementSet',{antenna1,antenna2},...
    'ElementIndices',[1 1 1 1 1 1 2 2 2 2 2 2],...
    'ElementPosition',[elemPosInner,elemPosOuter],...
    'ElementNormal',elemNorms);

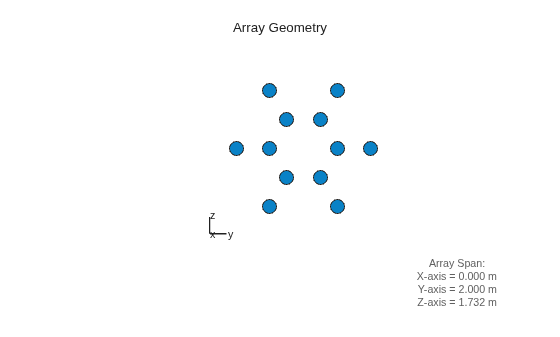

viewArray(array)

Figure contains an axes object. The hidden axes object with xlabel x axis (Az 0 El 0) -->, ylabel y axis --> contains 7 objects of type scatter, line, text.

isPolarizationCapable(array)
ans = logical
   1

The returned value of 1 shows that this array supports polarization when used with a polarized antenna.

Input Arguments

collapse all

Conformal array, specified as a phased.HeterogeneousConformalArray System object.

Output Arguments

collapse all

Polarization-capability flag, returned as a logical value true if the array supports polarization or false if it does not.

Version History

Introduced in R2013a
