interpolateElectricField

Interpolate electric field in electrostatic or DC conduction result at arbitrary spatial locations

Since R2021a

Syntax

Eintrp = interpolateElectricField(results,xq,yq)

Eintrp = interpolateElectricField(results,xq,yq,zq)

Eintrp = interpolateElectricField(results,querypoints)

Description

Eintrp = interpolateElectricField(results,xq,yq) returns the interpolated electric field values at the 2-D points specified in xq and yq.

Eintrp = interpolateElectricField(results,xq,yq,zq) uses 3-D points specified in xq, yq, and zq.

Eintrp = interpolateElectricField(results,querypoints) returns the interpolated electric field values at the points specified in querypoints.

Examples

Interpolate Electric Field in 2-D Electrostatic Analysis

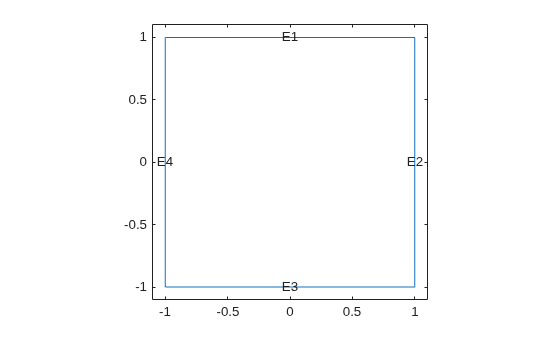

Create a square geometry and plot it with the edge labels.

R1 = [3,4,-1,1,1,-1,1,1,-1,-1]';
g = decsg(R1,'R1',('R1')');
pdegplot(g,EdgeLabels="on")
xlim([-1.1 1.1])
ylim([-1.1 1.1])

Create an femodel object for electrostatic analysis and include the geometry into the model.

model = femodel(AnalysisType="electrostatic", ...
                Geometry=g);

Specify the vacuum permittivity in the SI system of units.

model.VacuumPermittivity = 8.8541878128E-12;

Specify the relative permittivity of the material.

model.MaterialProperties = ...
    materialProperties(RelativePermittivity=1);

Apply the voltage boundary conditions on the edges of the square.

model.EdgeBC([1 3]) = edgeBC(Voltage=0);
model.EdgeBC([2 4]) = edgeBC(Voltage=1000);

Specify the charge density for the entire geometry.

model.FaceLoad = faceLoad(ChargeDensity=5E-9);

Generate the mesh.

model = generateMesh(model);

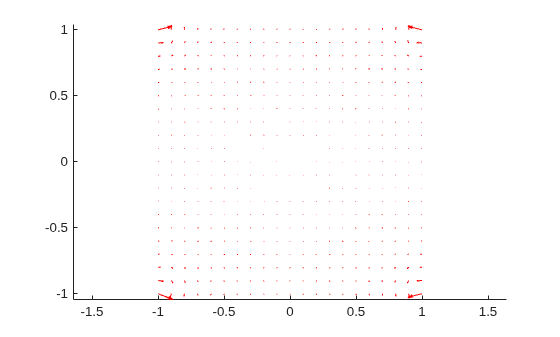

Solve the model and plot the electric field.

R = solve(model);
pdeplot(R.Mesh,FlowData=[R.ElectricField.Ex ...
                         R.ElectricField.Ey])
axis equal

Interpolate the resulting electric field to a grid covering the central portion of the geometry, for x and y from -0.5 to 0.5.

v = linspace(-0.5,0.5,51);
[X,Y] = meshgrid(v);

Eintrp = interpolateElectricField(R,X,Y)

Eintrp =
  FEStruct with properties:

    Ex: [2601×1 double]
    Ey: [2601×1 double]

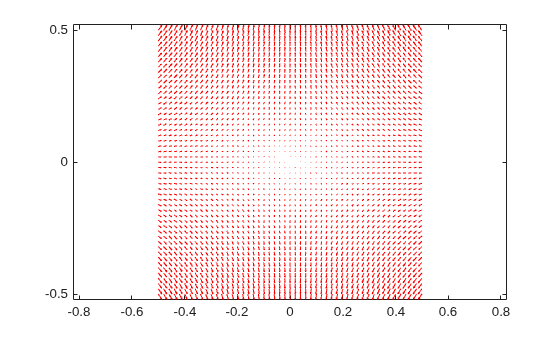

Reshape Eintrp.Ex and Eintrp.Ey and plot the resulting electric field.

EintrpX = reshape(Eintrp.Ex,size(X));
EintrpY = reshape(Eintrp.Ey,size(Y));

figure
quiver(X,Y,EintrpX,EintrpY,Color="red")
axis equal

Alternatively, you can specify the grid by using a matrix of query points.

querypoints = [X(:),Y(:)]';
Eintrp = interpolateElectricField(R,querypoints);

Interpolate Electric Field in 3-D Electrostatic Analysis

Create an femodel object for electrostatic analysis and include a geometry of a plate with a hole into the model.

model = femodel(AnalysisType="electrostatic", ...
                Geometry="PlateHoleSolid.stl");

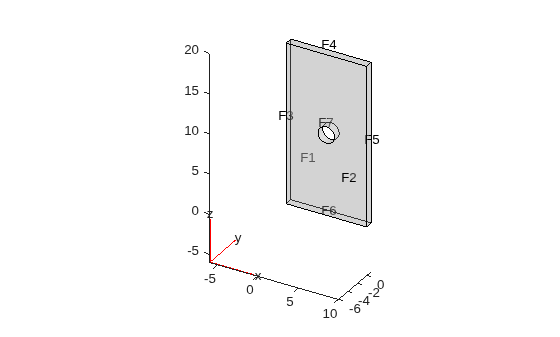

Plot the geometry.

pdegplot(model.Geometry,FaceLabels="on",FaceAlpha=0.3)

Specify the vacuum permittivity in the SI system of units.

model.VacuumPermittivity = 8.8541878128E-12;

Specify the relative permittivity of the material.

model.MaterialProperties = ...
    materialProperties(RelativePermittivity=1);

Specify the charge density for the entire geometry.

model.CellLoad = cellLoad(ChargeDensity=5E-9);

Apply the voltage boundary conditions on the side faces and the face bordering the hole.

model.FaceBC(3:6) = faceBC(Voltage=0);
model.FaceBC(7) = faceBC(Voltage=1000);

Generate the mesh.

model = generateMesh(model);

Solve the model.

R = solve(model)

R =
  ElectrostaticResults with properties:

      ElectricPotential: [4747×1 double]
          ElectricField: [1×1 FEStruct]
    ElectricFluxDensity: [1×1 FEStruct]
                   Mesh: [1×1 FEMesh]

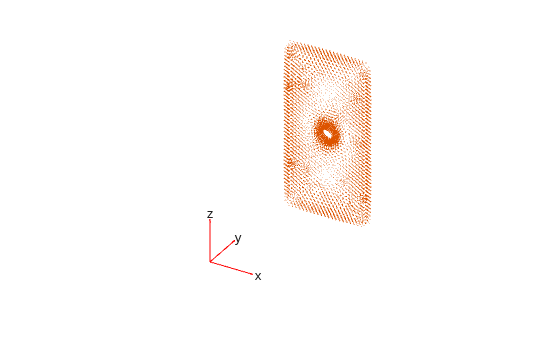

Plot the electric field.

pdeplot3D(R.Mesh,FlowData=[R.ElectricField.Ex ...
                           R.ElectricField.Ey ...
                           R.ElectricField.Ez])

Interpolate the resulting electric field to a grid covering the central portion of the geometry, for x, y, and z.

x = linspace(3,7,7);
y = linspace(0,1,7);
z = linspace(8,12,7);
[X,Y,Z] = meshgrid(x,y,z);

Eintrp = interpolateElectricField(R,X,Y,Z)

Eintrp =
  FEStruct with properties:

    Ex: [343×1 double]
    Ey: [343×1 double]
    Ez: [343×1 double]

Reshape Eintrp.Ex, Eintrp.Ey, and Eintrp.Ez.

EintrpX = reshape(Eintrp.Ex,size(X));
EintrpY = reshape(Eintrp.Ey,size(Y));
EintrpZ = reshape(Eintrp.Ez,size(Z));

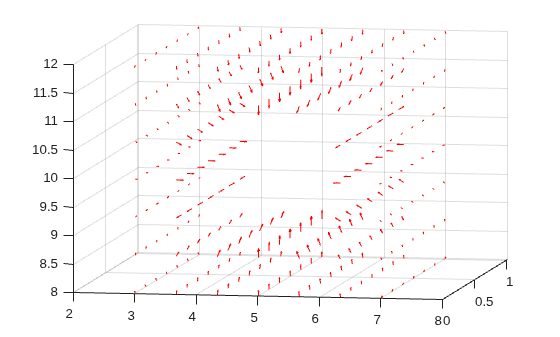

Plot the resulting electric field.

figure
quiver3(X,Y,Z,EintrpX,EintrpY,EintrpZ,Color="red")
view([10 10])

Input Arguments

results — Solution of electrostatic or DC conduction problem

ElectrostaticResults object | ConductionResults object

Solution of an electrostatic or DC conduction problem, specified as an ElectrostaticResults or ConductionResults object. Create results using the solve function.

xq — x-coordinate query points

real array

x-coordinate query points, specified as a real array. interpolateElectricField evaluates the electric field at the 2-D coordinate points [xq(i) yq(i)] or at the 3-D coordinate points [xq(i) yq(i) zq(i)] for every i. Because of this, xq, yq, and (if present) zq must have the same number of entries.

interpolateElectricField converts the query points to column vectors xq(:), yq(:), and (if present) zq(:). It returns electric field values as a column vector of the same size. To ensure that the dimensions of the returned solution are consistent with the dimensions of the original query points, use reshape. For example, use EintrpX = reshape(Eintrp.Ex,size(xq)).

Example: xq = [0.5 0.5 0.75 0.75]

Data Types: double

yq — y-coordinate query points

real array

y-coordinate query points, specified as a real array. interpolateElectricField evaluates the electric field at the 2-D coordinate points [xq(i) yq(i)] or at the 3-D coordinate points [xq(i),yq(i),zq(i)] for every i. Because of this, xq, yq, and (if present) zq must have the same number of entries.

interpolateElectricField converts the query points to column vectors xq(:), yq(:), and (if present) zq(:). It returns electric field values as a column vector of the same size. To ensure that the dimensions of the returned solution are consistent with the dimensions of the original query points, use reshape. For example, use EintrpY = reshape(Eintrp.Ey,size(yq)).

Example: yq = [1 2 0 0.5]

Data Types: double

zq — z-coordinate query points

real array

z-coordinate query points, specified as a real array. interpolateElectricField evaluates the electric field at the 3-D coordinate points [xq(i) yq(i) zq(i)]. Therefore, xq, yq, and zq must have the same number of entries.

interpolateElectricField converts the query points to column vectors xq(:), yq(:), and zq(:). It returns electric field values as a column vector of the same size. To ensure that the dimensions of the returned solution are consistent with the dimensions of the original query points, use reshape. For example, use EintrpZ = reshape(Eintrp.Ez,size(zq)).

Example: zq = [1 1 0 1.5]

Data Types: double

querypoints — Query points

real matrix

Query points, specified as a real matrix with either two rows for 2-D geometry or three rows for 3-D geometry. interpolateElectricField evaluates the electric field at the coordinate points querypoints(:,i) for every i, so each column of querypoints contains exactly one 2-D or 3-D query point.

Example: For a 2-D geometry, querypoints = [0.5 0.5 0.75 0.75; 1 2 0 0.5]

Data Types: double

Output Arguments

Eintrp — Electric field at query points

FEStruct object

Electric field at query points, returned as an FEStruct object with the properties representing the spatial components of the electric field at the query points. For query points that are outside the geometry, Eintrp.Ex(i), Eintrp.Ey(i), and Eintrp.Ez(i) are NaN. Properties of an FEStruct object are read-only.

Version History

Introduced in R2021a

R2022b: Electric field in DC conduction results

The function now interpolates electric field in DC conduction results in addition to electrostatic results.
