# plan

Find shortest path between two states in graph

Since R2023a

## Syntax

``path = plan(planner,start,goal)``
``[path,solutionInfo] = plan(___)``

## Description

example

````path = plan(planner,start,goal)` finds the shortest path `path` between a specified `start` and `goal` in the graph using the specified A* path planner `planner`.```
````[path,solutionInfo] = plan(___)` returns the solution information of the path planning `solutionInfo`.```

## Examples

collapse all

`load("queenslandRoutes","places","routes")`

Specify states, links, and weights for a `navGraph` object.

```states = places.utm; % UTM coordinates of cities names = places.name; % Names of cities links = [routes.start routes.end]; % Adjacent cities weights = routes.time; % Travel time between adjacent cities```

Create a `navGraph` object.

```graphObj = navGraph(states,links,Weight=weights, ... Name=names);```

Create a graph-based A* path planner.

`planner = plannerAStar(graphObj);`

Create a deep copy of the `plannerAStar` object.

`planner2 = copy(planner)`
```planner2 = plannerAStar with properties: HeuristicCostFcn: @nav.algs.distanceManhattan TieBreaker: 0 Graph: [1x1 navGraph] ```

Specify a heuristic function returns an estimated time to reach the goal.

```planner.HeuristicCostFcn = @(state1,state2) ... sum(abs(state1-state2),2)/100;```

Define the start and goal cities.

```start = "Hughenden"; goal = "Brisbane";```

Find the shortest path using the graph-based A* algorithm.

`[pathOutput,solutionInfo] = plan(planner,start,goal);`

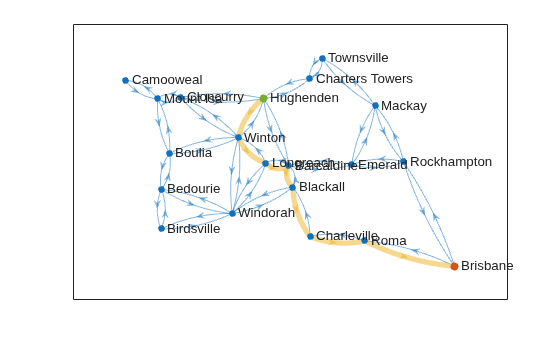

Visualize the results.

```h = show(graphObj); set(h,XData=graphObj.States.StateVector(:,1), ... YData=graphObj.States.StateVector(:,2)) pathStateIDs = solutionInfo.PathStateIDs; highlight(h,pathStateIDs,EdgeColor="#EDB120",LineWidth=4) highlight(h,pathStateIDs(1),NodeColor="#77AC30",MarkerSize=5) highlight(h,pathStateIDs(end),NodeColor="#D95319",MarkerSize=5)```

## Input Arguments

collapse all

A* path planner, specified as a `plannerAStar` object.

Start state of the path, specified as a positive integer, string scalar, character vector, or numeric vector.

• Positive integer — Specify the state ID of the start state. The state ID is the index of the state in the `navGraph` object in the Graph property of `planner`.

• String scalar or character vector — Specify the name of the state.

• Numeric vector — Specify the coordinates of the state.

Example: `1`

Example: `"Brisbane"`

Example: `[1095.91458671447 6947.04365801860]`

Data Types: `single` | `double` | `char` | `string`

Goal state of the path, specified as a positive integer, string scalar, character vector, or numeric vector.

• Positive integer — Specify the state ID of the start state. The state ID is the index of the state in the `navGraph` object in the Graph property of `planner`.

• String scalar or character vector — Specify the name of the state.

• Numeric vector — Specify the coordinates of the state.

Example: `5`

Example: `"Hughenden"`

Example: `[208.622393818849 7691.91766093269]`

Data Types: `single` | `double` | `char` | `string`

## Output Arguments

collapse all

Shortest path between states, returned as a numeric matrix.

Data Types: `double`

Solution information, returned as a structure. The fields of the structure are:

FieldDescription
`IsPathFound`

Indicates whether a path has been found. Returns `true` if a path has been found. Otherwise, returns `false`.

`PathStateIDs`

List of IDs of the states along the path found by A*. By default, the IDs are the numeric indices of the states in the graph object. If you specify names for the states while constructing the graph object, this field contains the names instead.

`PathCost`

Total cost of the path. If no path is found, then the cost is `NaN`.

`ExploredStateIDs`

List of IDs of the states explored by A* during the search. By default, the IDs are the numeric indices of the states in the graph object. If you specify names for the states while constructing the graph object, this field contains the names instead.

`NumExploredStates`

Number of states explored during the search. Equal to the length of the `ExploredStateIDs` list.

Data Types: `struct`

## Version History

Introduced in R2023a
