correct

Correct state and state error covariance

Since R2021b

Syntax

[associations,newLandmark] = correct(slamObj,measurement,measurementCovariance)

[associations,newLandmark] = correct(slamObj,measurement,measurementCovariance,varargin)

Description

[associations,newLandmark] = correct(slamObj,measurement,measurementCovariance) corrects the state and its associated state covariance based on the measurement and measurementCovariance at the current time step. correct uses the data association function specified in the DataAssociationFcn property of the ekfSLAM object, slamObj, to associate the measurement to landmarks and extract new landmarks from the measurement.

The correct function uses these associations to correct the state and associated state covariance, then augments the state with new landmarks.

[associations,newLandmark] = correct(slamObj,measurement,measurementCovariance,varargin) passes all additional arguments specified in varargin to the underlying DataAssociationFcn property of slamObj.

The first four inputs to the DataAssociationFcn property are the landmark position, landmark position covariance, measurement, and measurement covariance, followed by all arguments in varargin.

Examples

Perform Landmark SLAM Using Extended Kalman Filter

Load a race track data set that contains the initial vehicle state, initial vehicle state covariance, process noise covariance, control input, time step size, measurement, measurement covariance, and validation gate values.

load("racetrackDataset.mat","initialState","initialStateCovariance", ...
     "processNoise","controllerInputs","timeStep", ...
     "measurements","measCovar","validationGate");

Create an ekfSLAM object with initial state, initial state covariance, and process noise.

ekfSlamObj = ekfSLAM("State",initialState, ...
                     "StateCovariance",initialStateCovariance, ...
                     "ProcessNoise",processNoise);

Initialize a variable to store the pose.

storedPose = nan(size(controllerInputs,1)+1,3);
storedPose(1,:) = ekfSlamObj.State(1:3);

Predict the state using the control input and time step size for the state transition function. Then, correct the state using the data of the observed landmarks, measurement covariance, and validation gate for the data association function.

for count = 1:size(controllerInputs,1)
    % Predict the state
    predict(ekfSlamObj,controllerInputs(count,:),timeStep);

    % Get the landmarks in the environment
    observedLandmarks = measurements{count};

    % Correct the state
    if ~isempty(observedLandmarks)
        correct(ekfSlamObj,observedLandmarks, ...
                measCovar,validationGate);
    end

    % Log the estimated pose
    storedPose(count+1,:) = ekfSlamObj.State(1:3);
end

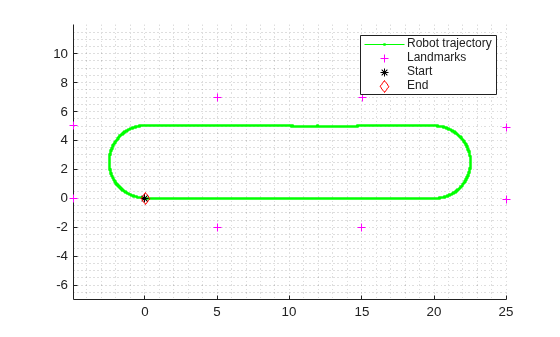

Visualize the created map.

fig = figure;
figAx = axes(fig);
axis equal
grid minor
hold on
plot(figAx,storedPose(:,1),storedPose(:,2),"g.-")
landmarks = reshape(ekfSlamObj.State(4:end),2,[])';
plot(figAx,landmarks(:,1),landmarks(:,2),"m+")
plot(figAx,storedPose(1,1),storedPose(1,2),"k*")
plot(figAx,storedPose(end,1),storedPose(end,2),"rd")
legend("Robot trajectory","Landmarks","Start","End")

Input Arguments

slamObj — EKF SLAM object

ekfSLAM object

EKF SLAM object, specified as an ekfSLAM object.

measurement — Measurements of landmarks in environment

N-by-K matrix

Measurements of the landmarks in the environment, specified as an N-by-K matrix. K is the dimension of the measurement. N is the number of measurements.

Data Types: single | double

measurementCovariance — Covariance of measurements

K-element vector | N*K-by-N*K matrix

Covariance of the measurements, specified as a K-element vector or N*K-by-N*K matrix. K is the dimension of the measurement. N is the number of measurements. When specified as a vector, the same covariance value is used for all measurements.

Data Types: single | double

varargin — Variable-length input argument list

comma-separated list

Variable-length input argument list, specified as a comma-separated list. This input is passed directly into the DataAssociationFcn property of slamObj. When you call:

correct(slamObj,measurement,measurementCovariance,arg1,arg2)

MATLAB^® essentially calls the dataAssociationFcn as:

dataAssociationFcn(knownLandmarks,knownLandmarksCovariance, ...
measurement,measurementCovariance,arg1,arg2)

Output Arguments

associations — List of associations of landmarks to measurements

P-by-2 matrix

List of associations of landmarks to measurements, returned as a P-by-2 matrix. P is the number of associations. The first column of the matrix contains the indices of the associated landmarks, and the second column contains the associated measurement indices.

newLandmark — List of indices of measurements that qualify as new landmarks

Q-element vector

List of indices of the measurements that qualify as new landmarks, returned as a Q-element vector. Q is the number of measurements that qualify as new landmarks.
