smoothdata2

Smooth noisy data in two dimensions

Since R2023b

Syntax

S = smoothdata2(A)

S = smoothdata2(A,method)

S = smoothdata2(A,method,window)

S = smoothdata2(___,nanflag)

S = smoothdata2(___,Name=Value)

[S,winsize] = smoothdata2(___)

Description

S = smoothdata2(A) smooths entries of A using a moving average. smoothdata2 determines the moving window size from the entries in A.

S = smoothdata2(A,method) smooths entries using the specified smoothing method. For example, smoothdata2(A,"movmedian") smooths by computing the median over each 2-D window of A.

S = smoothdata2(A,method,window) specifies the size of the moving window. window specifies the number of preceding rows, succeeding rows, preceding columns, and succeeding columns to include in the window for the current element.

S = smoothdata2(___,nanflag) specifies whether to omit or include NaN values in A. Use this option in addition to any of the input argument combinations in previous syntaxes. For example, smoothdata2(A,"includenan") includes all NaN values when smoothing. By default, smoothdata2 ignores NaN values.

S = smoothdata2(___,Name=Value) specifies additional parameters for smoothing using one or more name-value arguments. For example, smoothdata2(A,SmoothingFactor=0.5) adjusts the level of smoothing by specifying a factor that scales the window size that smoothdata2 determines from the entries in A.

[S,winsize] = smoothdata2(___) also returns the window description. If window is specified as an input, then the returned window description is the same as the specified window description.

Examples

Smooth Data Using Moving Average

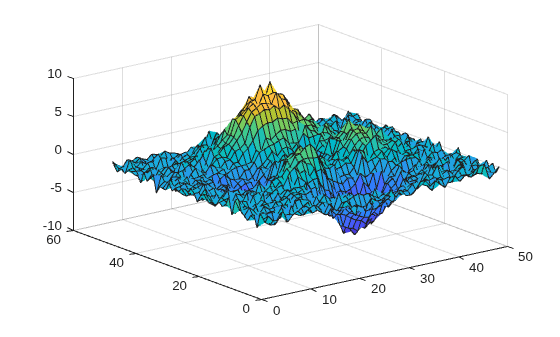

Create a matrix containing noise, and visualize the matrix along the z-dimension using a surface plot.

A = peaks;
rng(0,"twister")
A = A + 0.5*randn(size(A));

surf(A)

Smooth the data using a moving average.

B = smoothdata(A);

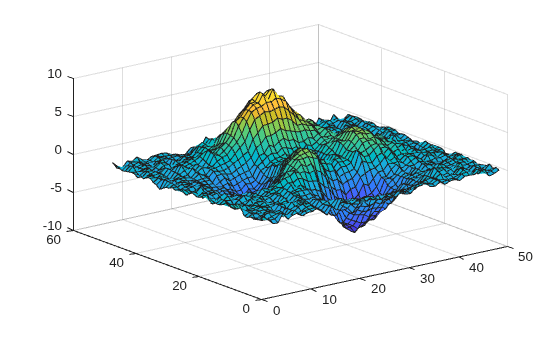

Visualize the smoothed data.

surf(B)

Compare Smoothing Methods

In this example, explore and compare 2D smoothing methods. Each method has its own advantages and is suitable for different types of data and noise characteristics.

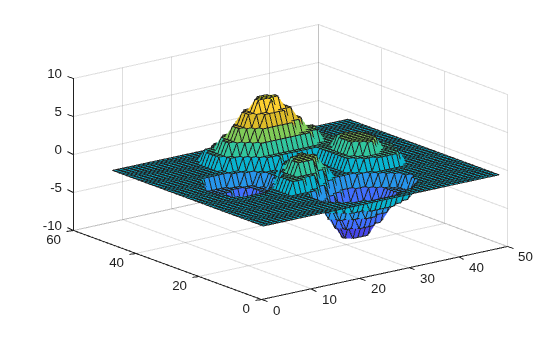

Create a matrix of data that is discretized and has sharp edges, and visualize the matrix using a surface plot.

[bins,edges] = discretize(peaks,10);
A = edges(bins);

surf(A)

Smooth the data using moving statistic smoothing methods.

B = smoothdata2(A);
B2 = smoothdata2(A,"movmedian");

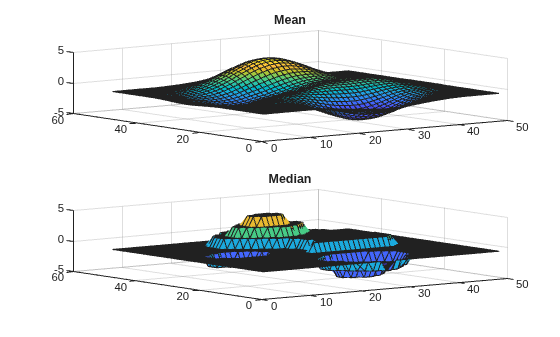

Compare the results of the smoothing methods by visualizing the smoothed data. The moving mean method is preferable to the moving median method for discretized 2D data with sharp edges. While the moving median method is robust against outliers, it may not adequately address the sharp edges in the data due to its focus on the middle value alone.

tiledlayout(2,1)

nexttile
surf(B)
title("Mean")

nexttile
surf(B2)
title("Median")

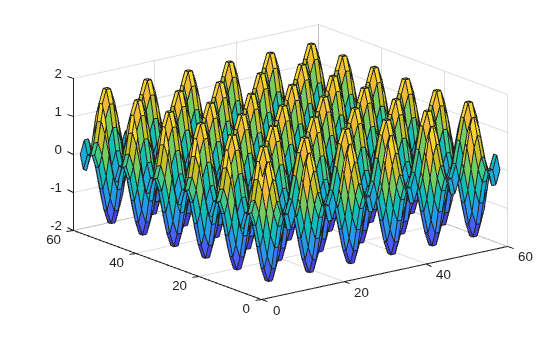

Create a matrix with sharp variations occurring over an area smaller than the size of the smoothing window.

x = 1:59;
y = sin(x/5*pi);
A2 = y + y';

figure
surf(A2)

Smooth the data using a moving statistic smoothing method and a local regression smoothing method.

B3 = smoothdata2(A2,"movmean",9);
B4 = smoothdata2(A2,"gaussian",9);

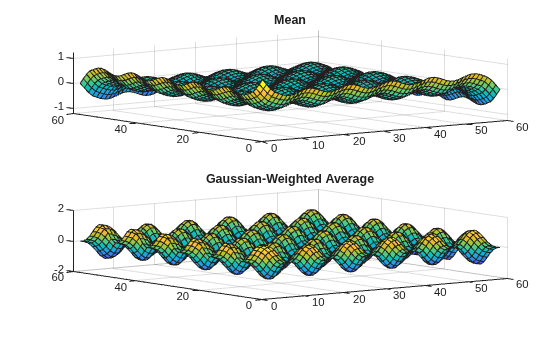

Compare the results of the smoothing methods by visualizing the smoothed data. The Gaussian smoothing method is better suited than the moving mean method for smoothing data with sharp variations due to its ability to preserve the sharp features while reducing noise. Unlike the moving mean method, which applies a simple average over the window, Gaussian smoothing uses a weighted average that assigns higher weights to nearby points.

tiledlayout(2,1)

nexttile
surf(B3)
title("Mean")

nexttile
surf(B4)
title("Gaussian-Weighted Average")

Specify Moving Window Size

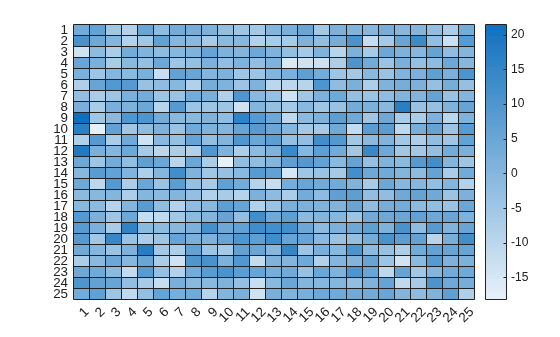

Create a matrix containing noise, and visualize the matrix along the z-dimension using a heatmap chart.

A = peaks(25);
rng(0,"twister")
A = A + 6*randn(size(A));

heatmap(A)

Smooth the data by averaging over each 2-D window of A. Define the moving window as a 2-by-3 block of entries neighboring the current element.

B = smoothdata2(A,"movmean",{2 3});

Smooth the data over a larger moving window that is a 4-by-4 block of entries.

B2 = smoothdata2(A,"movmean",4);

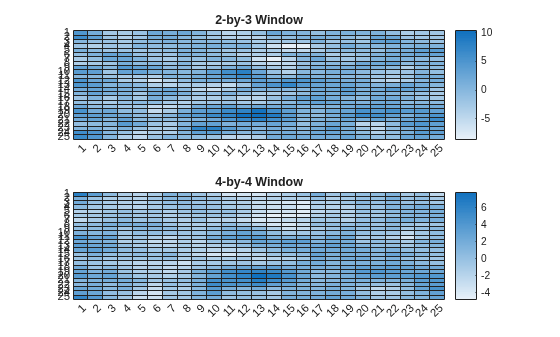

Compare the results of the window sizes by visualizing the smoothed data.

tiledlayout(2,1)

nexttile
heatmap(B,Title="2-by-3 Window")

nexttile
heatmap(B2,Title="4-by-4 Window")

Specify Window Size Factor

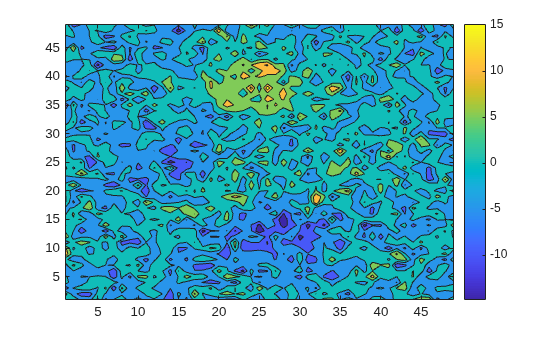

Create a matrix containing noise, and visualize the matrix using a filled 2-D contour plot.

A = peaks;
rng(0,"twister")
A = A + 4*randn(size(A));

contourf(A);
colorbar

Smooth the data by averaging over each 2-D window of A. smoothdata2 determines the window size heuristically based on the input data and the default window size factor 0.25. Return the window size.

[B,winsize] = smoothdata2(A);
winsize

winsize=1×2 cell array
    {[3]}    {[3]}

Smooth using a larger window size, resulting in more smoothing, by specifying a larger window size factor.

[B2,winsize2] = smoothdata2(A,SmoothingFactor=0.5);
winsize2

winsize2=1×2 cell array
    {[5]}    {[5]}

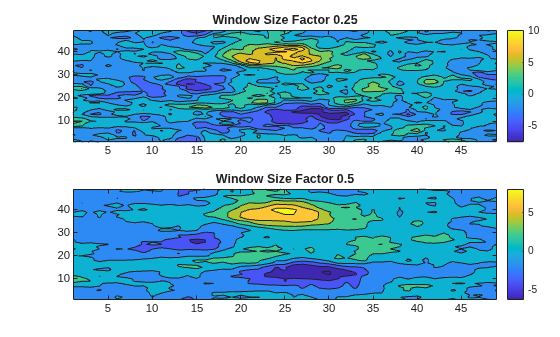

Compare the results of the window size factors by visualizing the smoothed data.

tiledlayout(2,1)

nexttile
contourf(B)
title("Window Size Factor 0.25")
colorbar

nexttile
contourf(B2)
title("Window Size Factor 0.5")
colorbar

Smooth Data with Sample Points

Create a matrix of nonuniformly spaced data. Specify the sample points in vectors xs and ys.

t = linspace(0,10,30);
xs = cumsum(sin(pi/11*t));
ys = xs;
A = sin(xs'/5)*cos(ys/5);

rng(0,"twister")
A = A+randn(size(A))*0.5;

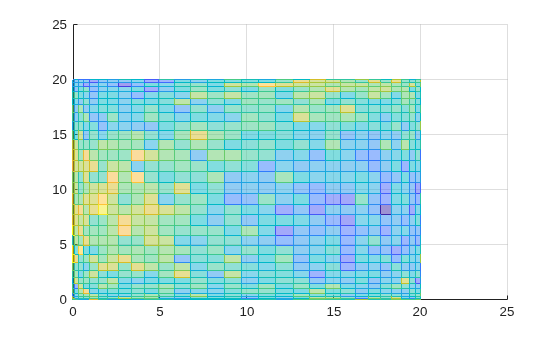

Visualize the matrix using a mesh surface plot.

m = mesh(xs',ys,A,FaceAlpha=0.5);
m.FaceColor = "flat";
view(0,90)

Smooth the data using linear regression over each 2-D window of A. Specify the window size, and specify the x-axis and y-axis locations of the data.

B = smoothdata2(A,"loess",{[2 3],[4 3]},SamplePoints={xs,ys});

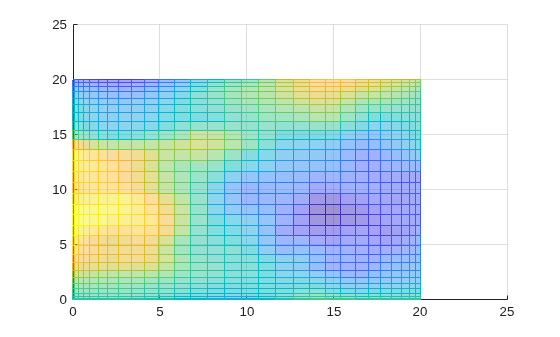

Visualize the smoothed data.

m2 = mesh(xs',ys,B,FaceAlpha=0.5);
m2.FaceColor = "flat";
view(0,90)

Input Arguments

A — Input data

numeric array

Input data, specified as a numeric array.

Complex Number Support: Yes

method — Smoothing method

"movmean" (default) | "movmedian" | "gaussian" | "lowess" | "loess" | "sgolay"

Smoothing method, specified as one of these values:

• "movmean" — Average over each 2-D window of A. This method is useful for reducing periodic trends in data.

• "movmedian" — Median over each 2-D window of A. This method is useful for reducing periodic trends in data when outliers are present.

• "gaussian" — Gaussian-weighted average over each 2-D window of A.

• "lowess" — Linear regression over each 2-D window of A. This method can be computationally expensive but results in fewer discontinuities.

• "loess" — Quadratic regression over each 2-D window of A. This method is slightly more computationally expensive than "lowess".

• "sgolay" — Savitzky-Golay filter, which smooths according to a quadratic polynomial that is fitted over each 2-D window of A. This method can be more effective than other methods when the data varies rapidly.

window — Window size

positive integer or duration scalar | two-element cell array of positive integer or duration values | two-element cell array of two-element vectors of nonnegative integer or duration values

Window size, specified as a positive integer or duration scalar, two-element cell array of positive integer or duration values, or two-element cell array of two-element vectors of nonnegative integer or duration values. smoothdata2 defines the window relative to the sample points.

• When window is a positive integer scalar, then the window is a window-by-window block centered about the current element.

• If window is a two-element cell array of positive integers {m n}, then the window is an m-by-n block centered about the current element.

• If window is a two-element cell array of two-element vectors of nonnegative integers {[bRow fRow] [bCol fCol]}, then the window contains the row and column of the current element, the preceding bRow and succeeding fRow rows, and the preceding bCol and succeeding fCol columns.

When SamplePoints contains datetime or duration values, window must be of type duration.

For more information about the window position, see Moving Window Size.

Example: smoothdata2(A,"movmean",4)

Example: smoothdata2(A,"movmedian",{2 3})

Example: smoothdata2(A,"movmedian",{[0 2] [3 3]})

nanflag — Missing value condition

"omitmissing" (default) | "omitnan" | "includemissing" | "includenan"

Missing value condition, specified as one of these values:

• "omitmissing" or "omitnan" — Ignore NaN values in A when smoothing. If all elements in the window are NaN, then the corresponding elements in S are NaN. "omitmissing" and "omitnan" have the same behavior.

• "includemissing" or "includenan" — Include NaN values in A when smoothing. If any element in the window is NaN, then the corresponding elements in S are NaN. "includemissing" and "includenan" have the same behavior.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: S = smoothdata2(A,SmoothingFactor=0.5)

SamplePoints — Sample points

two-element cell array of vectors

Sample points, specified as a two-element cell array of vectors of sample point values. The sample points in the first vector represent the data locations along the columns of A, and the sample points in the second vector represent the data locations along the rows of A. Both vectors must be sorted and must not contain duplicate elements. Sample points do not need to be uniformly spaced. If A is an m-by-n matrix, then the default value of SamplePoints is {1:n 1:m}.

Moving windows are defined relative to the sample points. When the sample point vectors have data type datetime or duration, the moving window description must have type duration.

SmoothingFactor — Window size factor

0.25 (default) | scalar ranging from 0 to 1

Window size factor, specified as a scalar ranging from 0 to 1. Generally, the value of SmoothingFactor adjusts the level of smoothing by scaling the heuristic window size. Values near 0 produce smaller moving window sizes, resulting in less smoothing. Values near 1 produce larger moving window sizes, resulting in more smoothing. In some cases, depending on the input data from which the heuristic window size is determined, the value of SmoothingFactor may not have a significant impact on the window size used by smoothdata2.

You cannot specify SmoothingFactor if you specify the window input argument.

Degree — Savitzky-Golay degree

2 (default) | nonnegative integer

Savitzky-Golay degree, specified as a nonnegative integer. You can only specify this name-value argument when "sgolay" is the specified smoothing method. The value of Degree corresponds to the degree of the polynomial in the Savitzky-Golay filter that fits the data within each window.

Output Arguments

S — Smoothed data

numeric array

Smoothed data, returned as a numeric array. S is the same size as A.

winsize — Window description

positive integer or duration scalar | two-element cell array of positive integer or duration values | two-element cell array of two-element vectors of nonnegative integer or duration values

Window description, returned as a positive integer or duration scalar, a two-element cell array of positive integer or duration values, or a two-element cell array of two-element vectors of nonnegative integer or duration values.

If you specify window as an input argument, then winsize is the same as window. If you do not specify window as an input argument, then winsize is the scalar that smoothdata2 determines heuristically based on the input data.

More About

Moving Window Size

This table illustrates the window position along each dimension for the default uniformly spaced sample points vector [1 2 3 4 5 6 7].

Description	Window Size and Location	Sample Points in Window	Diagram
For a scalar window size, the leading edge of the window is included and the trailing edge of the window is excluded.	window = 3 Current sample point = 4	3, 4, 5
	window = 4 Current sample point = 4	2, 3, 4, 5
For a vector window size, the leading edge and the trailing edge are included.	window = [2 2] Current sample point = 4	2, 3, 4, 5, 6
For sample points near the endpoints of the input data, these moving statistic smoothing methods truncate the window so it begins at the first sample point or ends at the last sample point. "movmean" "movmedian" "gaussian"	window = [2 2] Current sample point = 2	1, 2, 3, 4
For sample points near the endpoints of the input data, these local regression smoothing methods shift the window to include the first or last sample point. "lowess" "lowess" "sgolay"	window = [2 2] Current sample point = 2	1, 2, 3, 4, 5

Algorithms

When the window size for the smoothing method is not specified, smoothdata2 computes a default window size based on a heuristic. For a smoothing factor τ, the heuristic estimates a moving average window size that attenuates approximately 100*τ percent of the energy of the input data.

Version History

Introduced in R2023b
